Unequal Tee
Stainless Steel Unequal Tee, SS Unequal Tee Fittings, Carbon Steel Unequal Tee, Nickel Alloy Unequal Tee, Alloy Steel Unequal Tee, Monel Unequal Tee Pipe Fittings Manufacturer & Exporter
ASME / ANSI B16.9 Unequal Tee Buttweld Fittings Suppliers & Dealers in India
At Nakshatra Steel & Alloys, we are one of the most prominent suppliers and exporter of a wide range of quality Unequal Tee buttweld fitting in India. The Butt weld Unequal Tee manufactured using superior grade raw materials. We are known as a specialist in ANSI B16.9 Unequal Tee used to create multiple connections of pipes.
Unequal Pipe Tee is a type of fitting that has a T shape and is used to join two or more plumbing pipes. We specialize in manufacturing and export ASME B16.9 Unequal Tee that are available in various standards and customized metals, sizes, dimensions and finishes to choose from. Due to its corrosion resistance, sturdy and durable properties, these unequal tees are capable of withstanding high pressure & temperature and resisting to corrosion.
We offer includes Stainless Steel Unequal Tee Fittings, Carbon Steel Unequal Tee Fittings, Alloy Steel Unequal Tee Fittings, Aluminium Unequal Tee Fittings, Brass Steel Unequal Tee Fittings, Nickel Alloy Unequal Tee Fittings etc. at most competitive prices.
Our offered range Butt-weld Unequal Tees are widely used in wide range of industries such as power generation, shipbuilding, oil & gas, pulp and paper mills, petrochemical wastewater treatment plants, and pharmaceutical plants. These Seamless & Welded Unequal Tees conform to ANSI B 16.9 dimensional standard available in classes 2000 to 9000 and Schedules from 10 to 160. Contact us with your requirements and we assure you to offer products that meet your specific needs and demands, with an unparalleled quality and service.
Unequal Tee Specifications:
| Standards | : | ASME / ANSI - B 16.9, ASTM A403 - ASME SA403, ASME B16.9, ASME B16.25, ASME B16.28, MSS SP-43. |
| Schedule | : | Sch 5 TO Sch XXS. |
| Variations | : | Welded & Seamless |
| Sizes | : | 1/2"NB TO 48"NB IN (SEAMLESS UPTO 24”) (WELDED 8” TO 36” ) |
| Materials | : | Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30 Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type | : | Seamless / ERW / Welded / Fabricated |
| Thickness | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Dimension | : | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Buttweld Unequal Tee Material & Grades
| Stainless Steel Buttweld Unequal Tee | |
| ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 | |
| Duplex & Super Duplex Steel Buttweld Unequal Tee | |
| ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462 | |
| Carbon Steel Buttweld Unequal Tee | |
| ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. | |
| Low Temperature Carbon Steel Buttweld Unequal Tee | |
| ASTM A420 WPL3, A420 WPL6 | |
| Alloy Steel Buttweld Unequal Tee | |
| ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 | |
| Nickel Alloy Buttweld Unequal Tee | |
| ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. | |

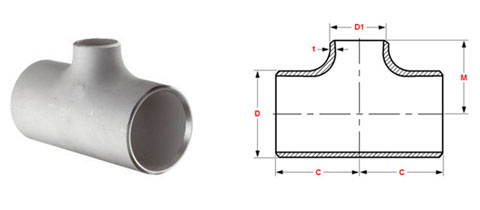

UNEQUAL TEE DIMENSIONS :
| Nominal Pipe Size | Outside diameter at bevel |
Center-to-End | |||
|---|---|---|---|---|---|
| Run | Outlet | Run | Outlet | Run (C) | Outlet (M) |
1/2" |
1/4" 3/8" |
21.3 |
13.7 17.3 |
25 |
25 |
3/4" |
3/8" 1/2" |
26.7 |
17.3 21.3 |
29 |
29 |
1" |
1/2" 3/4" |
33.4 |
21.3 26.7 |
38 |
38 |
1 1/4" |
1/2" 3/4" 1" |
42.2 |
21.3 26.7 33.4 |
48 |
48 |
1 1/2" |
1/2" 3/4" 1" 1 1/4" |
48.3 |
21.3 26.7 33.4 42.2 |
57 |
57 |
2" |
3/4" 1" 1 1/4" 1 1/2" |
60.3 |
26.7 33.4 42.2 48.3 |
64 |
44 51 57 60 |
2 1/2" |
1" 1 1/4" 1 1/2" 2" |
73.0 |
33.4 42.2 48.3 60.3 |
76 |
57 64 67 70 |
3" |
1 1/4" 1 1/2" 2" 2 1/2" |
88.9 |
42.2 48.3 60.3 73.0 |
86 |
70 73 76 83 |
3 1/2" |
1 1/2" 2" 2 1/2" 3" |
101.6 |
48.3 60.3 73.0 88.9 |
95 |
79 83 89 92 |
4" |
1 1/2" 2" 2 1/2" 3" 3 1/2" |
114.3 |
48.3 60.3 73.0 88.9 101.6 |
105 |
86 89 95 98 102 |
5" |
2" 2 1/2" 3" 3 1/2" 4" |
141.3 |
60.3 73.0 88.9 101.6 114.3 |
124 |
105 108 111 114 117 |
6" |
2 1/2" 3" 3 1/2" 4" 5 |
168.3 |
73.0 88.9 101.6 114.3 141.3 |
143 |
121 124 127 130 137 |
8" |
3 1/2" 4" 5" 6" |
219.1 |
101.6 114.3 141.3 168.3 |
178 |
152 156 162 168 |
10" |
4" 5" 6" 8" |
273.0 |
114.3 141.3 168.3 219.1 |
216 |
184 191 194 203 |
12" |
5" 6" 8" 10" |
323.8 |
141.3 168.3 219.1 273.0 |
254 |
216 219 229 241 |
14" |
6" 8" 10" 12" |
355.6 |
168.3 219.1 273.0 323.8 |
279 |
238 248 257 270 |
16" |
6" 8" 10" 12" 14" |
406.4 |
168.3 219.1 273.0 323.8 355.6 |
305 |
264 273 283 295 305 |
18" |
8" 10" 12" 14" 16" |
457.0 |
219.1 273.0 323.8 355.6 406.4 |
343 |
298 308 321 330 330 |
20" |
8" 10" 12" 14" 16" 18" |
508.0 |
219.1 273.0 323.8 355.6 406.4 457.0 |
381 |
324 333 346 356 356 368 |
22" |
10" 12" 14" 16" 18" 20" |
559.0 |
273.0 323.8 355.6 406.4 457.0 508.0 |
419 |
359 371 381 381 394 406 |
24" |
10" 12" 14" 16" 18" 20" 22" |
610.0 |
273.0 323.8 355.6 406.4 457.0 508.0 559.0 |
432 |
384 397 406 406 419 432 432 |
