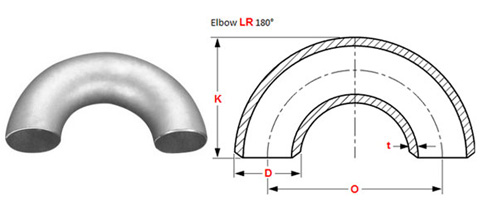

180 Degree Long Radius Elbow
Stainless Steel 180 Deg. Long Radius Elbow, Carbon Steel 180 Degree Long Radius Elbow, Alloy Steel 180 Degree Long Radius Elbow, Nickel Alloy 180 Deg. Long Radius Elbow Manufacturer & Supplier
ANSI/ASME B16.9 180 Degree Long Radius Elbow / LR Elbow Dealer & Exporter in India
At Nakshatra Steel & Alloys, we are global leader manufacturer and supplier, stockist of the highest quality 180 Degree long Radius Elbow in India. We offer large diameter and high tensile 180-degree long Radius Elbow which are manufactured using best in class raw materials. We also deliver personalized ASME B16.9 180 Degree Long Radius Elbow as per specifications provided by our clients.
An elbow is a pipe fitting employed between two lengths of pipe or tubing to connect pipes and change of direction, these elbows may be machined for butt welding (BW) or socketed welding (SW) etc. The 180 Degree long Radius Elbow find wide applications in various fields such as chemical, construction, Power Plant, Cement, Paper, etc.
A wide range of material is being used at our facility to produce and design 180° Long Radius Elbow which commonly includes Carbon Steel, Alloy Steel, Nickel Alloy, Aluminium and Stainless Steel 180 Degree Long Radius Elbow and many more to be installed in various industrial applications.
Our ANSI B16.9 180 Degree long Radius Elbow is corrosion resistance, sturdy and durable. Contact us with your requirements and we assure you to offer products that meet your specific needs and demands, with an unparalleled quality and service.
Buttweld 180 Degree Long Radius Elbow Fittings Specifications:
| Standard - ANSI/ASME | : | ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43. |
| DIN | : | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN | : | EN10253-1, EN10253-2 |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | : | Seamless / ERW / Welded / Fabricated |
| Seamless 180 Degree Long Radius Elbow Size | : | 1/2"~24" |
| ERW / Welded / Fabricated 180 Degree Long Radius Elbow Size | : | 1/2" (15 NB) to 48" (1200NB) |
| Form | : | 180 Degree Long Radius Elbow |
Buttweld 180 Degree Long Radius Elbow Material & Grades
| Stainless Steel 180 Deg. Long Radius Elbow | |
| ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L | |
| Carbon Steel 180 Degree Long Radius Elbow | |
| ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. | |
| Alloy Steel 180 Degree Long Radius Elbow | |
| ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 | |
| Duplex Steel 180 Deg. Long Radius Elbow | |
| ASTM A815, ASME SA815 UNS No S31803, S32205 | |
| Super Duplex 180 Degree Long Radius Elbow | |
| ASTM A815, ASME SA815 UNS No S32750, S32950 | |
| Nickel Alloy 180 Deg. Long Radius Elbow | |
| ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. | |
| Low Temperature Carbon Steel 180 Degree Long Radius Elbow | |
| ASTM A420 WPL3, A420 WPL6 | |
PIPE FITTING 180 DEGREE LONG RADIUS ELBOW DIMENSIONS :
Nom.
Pipe
Size |
Pipe
Sched.
or No. |
Center-
to-Center
Dimen. |
Back-
to-
Face |
Outside
Dia. |
Inside
Dia. |
Wall
Thick. |
Approx.
Weight
(lb.) |
| H | J | OD | ID | T | |||
| STANDARD WEIGHT | |||||||
| 1/2 | 40 | 3 | 1 7/8 | 0.840 | 0.622 | 0.109 | 0.3 |
| 3/4 | 40 | 2 1/2 | 1 11/16 | 1.050 | 0.824 | 0.113 | 0.3 |
| 1 | 40 | 3 | 2 3/16 | 1.315 | 1.049 | 0.133 | 0.7 |
| 1 1/4 | 40 | 3 3/4 | 2 3/4 | 1.660 | 1.380 | 0.140 | 1 |
| 1 1/2 | 40 | 4 1/2 | 3 1/4 | 1.900 | 1.610 | 0.145 | 1.5 |
| 2 | 40 | 6 | 4 3/16 | 2.375 | 2.067 | 0.154 | 3 |
| 2 1/2 | 40 | 7 1/2 | 5 3/16 | 2.875 | 2.469 | 0.203 | 6 |
| 3 | 40 | 9 | 6 1/4 | 3.500 | 3.068 | 0.216 | 9 |
| 3 1/2 | 40 | 10 1/2 | 7 1/4 | 4.000 | 3.548 | 0.226 | 12 |
| 4 | 40 | 12 | 8 1/4 | 4.500 | 4.026 | 0.237 | 17 |
| 5 | 40 | 15 | 10 5/16 | 5.563 | 5.047 | 0.258 | 28 |
| 6 | 40 | 18 | 12 5/16 | 6.625 | 6.065 | 0.280 | 46 |
| 8 | 40 | 24 | 16 5/16 | 8.625 | 7.981 | 0.322 | 90 |
| 10 | 40 | 30 | 20 3/8 | 10.750 | 10.020 | 0.365 | 156 |
| 12 | - | 36 | 24 3/8 | 12.750 | 12.000 | 0.375 | 236 |
| 14 | 30 | 42 | 28 | 14.000 | 13.250 | 0.375 | 294 |
| 16 | 30 | 48 | 32 | 16.000 | 15.250 | 0.375 | 404 |
| 18 | - | 54 | 36 | 18.000 | 17.250 | 0.375 | 512 |
| 20 | 20 | 60 | 40 | 20.000 | 19.250 | 0.375 | 617 |
| 24 | 20 | 72 | 48 | 24.000 | 23.250 | 0.375 | 886 |
| EXTRA STRONG | |||||||
| 1/2 | 80 | 3 | 1 7/8 | 0.840 | 0.546 | 0.147 | 0.5 |
| 3/4 | 80 | 2 1/2 | 1 11/16 | 1.050 | 0.742 | 0.154 | 0.5 |
| 1 | 80 | 3 | 2 3/16 | 1.315 | 0.957 | 0.179 | 1 |
| 1 1/4 | 80 | 3 3/4 | 2 3/4 | 1.660 | 1.278 | 0.191 | 1.5 |
| 1 1/2 | 80 | 4 1/2 | 3 1/4 | 1.900 | 1.500 | 0.200 | 2 |
| 2 | 80 | 6 | 4 3/16 | 2.375 | 1.939 | 0.218 | 4 |
| 2 1/2 | 80 | 7 1/2 | 5 3/16 | 2.875 | 2.323 | 0.276 | 7.5 |
| 3 | 80 | 9 | 6 1/4 | 3.500 | 2.900 | 0.300 | 12 |
| 3 1/2 | 80 | 10 1/2 | 7 1/4 | 4.000 | 3.364 | 0.318 | 17 |
| 4 | 80 | 12 | 8 1/4 | 4.500 | 3.826 | 0.337 | 23 |
| 5 | 80 | 15 | 10 5/16 | 5.563 | 4.813 | 0.375 | 40 |
| 6 | 80 | 18 | 12 5/16 | 6.625 | 5.761 | 0.432 | 67 |
| 8 | 80 | 24 | 16 5/16 | 8.625 | 7.625 | 0.500 | 138 |
| 10 | 60 | 30 | 20 3/8 | 10.750 | 9.750 | 0.500 | 215 |
| 12 | - | 36 | 24 3/8 | 12.750 | 11.750 | 0.500 | 300 |
| 14 | - | 42 | 28 | 14.000 | 13.000 | 0.500 | 376 |
| 16 | 40 | 48 | 32 | 16.000 | 15.000 | 0.500 | 524 |
| 18 | - | 54 | 36 | 18.000 | 17.000 | 0.500 | 676 |
| 20 | 30 | 60 | 40 | 20.000 | 19.000 | 0.500 | 824 |
| 24 | - | 72 | 48 | 24.000 | 20.000 | 0.500 | 1183 |
Call +91 9833263204 or Click here to send enquiry for 180 Degree Long Radius Elbow
180° Long Radius Elbow Buttweld Fitting Exporters & Suppliers
Exporting 180° Long Radius Elbow Buttweld Fitting to Countries
We are exporting 180° Long Radius Elbow Buttweld Fitting to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying 180° Long Radius Elbow Buttweld Fitting to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
