Equal Tee
Stainless Steel Equal Tee, SS Equal Tee Fittings, Carbon Steel Equal Tee, Nickel Alloy Equal Tee, Alloy Steel Equal Tee, Monel Equal Tee Pipe Fittings Manufacturer & Exporter
ASME / ANSI B16.9 Equal Tee Buttweld Fittings Suppliers & Dealers in India
At Nakshatra Steel & Alloys, we are one of the most prominent suppliers and exporter of a wide range of quality Equal Tee buttweld fitting in India. The Butt weld Equal Tee manufactured using superior grade raw materials. We are known as a specialist in ANSI B16.9 Equal Tee used to create multiple connections of pipes.
We specialize in manufacturing and export ASME B16.9 Equal Tee that are available in various standards and customized metals, sizes, dimensions and finishes to choose from. Due to its corrosion resistance, sturdy and durable properties, these equal tees are capable of withstanding high pressure & temperature and resisting to corrosion.
We offer includes Stainless Steel Equal Tee Fittings, Carbon Steel Equal Tee Fittings, Alloy Steel Equal Tee Fittings, Aluminium Equal Tee Fittings, Brass Steel Equal Tee Fittings, Nickel Alloy Equal Tee Fittings etc. at most competitive prices.
Our offered range Butt-weld Equal Tees are widely used in wide range of industries such as power generation, shipbuilding, oil & gas, pulp and paper mills, petrochemical wastewater treatment plants, and pharmaceutical plants. These seamless & welded equal tees conform to ANSI B 16.9 dimensional standard available in classes 2000 to 9000 and Schedules from 10 to 160. Contact us with your requirements and we assure you to offer products that meet your specific needs and demands, with an unparalleled quality and service.
Buttweld Equal Tee Specifications:
| Standards | : | ANSI – B 16.9, ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’, ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”, ASME B16.25 – ‘Buttwelding Ends’, ASME B16.25 – ‘Buttwelding Ends’, MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’ |
| Schedule | : | Sch 5 TO Sch XXS. |
| Variations | : | Welded & Seamless |
| Sizes | : | 1/2"NB TO 48"NB IN / 1/2” TO 36”, (SEAMLESS UPTO 24”), (WELDED 8” TO 36” ) |
| Materials | : | Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type | : | Butt Weld (BW) / Seamless / ERW / Welded / Fabricated |
| Thickness | : | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension | : | Outside diameter : 1/2" à 24", (21,34 – 609,5 mm), Thickness : SCH 5S, 10S, 40S (STD), 80S (XS), 160, XXS, (1,65 – 59.51 mm) |
Buttweld Equal Tee Material & Grades
| Stainless Steel Buttweld Equal Tee | |
| ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 | |
| Duplex & Super Duplex Steel Buttweld Equal Tee | |
| ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462 | |
| Carbon Steel Buttweld Equal Tee | |
| ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. | |
| Low Temperature Carbon Steel Buttweld Equal Tee | |
| ASTM A420 WPL3, A420 WPL6 | |
| Alloy Steel Buttweld Equal Tee | |
| ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 | |
| Nickel Alloy Buttweld Equal Tee | |
| ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. | |

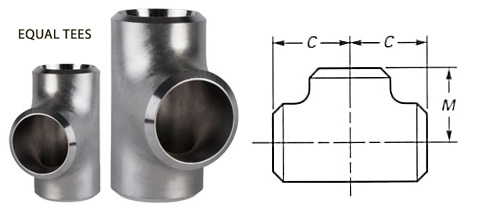

PIPE EQUAL TEE DIMENSIONS :
| Nominal Pipe Size | Outside diameter at bevel |
Center-to-End | |
|---|---|---|---|
| Run (C) | Outlet(M) | ||
| 1/2" | 21.3 | 25 | 25 |
| 3/4" | 26.7 | 29 | 29 |
| 1" | 33.4 | 38 | 38 |
| 1 1/4" | 42.2 | 48 | 48 |
| 1 1/2" | 48.3 | 57 | 57 |
| 2" | 60.3 | 64 | 64 |
| 2 1/2" | 73.0 | 76 | 76 |
| 3" | 88.9 | 86 | 86 |
| 3 1/2" | 101.6 | 95 | 95 |
| 4" | 114.3 | 105 | 105 |
| 5" | 141.3 | 124 | 124 |
| 6" | 168.3 | 143 | 143 |
| 8" | 219.1 | 178 | 178 |
| 10" | 273.0 | 216 | 216 |
| 12" | 323.8 | 254 | 254 |
| 14" | 355.6 | 279 | 279 |
| 16" | 406.4 | 305 | 305 |
| 18" | 457.0 | 343 | 343 |
| 20" | 508.0 | 381 | 381 |
| 22" | 559.0 | 419 | 419 |
| 24" | 610.0 | 432 | 432 |
Call +91 9833263204 or Click here to send enquiry for Equal Tee
Equal Tee Buttweld Fitting Exporters & Suppliers
Exporting Equal Tee Buttweld Fitting to Countries
We are exporting Equal Tee Buttweld Fitting to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying Equal Tee Buttweld Fitting to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
