Pipe Cap Fittings
Stainless Steel Pipe Cap, SS Pipe End Caps, Carbon Steel Square Pipe End Cap, Nickel Alloy Pipe End Cap, Alloy Steel Pipe Cap, Monel Pipe End Cap Manufacturer & Exporter
ASME / ASTM B16.9 Buttweld Pipe End Cap Suppliers & Dealers in India
Nakshatra Steel & Alloys is one of the leading Supplier and exporter of a wide range of quality Pipe Cap as a product of pipe fittings in India. Pipe End Cap manufactured using superior grade raw materials. We are known as specialist in ASME B16.9 Butt-weld Pipe Cap. We also manufacture customized ANSI/ASME B16.9 Butt weld Pipe Cap as per the client’s specifications.
A pipe fitting that covers the end of a pipe is called butt-weld pipe cap. It has female threads so it can screw on to the male end of the pipe. Butt-weld caps are readily available at Nakshatra Steel & Alloys with variety of sizes and standards like ASTM A403, ANSI/ASME B16.9, etc. to fit on almost any stainless steel pipe system. Our Stainless Steel butt-weld cap schedules include: S/5, S/10, S/40, S/80, etc.
The range we offer includes Stainless Steel Butt-weld Pipe Cap, Carbon Steel Butt-weld Pipe Cap, Alloy Steel Butt-weld Pipe Cap, etc. Our ASME B16.11 Threaded Pipe Cap & other fitting products are manufactured using high quality material and go through a rigorous quality check at all stages of production to ensure quality. Our all types of pipe fittings products are compliance with international quality standards, these ANSI/ASME B16.9 Butt-weld Pipe Cap are corrosion resistance, and durable sturdy
We offer to our client’s third party inspection of ANSI B16.9 Butt-weld Pipe End Cap from reputed agencies such as EIL, H&G, LLOYDS, TCE, MECONS, PDIL, Bureau Veritas, DNV, DPG, SGS, IRS, etc. This Butt-weld Pipe Cap have many industrial applications which include power generation, petrochemical plants, shipbuilding, oil refineries, paper mills, waste water treatment plants, and pharmaceutical plants. We take necessary measures to ensure safe transit. Contact us with your requirements and we assure you to offer products that meets your specific needs and demands, with an unparalleled quality and service.
Buttweld Pipe Cap Specifications:
| Standards | : | ANSI – B 16.9, ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’, API 590-605, ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings”, ASME B16.25 – ‘Buttwelding Ends’, ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’, MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| Schedule | : | Sch 5 TO Sch XXS. |
| Sizes | : | 1/2" (15 NB) to 48" (1200NB), Outside diameter : 1/2" à 24" (21,34 – 609,5 mm), Thickness : SCH 5S, 10S, 40S (STD), 80S (XS), 160, XXS (1,65 – 59.51 mm) |
| Materials | : | Monel, Nickel, Inconel, Hastalloy, Titanium, Tantalum, Stainless Steel, Alloy Steel, Carbon Steel, Cupro-Nickel 90/10 & 70/30, Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Type | : | Butt Weld (BW) / Welded / ERW / Welded / Fabricated |
| Thickness | : | Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc. |
| Dimension | : | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
Buttweld Pipe Cap Material & Grades
| Stainless Steel End Cap | |
| ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 | |
| Duplex / Super Duplex Steel End Cap | |
| ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462 | |
| Carbon Steel End Cap | |
| ASTM A234, ASME SA234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 | |
| Low Temperature Carbon Steel End Cap | |
| ASTM A420 WPL3, A420 WPL6 | |
| Alloy Steel End Cap | |
| ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 | |
| Nickel Alloy End Cap | |
| ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. | |
PIPE CAP DIMENSIONS :
| Nominal Pipe Size | Outside diameter at bevel |
Length(E) | Limitwall thickness |
| 1/2" | 21.3 | 25 | 4.57 |
| 3/4" | 26.7 | 25 | 3.81 |
| 1" | 33.4 | 38 | 4.57 |
| 1 1/4" | 42.2 | 38 | 4.83 |
| 1 1/2" | 48.3 | 38 | 5.08 |
| 2" | 60.3 | 38 | 5.59 |
| 2 1/2" | 73.0 | 38 | 7.11 |
| 3" | 88.9 | 51 | 7.62 |
| 3 1/2" | 101.6 | 64 | 8.13 |
| 4" | 114.3 | 64 | 8.64 |
| 5" | 141.3 | 76 | 9.65 |
| 6" | 168.3 | 89 | 10.92 |
| 8" | 219.1 | 102 | 12.70 |
| 10" | 273.0 | 127 | 12.70 |
| 12" | 323.8 | 152 | 12.70 |
| 14" | 355.6 | 165 | 12.70 |
| 16" | 406.4 | 178 | 12.70 |
| 18" | 457.0 | 203 | 12.70 |
| 20" | 508.0 | 229 | 12.70 |
| 22" | 559.0 | 254 | 12.70 |
| 24" | 610.0 | 267 | 12.70 |

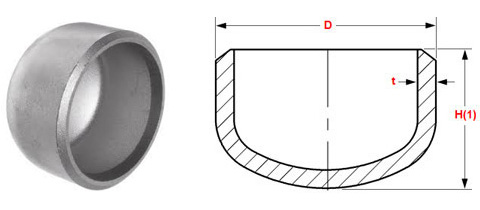

ANSI 16.9 DIMENSIONS BUTTWELD CAPS
| inches | mm | Height | |
| D | E | ||
| 1/2 | 15 | 21,34 | 25,40 |
| 3/4 | 20 | 26,67 | 31,75 |
| 1" | 25 | 33,40 | 38,10 |
| 1 1/4 | 32 | 42,16 | 38,10 |
| 1 1/2 | 40 | 48,26 | 38,10 |
| 2 | 50 | 60,32 | 38,10 |
| 2 1/2 | 65 | 73,02 | 38,10 |
| 3 | 80 | 88,90 | 50,80 |
| 3 1/2 | 90 | 101,60 | 63,50 |
| 4 | 100 | 114,30 | 63,50 |
| 5 | 125 | 141,30 | 76,20 |
| 6 | 150 | 168,27 | 88,90 |
| 8 | 200 | 219,07 | 101,60 |
| 10 | 250 | 273,05 | 127,00 |
| 12 | 300 | 323,85 | 152,40 |
| 14 | 350 | 355,60 | 165,10 |
| 16 | 400 | 406,40 | 177,80 |
| 18 | 450 | 457,20 | 203,20 |
| 20 | 500 | 508,00 | 228,60 |
| 22 | 550 | 558,80 | 254,00 |
| 24 | 600 | 609,60 | 266,70 |
| 28 | 700 | 711,20 | 266,70 |
| Dimension in mm | |||
Call +91 9833263204 or Click here to send enquiry for Pipe Cap
Pipe Cap Buttweld Fitting Exporters & Suppliers
Exporting Pipe Cap Buttweld Fitting to Countries
We are exporting Pipe Cap Buttweld Fitting to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying Pipe Cap Buttweld Fitting to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
