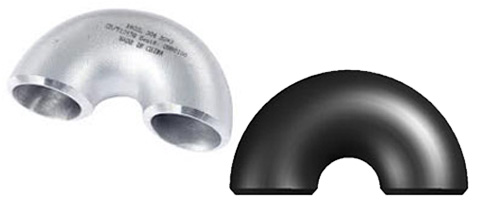

180 Degree Short Radius Elbow
Stainless Steel 180 Deg. Short Radius Elbow, Carbon Steel 180 Degree Short Radius Elbow, Alloy Steel 180 Degree Short Radius Elbow, Nickel Alloy 180 Deg. Short Radius Elbow Manufacturer & Supplier
ANSI/ASME B16.9 180 Deg. Short Radius Elbow / SR Elbow Dealer & Exporter in India
At Nakshatra Steel & Alloys, we are global leader manufacturer and supplier, stockist of the highest quality 180 Degree Long Radius Elbow in India. We offer large diameter and high tensile 180° long Radius Elbow which are manufactured using best in class raw materials. We also deliver personalized ASME B16.9 180 Degree Long Radius Elbow as per specifications provided by our clients.
An elbow is a pipe fitting employed between two lengths of pipe or tubing to connect pipes and change of direction, these elbows may be machined for butt welding (BW) or socketed welding (SW) etc. The Stainless Steel 180 Degree Long Radius Elbow find wide applications in various fields such as chemical, construction, Power Plant, Cement, Paper, etc.
A wide range of material is being used at our facility to produce and design 180° Long Radius Elbow which commonly includes Stainless Steel, Carbon Steel, Alloy Steel, Nickel Alloy, Aluminium and many more to be installed in various industrial applications.
Our ANSI B16.9 180 Degree Long Radius Elbow is corrosion resistance, sturdy and durable. Contact us with your requirements and we assure you to offer products that meet your specific needs and demands, with an unparalleled quality and service.
Buttweld 180 Degree Short Radius Elbow Fittings Specifications:
| Standard - ANSI/ASME | : | ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43. |
| DIN | : | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN | : | EN10253-1, EN10253-2 |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | : | Seamless / ERW / Welded / Fabricated |
| Seamless 180 Degree Short Radius Elbow Size | : | 1/2"~24" |
| ERW / Welded / Fabricated 180 Degree Short Radius Elbow Size | : | 1/2" (15 NB) to 48" (1200NB) |
| Form | : | 180 Degree Short Radius Elbow |
Buttweld 180 Degree Short Radius Elbow Material & Grades
| Stainless Steel 180 Deg. Short Radius Elbow | |
| ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L | |
| Carbon Steel 180 Degree Short Radius Elbow | |
| ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. | |
| Alloy Steel 180 Degree Short Radius Elbow | |
| ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 | |
| Duplex Steel 180 Deg. Short Radius Elbow | |
| ASTM A815, ASME SA815 UNS No S31803, S32205 | |
| Super Duplex 180 Degree Short Radius Elbow | |
| ASTM A815, ASME SA815 UNS No S32750, S32950 | |
| Nickel Alloy 180 Deg. Short Radius Elbow | |
| ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. | |
| Low Temperature Carbon Steel 180 Degree Short Radius Elbow | |
| ASTM A420 WPL3, A420 WPL6 | |

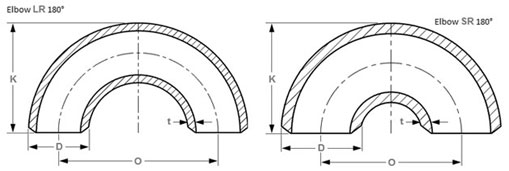

PIPE FITTING 180 DEGREE SHORT RADIUS ELBOW DIMENSIONS :
| NPS | O.D. D |
180° Long Radius | 180° Short Radius | ||
| Center to Center O |
Back to Face K |
Center to Center O |
Back to Face K |
||
| 1/2 | 21.3 | 76 | 48 | - | - |
| 3/4 | 26.7 | 76 | 51 | - | - |
| 1 | 33.4 | 76 | 56 | 51 | 41 |
| 1¼ | 42.2 | 95 | 70 | 64 | 52 |
| 1½ | 48.3 | 114 | 83 | 76 | 62 |
| 2 | 60.3 | 152 | 106 | 102 | 81 |
| 2½ | 73 | 190 | 132 | 127 | 100 |
| 3 | 88.9 | 229 | 159 | 152 | 121 |
| 3½ | 101.6 | 267 | 184 | 178 | 140 |
| 4 | 114.3 | 305 | 210 | 203 | 159 |
| 5 | 141.3 | 381 | 262 | 254 | 197 |
| 6 | 168.3 | 457 | 313 | 305 | 237 |
| 8 | 219.1 | 610 | 414 | 406 | 313 |
| 10 | 273 | 762 | 518 | 508 | 391 |
| 12 | 323.8 | 914 | 619 | 610 | 467 |
| 14 | 355.6 | 1067 | 711 | 711 | 533 |
| 16 | 406.4 | 1219 | 813 | 813 | 610 |
| 18 | 457 | 1372 | 914 | 914 | 686 |
| 20 | 508 | 1524 | 1016 | 1016 | 762 |
| 22 | 559 | 1676 | 1118 | 1118 | 838 |
| 24 | 610 | 1829 | 1219 | 1219 | 914 |
