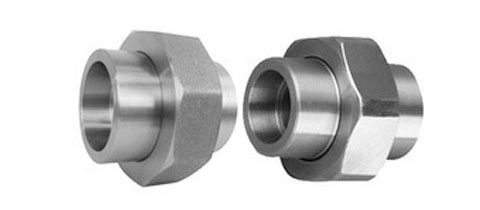

Socket Weld Union
ASME B 16.11 / ANSI B16.9 Socket Weld Union, MSS SP-43 Forged Socket Weld Union, BS3799 Threaded Socket Weld Union Manufacturer & Supplier in Mumbai, India
ANSI B16.11 Socket Weld Union Exporter, ASTM A182 Socket Weld Union Fittings, Socket Weld Pipe Union Dealers & Exporters
Nakshatra Steel is one of the leading Manufacturers, Supplier and Exporters of High-quality Socket Weld Union that are available in Class 2,000, 3,000 and 6,000 for sale to our esteemed clients. These socket weld pipe union fittings are produced by us that conforms to ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 international standards for your most demanding applications.
We specialize in offering these Forged Socket Weld Union in various materials including stainless steel socket weld Union, brass socket weld Union, carbon steel socket weld Union, nickel alloys socket weld Union, alloy steel socket weld Union and others.
These socket weld union sizes are ranging from 1/2"NB TO 4" NB IN which can be accessed as per customer specification or project requirement. These socket weld pipe union is widely used in used in many low-pressure corrosive piping applications.
We offer these Socket Weld Pipe Union Fittings are in various specifications in order to meet the diversified requirements of the customers. Stainless Steel Forged Socket Weld Union is often used for Shipping Industry, Tannery Equipment Industry, Automobiles Industry, Acoustic & Sound Proof, Construction Industry, Applications, Refineries, Textile Machinery Industry, Pump & Valves Industry, etc. Call us now for more info.
ASTM A182 Stainless Steel Socket Weld Union, ANSI B16.9 Alloy Steel Socket Weld Union, Carbon Steel Socket Weld Pipe Union, Nickel Alloy Socket Weld Union Stockholder & Wholesaler in India
Specifications for Socket Weld Union
| Standard | : | ASTM A182, ASTM SA182 |
| Dimension | : | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | : | 1/8" NB TO 4" NB |
| Class | : | 2000 LBS, 3000 LBS, 6000 LBS |
| Type | : | Socket Weld Fitting Union |
Material & Grades of Socket Weld Union
| Stainless Steel Socket Weld Union Fittings |
| ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L |
| Carbon Steel Socket Weld Union Fittings |
| ASTM A105, A350 LF2, A106 Gr.B, A234 WPB |
| Alloy Steel Socket Weld Union Fittings |
| ASTM / ASME A182, ASTM / ASME A335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91 |
| Nickel Alloy Socket Weld Union Fittings |
| ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Copper Nickel (Cupro-Nickel 90/10 & 70/30). |
| Duplex & Super Duplex Steel Socket Weld Union Fittings |
| ASTM/ASME A182 / SA182, A790 / SA790 UNS No S31803, S32205, S32750, S32950 |
| Low Temperature Carbon Steel Socket Weld Union |
| ASTM/ASME A420 SA/420 WPL3, WPL6 |

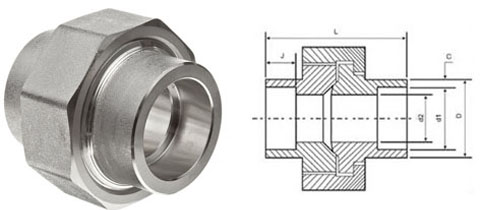

Socket Weld Union Dimensions
 |
|||||||||
| Nominal Diameter | Outside Diameter |
Wall Thickness |
Socket Bore |
Water way Bore |
Depth of Socket |
Length Assem Nominal |
|||
| Dmin | Cmin | d1 | d2 | Jmin | L | ||||
| DN | NPS | Socket | Threaded | Socket | Threaded | Socket | Socket & Threaded |
Socket | Socket & Threaded |
| 6 | 1/8 | 21.8 | 14.7 | 3.2 | 2.5 | 10.65 | 6.43 | 10 | 41.4 |
| 8 | 1/4 | 21.8 | 19.0 | 3.3 | 3.1 | 14.10 | 9.45 | 10 | 41.4 |
| 10 | 3/8 | 25.9 | 22.9 | 3.5 | 3.2 | 17.55 | 13.51 | 10 | 46.0 |
| 15 | 1/2 | 31.2 | 27.7 | 4.1 | 3.8 | 21.70 | 17.07 | 10 | 49.0 |
| 20 | 3/4 | 37.1 | 33.5 | 4.3 | 4.0 | 27.05 | 21.39 | 13 | 56.9 |
| 25 | 1 | 45.5 | 41.4 | 5.0 | 4.6 | 33.80 | 27.74 | 13 | 62.0 |
| 32 | 11/4 | 54.9 | 50.5 | 5.3 | 4.9 | 42.55 | 35.36 | 13 | 71.1 |
| 40 | 11/2 | 61.5 | 57.2 | 5.6 | 5.1 | 48.65 | 41.20 | 13 | 76.5 |
| 50 | 2 | 75.2 | 70.1 | 6.1 | 5.6 | 61.10 | 52.12 | 16 | 86.1 |
| 65 | 21/2 | 91.7 | 85.3 | 7.7 | 7.1 | 73.80 | 64.31 | 16 | 102.4 |
| 80 | 3 | 109.2 | 102.4 | 8.4 | 7.7 | 89.80 | 77.27 | 16 | 109.0 |
Types of Socket Weld Union
| Forged Socket weld Union | Forged Socket weld Equal Union |
| 150 lb. Socket Weld Fittings Union | Socket weld Forged Equal Union |
| ASME B16.11 Socket weld Union | Forged Union 3000LB Socket Weld |
| Stainless Steel Equal Union Suppliers | SS Forged Socket weld Equal Union |
| ANSI B16.11 Forged Socket weld Union Dealer | BS 3799 Forged Equal Union Exporter |
| Forged Socket weld Union Stockholder | Socket weld Forged Union Distributors |
| Carbon Steel Socket weld Equal Union | High Quality Socket weld Union Manufacturer |
| ASTM A182 Socket weld Stainless Steel Union | Duplex Steel Socket weld Equal Union |
| Super Duplex Steel Equal Union | Copper Nickel Socket weld Equal Union |
| High Nickel Alloy 45° Forged Socket weld Union | Hastelloy Socket weld 45° Union Stockist |
| Titanium Socket weld Union | Inconel Socket weld Union |
Call +91 9833263204 or Click here to send enquiry for Socket Weld Union
Socket Weld Union Exporters & Suppliers
Exporting Socket Weld Union to Countries
We are exporting Socket Weld Union to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying Socket Weld Union to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
