Socket Weld Tee

Socket Weld Tee

ASME B 16.11 / ANSI B16.9 Socket Weld Tee, MSS SP-43 Forged Socket Weld Tee, BS3799 Threaded Socket Weld Tee Manufacturer & Supplier in Mumbai, India

ANSI B16.11 Socket Weld Tee Exporter, ASTM A182 Socket Weld Equal Tee, Socket Weld Unequal Tee, Socket Weld Pipe Tee Dealers & Exporters

Nakshatra Steel is one of the utmost manufacturer, exporter, stockist and supplier of Socket Weld Tee based in Mumbai, India. We are engaged in offering Socket Weld Tee Fittings that being designed from outstanding quality steel and contemporary technology.

Our offered range of socket weld tees fittings have a huge demand among across all the countries. These Forged Socket Weld Tees are available to our valuable customers in different range of diameters, wall thicknesses and sizes in customized form and also at market leading price range.

Moreover, we are specialized in offering premium grade Stainless Steel Socket Weld Tee, Inconel Socket Weld Tee, Carbon Steel Socket Weld Tee, and Alloy Steel Socket Weld Tee and many more at very reasonable rate than other companies.

Also, these socket weld tee features great resistant to corrosion, high tensile strength, impeccable finish and accurate dimension. ASME B16.11 Socket Weld Tee has excellent resistance to chloride-ion stress-corrosion cracking, and as well shows appropriate resistance to a number of oxidizing environments. ANSI B16.11 Socket Weld Tee is very much resistant to chemical corrosion and oxidation, and has some high stress-rupture effectiveness and low creep rates under high stresses at temperatures after suitable heat treatment. Call us now to request a free quote; we are here to help you!

ASTM A182 Stainless Steel Socket Weld Pipe Tee, Alloy Steel Socket Weld Pipe Tee, Carbon Steel Socket Weld Pipe Tee, Nickel Alloy Socket Weld Tee Dealer & Wholesaler in India.

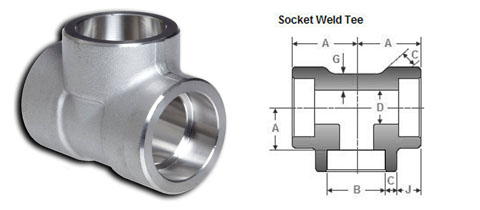

Socket Weld Tee

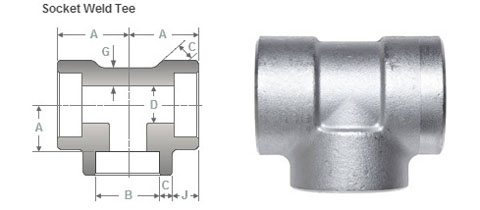

SS Socket Weld Tee

Specifications for Socket Weld Tee

Specifications : ASTM A182, ASTM SA182
Dimension : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size : 1/8" NB TO 4" NB
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Range : Reducing Tee, Unequal Tee, Equal Tee, Forged Tee, Cross Tee.
Type : Socket Weld (S/W) & Screwed (SCRD)
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Material & Grades of Socket Weld Tee

Stainless Steel Tee Socket Weld Fittings
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Tee Socket Weld Fittings
ASTM A105/A694/ Gr F42/46/52/56/60/65/70
Alloy Steel Tee Socket Weld Fittings
ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91
Nickel Alloy Tee Socket Weld Fittings
ASTM / ASME SB 564 / 160 / 472- UNS 10276 (HASTELLOY C 276 Forged Tee ), UNS 2200 (NICKEL 200 Forged Tee ), UNS 2201 (NICKEL 201 Forged Tee ), UNS 4400 (MONEL 400 Forged Tee), UNS 8020 (ALLOY 20 Forged Tee ), UNS 8825 INCONEL 825 Forged Tee ), UNS 6600 (INCONEL 600 Forged Tee ), UNS 6601 (INCONEL 601 Forged Tee ), UNS 6625 (INCONEL 625 Forged Tee)
Duplex & Super Duplex Steel Tee Socket Weld Fittings
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Copper Alloy Steel Tee Socket Weld Fittings
ASTM / ASME SB 61 / 62 / 151 / 152. C 70600 (CU -NI- 90/10) – Cupro Nickel, C 71500 (CU -NI- 70/30) – Copper Nickel, UNS NO. C 92200, UNS NO. C 83600, UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200

ANSI 16.9 Socket Weld Tee Dimensions

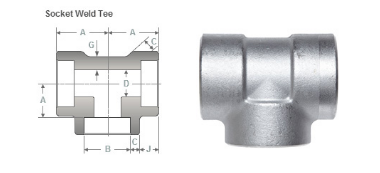

Socket Weld Tee Dimensions
NPS Socket
Bore		 Depth
Socket		 Bore
diameter		 Socket
wall thickness		 Body
wall thickness		 Center to bottom
of socket
B J D C G A
1/2 21.95
21.70		 10 16.6
15		 4.65
4.10		 3.75 15.5
3/4 27.30
27.05		 13 21.7
20.2		 4.90
4.25		 3.90 19.5
1 34.05
33.80		 13 27.4
25.9		 5.70
5.00		 4.55 22
1¼ 42.80
42.55		 13 35.8
34.3		 6.05
5.30		 4.85 27
1½ 48.90
48.65		 13 41.7
40.1		 6.35
5.55		 5.10 32
2 61.35
61.10		 16 53.5
51.7		 6.95
6.05		 5.55 38
2½ 74.20
73.80		 16 64.2
61.2		 8.75
7.65		 7.00 41.5
3 90.15
89.80		 16 79.5
46.4		 9.50
8.30		 7.60 57.5
4 115.80
115.45		 19 103.8
100.7		 10.70
9.35		 8.55 66.5

Dimensions Socket Weld Tees - NPS 1/2 to 2 - 6000 LBS - ASME B16.11

NPS Socket
Bore		 Depth
Socket		 Bore
diameter		 Socket
wall thickness		 Body
wall thickness		 Center to bottom
of socket
B J D C G A
1/2 21.95
21.70		 10 12.5
11		 5.95
5.20		 4.80 19.5
3/4 27.30
27.05		 13 16.3
14.8		 6.95
6.05		 5.55 22.5
1 34.05
33.80		 13 21.5
19.9		 7.90
6.95		 6.35 27
1¼ 42.80
42.55		 13 30.2
28.7		 7.90
6.95		 6.35 32
1½ 48.90
48.65		 13 34.7
33.2		 8.90
7.80		 7.15 38
2 61.35
61.10		 16 43.6
42.1		 10.90
9.50		 8.75 41

Types of Socket Weld Tee

Forged Socket weld Tee Forged Socket weld Tees
150 lb. Socket Weld Fittings Pipe Tee Socket weld Short Radius Tee
ASME B16.11 Socket weld Tee Tee 3000LB Socket Weld
Stainless Steel Pipe Tee Suppliers SS Forged Tees
ANSI B16.11 Forged Tee Dealer BS 3799 Forged Tee Exporter
Forged Socket weld Tee Stockholder Socket weld 45° Pipe Tee Distributors
Carbon Steel Socket weld 45deg.Tee High Quality Socket weld 45° Tee Manufacturer
ASTM A182 Socket weld Stainless Steel Tees Duplex Steel 45° Socket weld Pipe Tee
Super Duplex Steel Tee Copper Nickel Socket weld Tee
High Nickel Alloy 45° Forged Socket weld Tee Hastelloy Socket weld 45° Pipe Tee Stockist
Titanium Socket weld Tee Inconel Socket weld Pipe Tee

Call +91 9833263204 or Click here to send enquiry for Socket Weld Tee

Socket Weld Tee Exporters & Suppliers

Exporting Socket Weld Tee to Countries

We are exporting Socket Weld Tee to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.

Industries We Serve

We are supplying Socket Weld Tee to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
