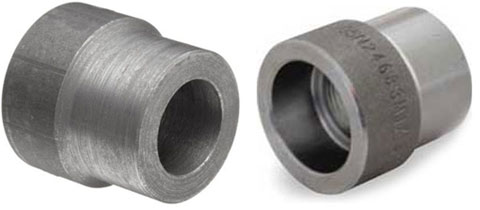

Socket Weld Reducer Insert
ASME B 16.11 / ANSI B16.9 Socket Weld Reducer Insert, MSS SP-43 Forged Socket Weld Reducer Insert, BS3799 Threaded Socket Weld Reducer Insert Manufacturer & Supplier in Mumbai, India
ANSI B16.11 Socket Weld Reducer Insert Exporter, ASTM A182 High Pressure Socket Weld Reducer Insert Fittings, Socket Weld Pipe Reducer Insert Dealers & Exporters
Nakshatra Steel is one of the largest Manufacturers, Supplier and Stockists of Socket Weld Reducer Insert available in various specifications in order to meet the diversified requirements of the customers. Forged Socket Weld Reducer Insert is used only in conjunction with ASME Pipe, and High-pressure Applications.
We are highly experienced and authorized dealer of ASME B16.11 Socket Weld Reducer Insert pipe fittings in compliance with international quality standards and measures. These Socket Weld Reducer Insert features higher corrosion resistance, sturdy and durable properties that will stand up behind their product and service.
Also, these Forged Socket Weld Reducer Insert comes in various specifications in order to meet the diversified requirements of the customers. We specialize in offering these forged socket weld reducer insert in various materials including stainless steel socket weld reducer insert, brass socket weld reducer insert, carbon steel socket weld reducer insert, nickel alloys socket weld reducer insert, alloy steel socket weld reducer insert and others. Kindly contact us today or do call us today to get detailed information about our products!
ASTM A182 Stainless Steel Socket Weld Reducer Insert, ANSI B16.9 Alloy Steel Socket Weld Reducer Insert, Carbon Steel Socket Weld Pipe Reducer Insert, Nickel Alloy Socket Weld Reducer Insert Stockholder & Wholesaler in India
Specifications for Socket Weld Reducer Insert
| Specifications | : | ASTM A182, ASTM SA182 |
| Dimension | : | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | : | 1/8" NB TO 4" NB |
| Class | : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Range | : | Union, Tee, Elbow, Socket, Nipple, Coupling, Pipe Cap, End Cap |
| Type | : | Socket Weld (S/W) & Screwed (SCRD)- NPT, BSP, BSPT |
Material & Grades of Socket Weld Reducer Insert
| Stainless Steel Reducer Insert Socket Weld Fittings |
| ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A182 TP304, TP304L, TP316, TP316L |
| Carbon Steel Reducer Insert Socket Weld Fittings |
| ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C |
| Alloy Steel Reducer Insert Socket Weld Fittings |
| ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91 |
| Nickel Alloy Reducer Insert Socket Weld Fittings |
| ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
| Duplex & Super Duplex Steel Reducer Insert Socket Weld Fittings |
| ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950. |
| Copper Alloy Steel Reducer Insert Socket Weld Fittings |
| ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600, C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |

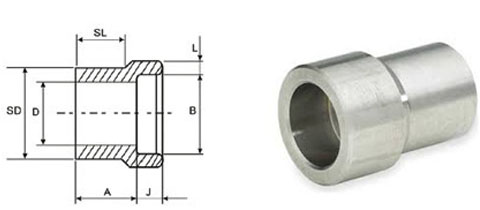

ASME B16.11 Reducer Insert Socket Weld Fittings Dimensions
 |
||||||||
| Pipe Size | CLASS 3000 | |||||||
| TYPE | A | B | C | D | E | F | ||
| 1/4 | 1/8 | 1 | 0.540 | 0.426 | 0.438 | 0.750 | 0.750 | 0.563 |
| 3/8 | 1/8 | 1 | 0.675 | 0.426 | 0.438 | 0.750 | 0.750 | 0.563 |
| 1/4 | 1 | 0.675 | 0.560 | 0.438 | 0.750 | 0.875 | 0.563 | |
| 1/2 | 1/8 | 2 | 0.840 | 0.426 | 0.438 | 0.813 | --- | --- |
| 1/4 | 1 | 0.840 | 0.560 | 0.438 | 0.813 | 0.875 | 0.625 | |
| 3/8 | 1 | 0.840 | 0.693 | 0.438 | 0.813 | 1.063 | 0.625 | |
| 3/4 | 1/8 | 2 | 1.050 | 0.426 | 0.438 | 0.688 | --- | --- |
| 1/4 | 2 | 1.050 | 0.560 | 0.438 | 0.688 | --- | --- | |
| 3/8 | 2 | 1.050 | 0.693 | 0.438 | 0.625 | --- | --- | |
| 1/2 | 1 | 1.050 | 0.859 | 0.500 | 0.875 | 1.250 | 0.688 | |
| 1 | 1/4 | 2 | 1.315 | 0.560 | 0.438 | 0.750 | --- | --- |
| 3/8 | 2 | 1.315 | 0.693 | 0.438 | 0.688 | --- | --- | |
| 1/2 | 2 | 1.315 | 0.859 | 0.500 | 0.625 | --- | --- | |
| 3/4 | 1 | 1.315 | 1.071 | 0.563 | 0.938 | 1.500 | 0.750 | |
| 1-1/4 | 3/8 | 2 | 1.660 | 0.693 | 0.438 | 0.813 | --- | --- |
| 1/2 | 2 | 1.660 | 0.859 | 0.500 | 0.750 | --- | --- | |
| 3/4 | 2 | 1.660 | 1.071 | 0.563 | 0.688 | --- | --- | |
| 1 | 1 | 1.660 | 1.335 | 0.625 | 1.000 | 1.813 | 0.813 | |
| 1-1/2 | 3/8 | 2 | 1.900 | 0.693 | 0.438 | 0.880 | --- | --- |
| 1/2 | 2 | 1.900 | 0.859 | 0.500 | 0.813 | --- | --- | |
| 3/4 | 2 | 1.900 | 1.071 | 0.563 | 0.750 | --- | --- | |
| 1 | 2 | 1.900 | 1.335 | 0.625 | 0.688 | --- | --- | |
| 1-1/4 | 1 | 1.900 | 1.682 | 0.688 | 1.125 | 2.250 | 0.875 | |
| 2 | 1/2 | 2 | 2.375 | 0.859 | 0.500 | 1.000 | --- | --- |
| 3/4 | 2 | 2.375 | 1.071 | 0.563 | 0.938 | --- | --- | |
| 1 | 2 | 2.375 | 1.335 | 0.625 | 0.875 | --- | --- | |
| 1-1/4 | 2 | 2.375 | 1.682 | 0.688 | 0.813 | --- | --- | |
| 1-1/2 | 1 | 2.375 | 1.922 | 0.750 | 1.250 | 2.500 | 1.000 | |
| 2-1/2 | 3/4 | 2 | 2.875 | 1.071 | 0.563 | 1.563 | --- | --- |
| 1 | 2 | 2.875 | 1.335 | 0.625 | 1.500 | --- | --- | |
| 1-1/4 | 2 | 2.875 | 1.682 | 0.688 | 1.438 | --- | --- | |
| 1-1/2 | 2 | 2.875 | 1.922 | 0.750 | 1.375 | --- | --- | |
| 2 | 1 | 2.875 | 2.410 | 0.875 | 1.813 | 3.000 | 1.500 | |
| 3 | 3/4 | 2 | 3.500 | 1.071 | 0.563 | 1.312 | --- | --- |
| 1 | 2 | 3.500 | 1.335 | 0.625 | 1.250 | --- | --- | |
| 1-1/4 | 2 | 3.500 | 1.682 | 0.688 | 1.188 | --- | --- | |
| 1-1/2 | 2 | 3.500 | 1.922 | 0.750 | 1.125 | --- | --- | |
| 2 | 2 | 3.500 | 2.410 | 0.875 | 1.000 | --- | --- | |
| 2-1/2 | 1 | 3.500 | 2.910 | 0.875 | 1.500 | 3.625 | 1.250 | |
| 4 | 3/4 | 2 | 4.500 | 1.071 | 0.563 | 1.813 | --- | --- |
| 1 | 2 | 4.500 | 1.335 | 0.625 | 1.750 | --- | --- | |
| 1-1/4 | 2 | 4.500 | 1.682 | 0.688 | 1.688 | --- | --- | |
| 1-1/2 | 2 | 4.500 | 1.922 | 0.750 | 1.625 | --- | --- | |
| 2 | 2 | 4.500 | 2.410 | 0.875 | 1.500 | --- | --- | |
| 2-1/2 | 2 | 4.500 | 2.910 | 0.875 | 1.500 | --- | --- | |
| 3 | 2 | 4.500 | 3.536 | 1.063 | 1.313 | --- | --- | |
Types of Socket Weld Reducer Insert
| Forged Socket weld Reducer Insert Manufacturer | Forged Socket weld Long Radius Reducer Insert |
| 150 lb. Socket Weld Fittings Reducer Insert | Socket weld Reducer Insert Exporters |
| ASME B16.11 Socket weld Reducer Insert | Reducer Insert 3000LB Socket Weld Fabricator |
| Stainless Steel Reducer Insert Suppliers | SS Forged Reducer Insert Stockholder |
| ANSI B16.11 Forged Reducer Insert Dealer | BS 3799 Forged Reducer Insert Exporter |
| Forged Socket weld Reducer Insert Stockholder | Socket weld Reducer Insert Distributors |
| Carbon Steel Socket weld Reducer Insert | High Quality Socket weld Reducer Insert Manufacturer |
| ASTM A182 Socket weld Stainless Steel Reducer Insert | Duplex Steel Socket weld Reducer Insert |
| Super Duplex Steel Reducer Insert Suppliers | Copper Nickel Socket weld Reducer Insert |
| High Nickel Alloy Forged Socket weld Reducer Insert | Hastelloy Socket weld Reducer Insert Stockist |
| Titanium Socket weld Reducer Insert Wholesaler | Inconel Socket weld Reducer Insert |
Call +91 9833263204 or Click here to send enquiry for Socket Weld Reducer Insert
Socket Weld Reducer Insert Exporters & Suppliers
Exporting Socket Weld Reducer Insert to Countries
We are exporting Socket Weld Reducer Insert to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying Socket Weld Reducer Insert to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
