Socket Weld Boss
ASME B 16.11 / ANSI B16.9 Socket Weld Boss, MSS SP-43 Forged Socket Weld Boss, BS3799 Threaded Socket Weld Boss Manufacturer & Supplier in Mumbai, India
ANSI B16.11 Socket Weld Boss Exporter, ASTM A182 High Pressure Socket Weld Boss Fittings, Socket Weld Pipe Boss Dealers & Exporters
Nakshatra Steel is one of the largest Manufacturers, Supplier and Stockists of Socket Weld Boss pipe fittings that available in different dimensions and specifications in order to meet the diversified requirements of the customers. Forged Socket Weld Boss is used only in conjunction with ASME Pipe, and High-pressure Applications.
We are highly experienced and authorized dealer of socket weld fittings boss pipe fittings in compliance with international quality standards and measures. These ASME B16.11 Socket Weld Boss features higher corrosion resistance, sturdy and durable properties that will stand up behind your product and service.
We offer these ANSI B16.11 Socket Weld Boss in various specifications in order to meet the diversified requirements of the customers. We specialize in offering these forged socket weld boss in various materials including stainless steel socket weld boss, brass socket weld boss, carbon steel socket weld boss, nickel alloys socket weld boss, alloy steel socket weld boss and others. Kindly contact us today or do call us today to get detailed information about our products!
ASTM A182 Stainless Steel Socket Weld Boss, ANSI B16.9 Alloy Steel Socket Weld Boss, Carbon Steel Socket Weld Pipe Boss, Nickel Alloy Socket Weld Boss Stockholder & Wholesaler in India
Specifications for Socket Weld Boss
| Dimension | : | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | : | 1/8" NB TO 4" NB |
| Type | : | Forged Elbow, Forged Tee, Forged Reducer, Forged Return Bends, Forged Stub-Ends, Forged Cap, Forged Collar, Forged Cross, Forged Insert etc. |
Material & Grades of Socket Weld Boss
| Stainless Steel Boss Socket Weld Fittings |
| ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A182 TP304, TP304L, TP316, TP316L |
| Carbon Steel Boss Socket Weld Fittings |
| ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C |
| Alloy Steel Boss Socket Weld Fittings |
| ASTM / ASME A 182, ASTM / ASME A 335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91 |
| Nickel Alloy Boss Socket Weld Fittings |
| ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
| Duplex & Super Duplex Steel Boss Socket Weld Fittings |
| ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950. |
| Copper Alloy Steel Boss Socket Weld Fittings |
| ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |

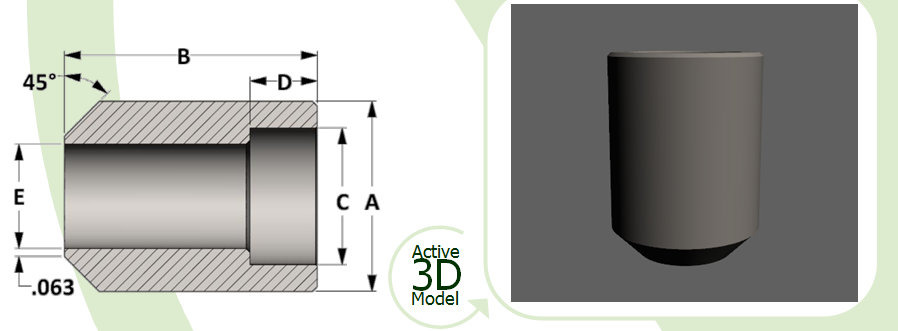

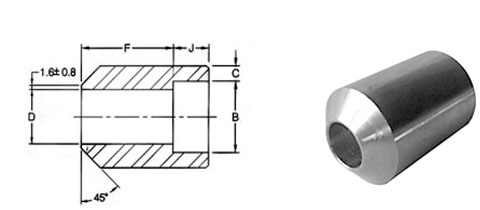

ASME B16.11 Boss Socket Weld Fittings Dimensions
 |
||||||||
| PIPE SIZE | CLASS 3000 | |||||||
| 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| A | 0.875 | 1.063 | 1.250 | 1.500 | 1.813 | 2.250 | 2.500 | 3.000 |
| B | 1.057 | 1.127 | 1.317 | 1.471 | 1.651 | 1.721 | 1.781 | 2.276 |
| C | 0.560 | 0.693 | 0.859 | 1.071 | 1.335 | 1.682 | 1.922 | 2.410 |
| D | 0.438 | 0.438 | 0.438 | 0.531 | 0.531 | 0.531 | 0.531 | 0.656 |
| E | 0.364 | 0.493 | 0.622 | 0.824 | 1.049 | 1.380 | 1.610 | 2.067 |
| LBS | 0.12 | 0.18 | 0.28 | 0.42 | 0.65 | 0.98 | 1.20 | 1.98 |
| PIPE SIZE | CLASS 6000 | |||||||
| 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| A | 1.000 | 1.250 | 1.500 | 1.750 | 2.000 | 2.500 | 2.750 | 3.625 |
| B | 1.057 | 1.127 | 1.317 | 1.471 | 1.651 | 1.721 | 1.781 | 2.276 |
| C | 0.560 | 0.693 | 0.859 | 1.071 | 1.335 | 1.682 | 1.922 | 2.410 |
| D | 0.438 | 0.438 | 0.438 | 0.531 | 0.531 | 0.531 | 0.531 | 0.656 |
| E | 0.250 | 0.359 | 0.466 | 0.614 | 0.815 | 1.160 | 1.338 | 1.689 |
| LBS | 0.17 | 0.27 | 0.44 | 0.63 | 0.89 | 1.36 | 1.64 | 3.68 |
| PIPE SIZE | CLASS 9000 | |||||||
| 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | |
| A | --- | --- | 1.750 | 2.000 | 2.500 | 2.750 | 3.000 | 3.625 |
| B | --- | --- | 1.317 | 1.471 | 1.651 | 1.721 | 1.781 | 2.267 |
| C | --- | --- | 0.859 | 1.071 | 1.335 | 1.682 | 1.922 | 2.410 |
| D | --- | --- | 0.438 | 0.531 | 0.531 | 0.531 | 0.531 | 0.656 |
| E | --- | --- | 0.252 | 0.434 | 0.599 | 0.896 | 1.100 | 1.503 |
| LBS | --- | --- | 0.55 | 0.79 | 1.33 | 1.65 | 1.95 | 3.67 |
Types of Socket Weld Boss
| Forged Socket weld Boss Manufacturer | Forged Socket weld Long Radius Boss |
| 150 lb. Socket Weld Fittings Boss | Socket weld Boss Exporters |
| ASME B16.11 Socket weld Boss | Boss 3000LB Socket Weld Fabricator |
| Stainless Steel Boss Suppliers | SS Forged Boss Stockholder |
| ANSI B16.11 Forged Boss Dealer | BS 3799 Forged Boss Exporter |
| Forged Socket weld Boss Stockholder | Socket weld Boss Distributors |
| Carbon Steel Socket weld Boss | High Quality Socket weld Boss Manufacturer |
| ASTM A182 Socket weld Stainless Steel Boss | Duplex Steel Socket weld Boss |
| Super Duplex Steel Boss Suppliers | Copper Nickel Socket weld Boss |
| High Nickel Alloy Forged Socket weld Boss | Hastelloy Socket weld Boss Stockist |
| Titanium Socket weld Boss Wholesaler | Inconel Socket weld Boss |
