Socket Weld Pipe Cap
ASME B 16.11 / ANSI B16.9 Socket Weld Cap, MSS SP-43 Forged Socket Weld Cap, BS3799 Threaded Socket Weld Cap Manufacturer & Supplier in Mumbai, India
ANSI B16.11 Socket Weld Cap Exporter, ASTM A182 Socket Weld Cap Fittings, Socket Weld Pipe End Cap Dealers & Exporters
Nakshatra Steel is one of the leading Manufacturers, Supplier and Exporters of High quality Socket Weld Pipe Cap that are available in class 2000LBS, 3000LBS, 6000LBS ( 1000 PSI – 15000 Psi ) for sale to our esteemed clients. The socket weld pipe cap fittings are produced by us that conform to ASME B16.9 / 11 international standards.
We specialize in offering these Forged Socket Weld Pipe Cap in various materials including stainless steel socket weld cap, brass socket weld cap, carbon steel socket weld cap, nickel alloys socket weld cap, alloy steel socket weld cap and others.
These Socket Weld End Cap sizes are ranging from 1/8” NB – 4” NB which can be accessible as per customer specification or project requirement. These socket weld pipe end cap is widely used in cooker manufacturing, chemical supplies, and various other electronic and electrical parts etc.
We offer these Stainless Steel Socket Weld Cap fittings are in various specifications in order to meet the diversified requirements of the customers. ANSI / ASME B16.11 Socket Weld Pipe Cap is often used for Shipping Industry, Tannery Equipment Industry, Automobiles Industry, Acoustic & Sound Proof, Construction Industry, Applications, Refineries, Textile Machinery Industry, Pump & Valves Industry, etc. Call us now for more info!
ASTM A182 Stainless Steel Socket Weld Cap, ANSI B16.9 Alloy Steel Socket Weld Cap, Carbon Steel Socket Weld Pipe Cap, Nickel Alloy Socket Weld Cap Stockholder & Wholesaler in India
Specifications for Socket Weld Pipe Cap
| Standard | : | ASTM A182, ASTM SA182 |
| Dimension | : | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | : | 1/8" NB TO 4" NB |
| Class | : | 2000 LBS, 3000 LBS, 6000 LBS |
| Type | : | Socket Weld Fitting Pipe Cap / End Cap |
Material & Grades of Socket Weld Pipe Cap
| Stainless Steel Pipe Cap Socket Weld Fittings |
| ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L |
| Carbon Steel Pipe Cap Socket Weld Fittings |
| ASTM A105, A350 LF2, A106 Gr.B, A234 WPB |
| Alloy Steel Pipe Cap Socket Weld Fittings |
| ASTM / ASME A182, ASTM / ASME A335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91 |
| Nickel Alloy Pipe Cap Socket Weld Fittings |
| ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Copper Nickel (Cupro-Nickel 90/10 & 70/30). |
| Duplex & Super Duplex Steel Pipe Cap Socket Weld Fittings |
| ASTM/ASME A182 / SA182, A790 / SA790 UNS No S31803, S32205, S32750, S32950 |
| Low Temperature Carbon Steel Socket Weld Pipe Cap |
| ASTM/ASME A420 SA/420 WPL3, WPL6 |

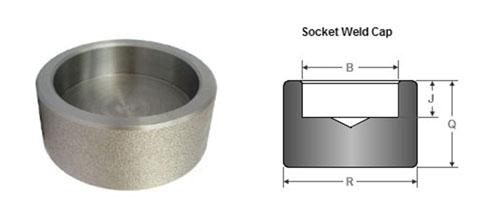

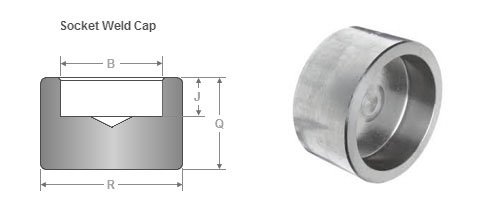

Socket Weld Pipe Cap Dimensions
Class 3000 - NPS 1/2 to 4
 |
||||
| NPS | Socket Bore |
Depth Socket |
Length Cap |
Diameter Cap |
| B | J | Q | R | |
| 1/2 | 21.95 21.70 |
10 | 19 | 32 |
| 3/4 | 27.30 27.05 |
13 | 23 | 38 |
| 1 | 34.05 33.80 |
13 | 26 | 45 |
| 1 ¼ | 42.80 42.55 |
13 | 28 | 55 |
| 1 ½ | 48.90 48.65 |
13 | 30 | 65 |
| 2 | 61.35 61.10 |
16 | 36 | 75 |
| 2 ½ | 74.20 73.80 |
16 | 38 | 92 |
| 3 | 90.15 89.80 |
16 | 42 | 110 |
| 4 | 115.80 115.45 |
19 | 48 | 140 |
Class 6000 - NPS 1/2 to 2
| NPS | Socket Bore |
Depth Socket |
Length Cap |
Diameter Cap |
| B | J | Q | R | |
| 1/2 | 21.95 21.70 |
10 | 22 | 34 |
| 3/4 | 27.30 27.05 |
13 | 26 | 41 |
| 1 | 34.05 33.80 |
13 | 28 | 50 |
| 1 ¼ | 42.80 42.55 |
13 | 30 | 58 |
| 1 ½ | 48.90 48.65 |
13 | 32 | 66.5 |
| 2 | 61.35 61.10 |
16 | 38 | 85 |
Types of Socket Weld Pipe Cap
| Forged Socket weld Pipe Cap | Forged Socket weld Pipe End Cap |
| 150 lb. Socket Weld Fittings Pipe Cap | Socket weld Forged Pipe Cap |
| ASME B16.11 Socket weld Pipe Cap | Forged Pipe Cap 3000LB Socket Weld |
| Stainless Steel Pipe Cap Suppliers | SS Forged Socket weld Pipe Cap |
| ANSI B16.11 Forged Socket weld Pipe Cap Dealer | BS 3799 Forged Pipe Cap Exporter |
| Forged Socket weld Pipe Cap Stockholder | Socket weld Forged Pipe Cap Distributors |
| Carbon Steel Socket weld Pipe Cap | High Quality Socket weld Pipe Cap Manufacturer |
| ASTM A182 Socket weld Stainless Steel Pipe Cap | Duplex Steel Socket weld Pipe Cap |
| Super Duplex Steel Pipe Cap | Copper Nickel Socket weld Pipe Cap |
| High Nickel Alloy 45° Forged Socket weld Pipe Cap | Hastelloy Socket weld 45° Pipe Cap Stockist |
| Titanium Socket weld Pipe Cap | Inconel Socket weld Pipe Cap |
Call +91 9833263204 or Click here to send enquiry for Socket Weld Pipe Cap
Socket Weld Pipe Cap Exporters & Suppliers
Exporting Socket Weld Pipe Cap to Countries
We are exporting Socket Weld Pipe Cap to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying Socket Weld Pipe Cap to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
