Socket Weld Full Coupling
ASME B 16.11 / ANSI B16.9 Socket Weld Full Coupling, MSS SP-43 Forged Socket Weld Full Coupling, BS3799 Threaded Socket Weld Full Coupling Manufacturer & Supplier in Mumbai, India
ANSI B16.11 Socket Weld Coupling Exporter, ASTM A182 Socket Weld Full Coupling Fittings, Socket Weld By Threaded Coupling Dealers & Exporters
We here at Nakshatra Steel are pride ourselves on being most prominent Manufacturers, Supplier and Exporters of high quality Socket Weld Full Coupling, based in Mumbai, India. We are dedicated to offer Socket Weld Full Coupling that are used to connect small bore pipes as a projection of a welding effect on the pipe bore. The both the end of these Full Couplings are threaded.
Our offered range Forged Socket Weld Full Coupling by us is highly demanded in the international market. These Stainless Steel Socket Weld Full Couplings are precision engineered and high quality raw material deploy to its manufacturing process to ensure the highest quality and endurance under any extreme conditions. These ANSI B16.11 Socket Weld Full Couplings are used in applications such as pharmaceuticals, ship building, etc. We offer high tensile ASME B16.11 Socket Weld Full Couplings at reasonable prices.
We manufacture Threaded Socket Weld Full Coupling as per the BS, DIN, JIS, SAE & IS Standards or any other international standards and also in different size, grades, specification & thickness as per the client’s requirements. Check our technical specification, grades and other, we offer and call us now to request a free quote!
ASTM A182 Stainless Steel Socket Weld Full Coupling, Alloy Steel Socket Weld Full Coupling, Carbon Steel Socket Weld Pipe Full Coupling, Nickel Alloy Socket Weld Full Coupling Dealer & Wholesaler in India
Specifications for Socket Weld Full Coupling
| Standards | : | ASTM A182, ASTM SA182 |
| Dimension | : | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | : | 1/8" NB TO 4" NB |
| Class | : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Range | : | Union, Tee, Elbow, Socket, Nipple, Coupling, Half Coupling, Full Coupling |
| Type | : | Socket Weld (S/W) & Screwed (SCRD) |
Material & Grades of Socket Weld Full Coupling
| Stainless Steel Full Coupling Socket Weld Fittings |
| ASTM / ASME SA A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
| Carbon Steel Full Coupling Socket Weld Fittings |
| ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2 |
| Alloy Steel Full Coupling Socket Weld Fittings |
| ASTM / ASME A182 F1/ F5/ F9/ F11/ F22/ F91 |
| Nickel Alloy Full Coupling Socket Weld Fittings |
| ASTM / ASME SB 336 UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
| Duplex & Super Duplex Steel Full Coupling Socket Weld Fittings |
| ASTM A182, ASTM / ASME SA 790 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950. |
| Copper Alloy Steel Full Coupling Socket Weld Fittings |
| ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |

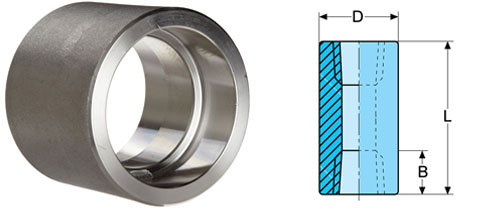

ANSI 16.9 Socket Weld Full Coupling Dimensions
 |
||||||
| NPS | Socket Bore |
Depth Socket |
Bore diameter |
Socket wall thickness |
Laying lengths | |
| B | J | D | C | Coupling E |
||
| 1/2 | 21.95 21.70 |
10 | 16.6 15 |
4.65 4.10 |
9.5 | |
| 3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
9.5 | |
| 1 | 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
13 | |
| 1¼ | 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
13 | |
| 1½ | 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
13 | |
| 2 | 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
19 | |
| 2½ | 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
19 | |
| 3 | 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
19 | |
| 4 | 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
19 | |
Types of Socket Weld Full Coupling
| Forged Socket weld Full Coupling | Socket weld Full Coupling |
| 150 lb. Socket Weld Fittings Full Coupling | Socket weld Forged Coupling |
| ASME B16.11 Forged Socket weld Full Coupling | Forged Full Coupling 3000LB Socket Weld |
| Stainless Steel Full Coupling Suppliers | SS Forged Socket weld Full Coupling |
| ANSI B16.11 Forged Socket weld Full Coupling Dealer | BS 3799 Forged Full Coupling Exporter |
| Forged Socket weld Full Coupling Stockholder | Socket weld Forged Full Coupling Distributors |
| Carbon Steel Socket weld Full Coupling | High Quality Socket weld Full Coupling Manufacturer |
| ASTM A182 Socket weld Stainless Steel Full Coupling | Duplex Steel Socket weld Full Coupling |
| Super Duplex Steel Full Coupling | Copper Nickel Socket weld Full Coupling |
| High Nickel Alloy Forged Socket weld Full Coupling | Hastelloy Socket weld Full Coupling Stockist |
| Titanium Forged Socket weld Full Coupling | Inconel Socket weld Full Coupling |
Call +91 9833263204 or Click here to send enquiry for Socket Weld Full Coupling
Socket Weld Full Coupling Exporters & Suppliers
Exporting Socket Weld Full Coupling to Countries
We are exporting Socket Weld Full Coupling to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying Socket Weld Full Coupling to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
