Socket Weld 90 Degree Elbow
ASME B 16.11 / ANSI B16.9 Socket Weld 90 Degree Elbow, MSS SP-43 Forged Socket Weld 90 Degree Elbow, BS3799 Threaded Socket Weld 90 Degree Elbow Manufacturer & Supplier in Mumbai, India
90 Degree Socket Weld Elbow Exporter, ASTM A182 High Pressure Socket Weld 90 Degree Elbow, Socket Weld 90 Deg. Short Radius Elbow, 90 Deg. Socket Weld Long Radius Elbow Dealers & Exporters
At Nakshatra Steel, we are one of the top Manufacturer, Stockists & Supplier of quality of socket weld 90 degree elbow to the consumers. Socket Weld 90 Degree Elbows can be installed in the recessed area of a valve, fitting or flange. We offer Forged Socket Weld 90 Degree Elbows come in two types; short radius elbow and long radius elbow.
Being an ISO certified company, Nakshatra Steel have more than 20 years of experience in producing and delivering optimum quality 90 Degree Socket Weld Elbow fittings available in customized sizes and specifications to our esteemed clients.
Our 90° Socket Weld Elbow are being produced from quality raw material to ensure quality in compliance with international quality standards and measures. These Threaded Socket Weld 90° Elbow features corrosion resistance, sturdy and durable available in customized size, specifications and dimensions to meet all the expectation of our esteemed clients.
Our offered range of ASME B16.11 Socket Weld 90 Degree Elbow is available in all materials Stainless Steel Socket Weld 90 Deg Elbow, Carbon Steel / Alloy Steel Socket Weld 90 Degree Elbow & High Nickel Alloys Socket Weld 90 Degree Elbow to cater to growing demands. Call us now and request a free quote!
ASTM A182 Stainless Steel Socket Weld 90 Degree Elbow, Alloy Steel Socket Weld 90 Degree Elbow, Carbon Steel 90 Degree Elbow, Nickel Alloy 90 Degree Elbow Dealer & Wholesaler in India.
Specifications for Socket Weld 90 Degree Elbow
| Specifications | : | ASTM A182, ASTM SA182 |
| Dimension | : | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | : | 1/8" NB TO 4" NB |
| Class | : | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Form | : | 90 Deg Elbow, 45 Deg Elbow, Any required deg. |
| Type | : | Socket Weld (S/W) & Screwed (SCRD) |
| Schedule | : | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
Material & Grades of Socket Weld 90 Degree Elbow
| Stainless Steel 90 Degree Elbow Socket Weld Fittings |
| ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L |
| Carbon Steel 90 Degree Elbow Socket Weld Fittings |
| ASTM / ASME A 234 WPB, WPC. ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Alloy Steel 90 Degree Elbow Socket Weld Fittings |
| ASTM / ASME A 182, ASTM / ASME A 335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91 |
| Nickel Alloy 90 Degree Elbow Socket Weld Fittings |
| ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
| Duplex & Super Duplex Steel 90 Degree Elbow Socket Weld Fittings |
| ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950. |
| Copper Alloy Steel 90 Degree Elbow Socket Weld Fittings |
| ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |
ANSI 16.9 Socket Weld 90 Degree Elbow Dimensions
 |
||||||||||||
| Nominal Diameter | Depth of Socket |
Dimension of Socket |
Wall Thickness |
Center to Bottom of Socket | ||||||||
| A | ||||||||||||
| Cmin | 90 Degree Elbow | |||||||||||
| DN | NPS | Jmin | d1 | 3000LB Sch80 |
6000LB Sch160 |
9000LB XXS |
3000LB Sch80 |
6000LB Sch160 |
9000LB XXS |
|||
| 6 | 1/8 | 10 | 10.7 | 3.2 | 3.5 | - | 11 | 11 | - | |||
| 8 | 1/4 | 10 | 14.1 | 3.3 | 4.0 | - | 11 | 15 | - | |||
| 10 | 3/8 | 10 | 17.5 | 3.5 | 4.4 | - | 13 | 15 | - | |||
| 15 | 1/2 | 10 | 21.8 | 4.1 | 5.2 | 8.2 | 16 | 19 | 25 | |||
| 20 | 3/4 | 13 | 27.4 | 4.3 | 6.1 | 8.6 | 19 | 22 | 28 | |||
| 25 | 1 | 13 | 34.2 | 5.0 | 7.0 | 10.0 | 22 | 27 | 32 | |||
| 32 | 1.1/4 | 13 | 42.9 | 5.3 | 7.0 | 10.6 | 27 | 32 | 35 | |||
| 40 | 1.1/2 | 13 | 48.3 | 5.6 | 7.8 | 11.2 | 32 | 38 | 38 | |||
| 50 | 2 | 13 | 61.1 | 6.1 | 9.5 | 12.2 | 38 | 41 | 41 | |||
| 65 | 2.1/2 | 16 | 76.9(73.8) | 7.7 | 12.5 | - | 41 | 57 | - | |||
| 80 | 3 | 16 | 89.8 | 8.3 | 13.8 | - | 57 | 64 | - | |||
| 100 | 4 | 19 | 115.5 | 9.4 | - | - | 66 | - | - | |||

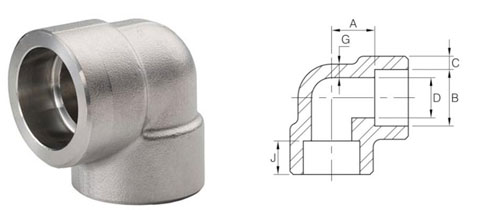

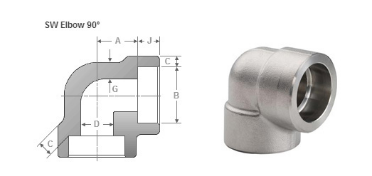

Dimensions Socket Weld Elbows - NPS 1/2 to 2 - 90 Degree - 6000 LBS - ASME B16.11
| NPS | Socket Bore |
Depth Socket |
Bore diameter |
Socket wall thickness |
Body wall thickness |
Center to bottom of socket A |
| B | J | D | C | G | 90° | |
| 1/2 | 21.95 21.70 |
10 | 12.5 11 |
5.95 5.20 |
4.80 | 19.5 |
| 3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
5.55 | 22.5 |
| 1 | 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
6.35 | 27 |
| 1¼ | 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
6.35 | 32 |
| 1½ | 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
7.15 | 38 |
| 2 | 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
8.75 | 41 |
Types of Socket Weld 90 Degree Elbow
| Forged Socket weld Elbow 90 Degree | Forged Socket weld Long Radius 90 Degree Elbows |
| 150 lb. Socket Weld Fittings Pipe Elbow | Socket weld 90 Degree Short Radius Elbow |
| ASME B16.11 90 deg Socket weld Elbow | 90 Degree Elbow 3000LB Socket Weld |
| Stainless Steel 90 Degree Pipe Elbow Suppliers | SS 90 Deg. Forged Elbows |
| ANSI B16.11 90 Degree Forged Elbow Dealer | BS 3799 Forged 90 Degree Elbow Exporter |
| Forged Socket weld 90 Deg Elbow Stockholder | Socket weld 90 Degree Pipe Elbow Distributors |
| Carbon Steel Socket weld 90 Degree Elbow | High Quality Socket weld 90 Deg Elbow Manufacturer |
| ASTM A182 Socket weld Stainless Steel 90 Deg Elbows | Duplex Steel 90 Degree Socket weld Pipe Elbow |
| Super Duplex Steel 90 Deg Elbow | Copper Nickel Socket weld 90 Deg Elbow |
| High Nickel Alloy 90 Degree Forged Socket weld Elbow | Hastelloy Socket weld 90 Degree Pipe Elbow Stockist |
| Titanium 90 Degree Socket weld Elbow | Inconel Socket weld 90 Degree Pipe Elbow |
Call +91 9833263204 or Click here to send enquiry for Socket Weld 90 Degree Elbow
Socket Weld 90° Elbow Exporters & Suppliers
Exporting Socket Weld 90° Elbow to Countries
We are exporting Socket Weld 90° Elbow to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying Socket Weld 90° Elbow to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
