Socket Weld Branch Outlet
ASME B 16.11 / ANSI B16.9 Socket Weld Branch Outlet, MSS SP-43 Forged Socket Weld Branch Outlet, BS3799 Threaded Socket Weld Branch Outlet Manufacturer & Supplier in Mumbai, India
ANSI B16.11 Socket Weld Branch Outlet Exporter, ASTM A182 High Pressure Socket Weld Branch Outlet Fittings, Socket Weld Pipe Branch Outlet Dealers & Exporters
At Nakshatra Steel, we are your topmost manufacturer, exporter and stockists of Socket Weld Branch Outlet for all type of industries in India and across worldwide. We offer Socket Weld Fittings Branch Outlet available in different dimensions and specification according to the ANSI / ASME B16.11 and other international standards like BS, DIN, JIS, SAE & IS standards etc.
We produce and design Socket Weld Branch Outlet from high-quality raw material with help of our state of the art technology. These offered Forged Socket Weld Branch Outlet fittings by us are widely used in various application industries such as petrochemicals, power generation, ship building, chemical, pharmaceuticals etc.
Also, Threaded Socket Weld Branch Outlet comes in a variety of materials including Stainless Steel Socket Weld Branch Outlet, brass socket weld branch outlet, carbon steel socket weld branch outlet, nickel alloys socket weld branch outlet, alloy steel socket weld branch outlet and others. Get in touch with us or Call us now to request a free quote!
ASTM A182 Stainless Steel Socket Weld Branch Outlet, ANSI B16.9 Alloy Steel Socket Weld Branch Outlet, Carbon Steel Socket Weld Pipe Branch Outlet, Nickel Alloy Socket Weld Branch Outlet Stockholder & Wholesaler in India
Specifications for Socket Weld Branch Outlet
| Dimension | : | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | : | 1/8" NB TO 4" NB |
| Type | : | Forged Elbow, Forged Tee, Forged Reducer, Forged Return Bends, Forged Stub-Ends, Forged Cap, Forged Collar, Forged Cross, Forged Insert etc. |
Material & Grades of Socket Weld Branch Outlet
| Stainless Steel Branch Outlet Socket Weld Fittings |
| ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A182 TP304, TP304L, TP316, TP316L |
| Carbon Steel Branch Outlet Socket Weld Fittings |
| ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C |
| Alloy Steel Branch Outlet Socket Weld Fittings |
| ASTM / ASME A 182, ASTM / ASME A 335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91 |
| Nickel Alloy Branch Outlet Socket Weld Fittings |
| ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
| Duplex & Super Duplex Steel Branch Outlet Socket Weld Fittings |
| ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950. |
| Copper Alloy Steel Branch Outlet Socket Weld Fittings |
| ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30) |

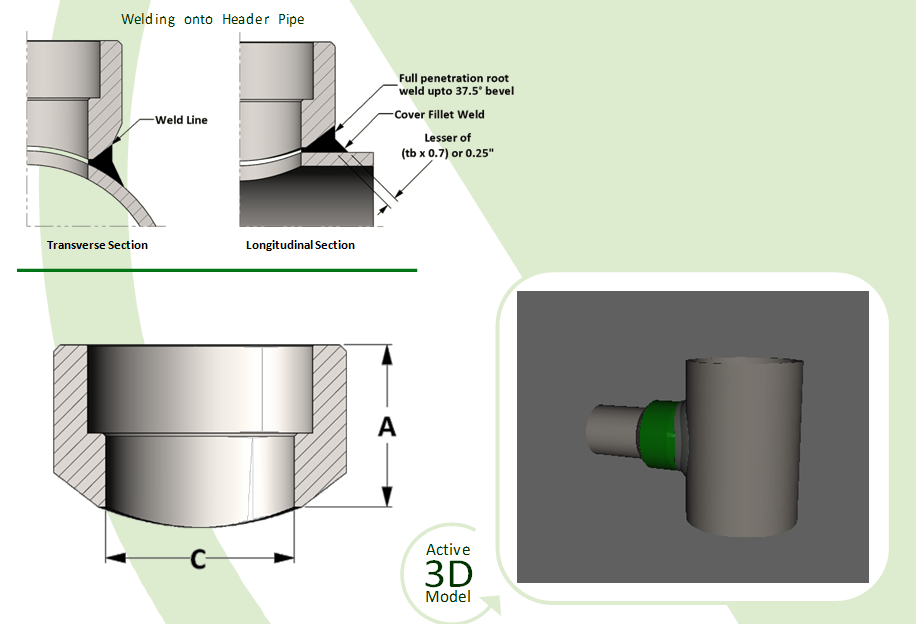

ASME B 16.11 Branch Outlet Socket Weld Fittings Dimensions
 |
|||||||||||||
| PIPE SIZE | CLASS 3000 | ||||||||||||
| 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 3-1/2 | 4 | |
| A | 0.750 | 0.750 | 0.813 | 1.000 | 1.063 | 1.313 | 1.313 | 1.375 | 1.500 | 1.813 | 2.000 | 2.125 | 2.250 |
| C | 0.269 | 0.364 | 0.493 | 0.622 | 0.824 | 1.049 | 1.380 | 1.610 | 2.067 | 2.469 | 3.068 | 3.548 | 4.026 |
| LBS | 0.07 | 0.12 | 0.16 | 0.27 | 0.36 | 0.59 | 0.84 | 1.00 | 1.53 | 2.66 | 3.72 | 4.40 | 7.05 |
| PIPE SIZE | CLASS 6000 | ||||||||||||
| 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 3-1/2 | 4 | |
| A | 1.125 | 1.125 | 1.125 | 1.250 | 1.438 | 1.563 | 1.625 | 1.688 | 2.063 | 2.688 | 2.688 | --- | 3.313 |
| C | 0.157 | 0.250 | 0.359 | 0.464 | 0.612 | 0.815 | 1.160 | 1.338 | 1.687 | 2.125 | 2.624 | --- | 3.438 |
| LBS | 0.15 | 0.30 | 0.30 | 0.48 | 0.81 | 1.30 | 1.54 | 1.97 | 5.01 | 6.19 | 7.36 | --- | 14.02 |
| PIPE SIZE | CLASS 9000 | ||||||||||||
| 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 3-1/2 | 4 | |
| A | --- | --- | --- | 1.250 | 1.469 | 1.625 | 1.750 | 1.768 | 2.000 | 2.438 | 2.750 | --- | 3.313 |
| C | --- | --- | --- | 0.252 | 0.434 | 0.599 | 0.896 | 1.100 | 1.503 | 1.771 | 2.300 | --- | 3.152 |
| LBS | --- | --- | --- | 0.55 | 0.80 | 1.40 | 1.88 | 2.10 | 3.35 | 6.48 | 11.11 | --- | 17.69 |
Types of Socket Weld Branch Outlet
| Forged Socket weld Branch Outlet | Forged Socket weld Branch Outlets |
| 150 lb. Socket Weld Branch Outlet | Threaded Socket weld Branch Outlet |
| ASME B16.11 Socket weld Branch Outlet | 3000LB Socket Weld Branch Outlet |
| Stainless Steel Socket weldBranch Outlet | SS Forged Socket weld Branch Outlet Stockholder |
| ANSI B16.11 Forged Socket weld Branch Outlet Dealer | BS 3799 Socket weld Branch Outlet Exporter |
| Alloy Steel Socket weld Branch Outlet | Carbon Steel Socket weld Branch Outlet |
| Nickel Alloy Socket weld Branch Outlet | 600LB Socket weld Branch Outlet |
| ASTM A182 Socket weld Stainless Steel Branch Outlet | Duplex Steel Socket weld Branch Outlet |
| Super Duplex Steel Branch Outlet | Copper Nickel Socket weld Branch Outlet |
| High Nickel Alloy Forged Socket weld Branch Outlet | Hastelloy Socket weld Branch Outlet |
| Titanium Socket weld Branch Outlet Wholesaler | Inconel Socket weld Branch Outlet |
Call +91 9833263204 or Click here to send enquiry for Socket Weld Branch Outlet
Socket Weld Branch Outlet Exporters & Suppliers
Exporting Socket Weld Branch Outlet to Countries
We are exporting Socket Weld Branch Outlet to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying Socket Weld Branch Outlet to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
