Plug Valves
Stainless Steel Plug Valve, Lubricated Plug Valves, Sanitary Plug Valves, Three Way Plug Valves Manufacturers & Supplier in India
Plug Valves Manufacturers & Suppliers & Exporters in India
Plug Valves are industrial mechanisms which consist of conical or cylindrical plugs, which when rotated allow the fluid flow through them. Nakshatra Steel & Alloys is an illustrious Plug Valves Manufacturer, Supplier, and trader in the contemporary market. We design customized Industrial Plug Relief Valves of various sizes and shapes based on the client’s industrial requirement. Due to the high demand of our products, we always maintain enough quantity of them in our Plug Valves Stock.
All of our Lubricant Plug Valves and Non-Lubricated Plug Valves are perfectly designed keeping all the national and international standards in view. We design Lift-type plug valves and Eccentric Plug Valves in all grades, standards, and specifications. For the distinguished properties of our Expanding Plug Valves, they are deployed in many industrial applications.
Stainless Steel Safety Plug Valves of necessary certifications are offered at quite economical prices. We have a prestigious crew of clientele who are well satisfied with the quality of our Alloy Steel Plug Valves.
We recruit skillful and experienced personnel who are well trained in designing Aluminium Plug Valves using latest methods. All the machinery used to fabricate Brass Plug Valves and Bronze Plug Valves is tested for any flaws.
Get in touch with us today for your all urgent needs. Our products are famous for their exemplary features. For their elegance, they are even exported to many countries globally. With no more ado, place your order right now!
Plug Valves Specifications:
| Size | : | 25mm to 200mm |
| Pressure Rating | : | ASME 150# to 2500# |
| Materials | : | Carbon Steels, Low Temperature Carbon Steel, Martensitic Steels, Austenitic Stainless Steel, Duplex Stainless Steels, Super Duplex Stainless Steels, Nickel Alloys, Nickel Aluminum Bronze, Hastelloy, Inconnel, Titanium Alloy & Carbon Steel with Internal CorrosionResistant Alloy (CRA) Overlay |
| Design Standard | : | API6D, API 599, BS 5353, BS 5158, MESC SPE 77/107 |
| Pressure / Temperature Rating | : | ASME B 16.34 |
| Test (Inspection) Standard | : | API 598, API 6D, MESC 77/107, ISO 5208 |
| Construction Details | : | Inverted Plug Pressure Balanced /Lubricated |
| End Connection | : | Screwed, Socket Weld, Flanged, Hub End, Butt-Weld |
| Operator / Actuator | : | Lever, Gear, Actuator (Pneumatic, Hydraulic, Electro-Hydraulic and Electric Motorised) |

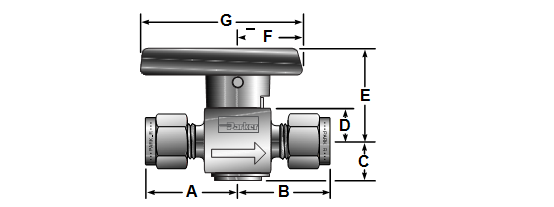

Dimensions of plug Valves
Materials of Construction
Materials of Construction
| Item # | Part Description | Stainless Steel | Brass |
| 1 | Body | ASTM A 479Type 316 | ASTM B 16Alloy C36000 |
| 2 | Plug* | ASTM A 479Type 316 | ASTM B 16Alloy C36000 |
| 3 | Seat** | Fluorocarbon Rubber | |
| 4 | O-Ring Seals** | Fluorocarbon Rubber | |
| 5 | Back-up Rings | PTFE | |
| 6 | Handle | Nylon 6/6 | |
| 7 | Handle Pin | 316 Stainless Steel | |
| 8 | Body Pin | 316 Stainless Steel (not shown) | |
| 9 | Retaining Ring | 316 Stainless Steel | |
Temperature Ratings
Temperature Ratings
| Material | Temperature Rating |
| Nitrile Rubber | -30°F to 225°F (-34°C to 107°C) |
| Fluorocarbon Rubber | -10°F to 450°F (-23°C to 232°C) |
| Highly Fluorinated Fluorocarbon Rubber | -10°F to 300°F (-23°C to 149°C) |
| Ethylene Propylene Rubber | -70°F to 275°F (-57°C to 135°C) |
How to order
How to order
 |
Flow Data / Dimensions
Flow Data / Dimensions
 |
|||||||||||||||||
| Port Size | Basic Part # | Flow Data | End Connections | Dimensions Inches (mm) | |||||||||||||
| Orifice | Cv | XT * | |||||||||||||||
| Inch | mm | Port 1 Port 2 | A†| B†| C | D | E | F | G | ||||||||
| 2F | PR4 | 0.193 | 4.9 | 1.24 | 0.39 | 1/8" Female NPT | 0.89(22.6) | 0.89(22.6) | 0.46(11.7) | 0.38(9.7) | 1.07(27.2) | 0.75(19.1) | 1.88(47.8) | ||||
| 2M | 0.172 | 4.4 | 1.02 | 0.39 | 1/8" Male NPT | 0.77(19.6) | 0.77(19.6) | ||||||||||
| 2A | 0.093 | 2.4 | 0.22 | 0.48 | 1/8" A- | 1.00(25.4) | 1.00(25.4) | ||||||||||
| 2Z | 1/8" - | ||||||||||||||||
| 4F | 0.193 | 4.9 | 1.24 | 0.39 | 1/4" Female NPT | 1.05(26.7) | 1.05(26.7) | ||||||||||
| 4M | 0.193 | 4.9 | 1.24 | 0.39 | 1/4" Male NPT | 0.96(24.4) | 0.96(24.4) | ||||||||||
| 4A | 0.187 | 4.7 | 1.18 | 0.41 | 1/4" A- | 1.09(27.7) | 1.09(27.7) | ||||||||||
| 4Z | 1/4" - | ||||||||||||||||
| 4Q | 0.187 | 4.7 | 1.18 | 0.41 | 1/4" UltraSeal | 0.85(21.7) | 0.85(21.7) | ||||||||||
| 4V | 0.187 | 4.7 | 1.18 | 0.41 | 1/4" VacuSeal | 1.02(25.9) | 1.02(25.9) | ||||||||||
| 6M | 0.193 | 4.9 | 1.24 | 0.39 | 3/8" Male NPT | 0.94(23.9) | 0.94(23.9) | ||||||||||
| 6A | 0.193 | 4.9 | 1.24 | 0.39 | 3/8" A- | 1.14(29.0) | 1.14(29.0) | ||||||||||
| 6Z | 3/8" - | ||||||||||||||||
| M3A | 0.086 | 2.2 | 0.15 | 0.48 | 3mm A- | 0.98(24.9) | 0.98(24.9) | ||||||||||
| M3Z | 3mm - | ||||||||||||||||
| M6A | 0.188 | 4.8 | 1.18 | 0.41 | 6mm A- | 1.08(27.4) | 1.08(27.4) | ||||||||||
| M6Z | 6mm - | ||||||||||||||||
| M8A | 0.193 | 4.9 | 1.24 | 0.48 | 8mm A- | 1.11(28.2) | 1.11(28.2) | ||||||||||
| M8Z | 8mm - | ||||||||||||||||
| 4F | PR6 | 0.281 | 7.1 | 3.19 | 0.28 | 1/4" Female NPT | 1.19(30.2) | 1.19(30.2) | 0.67(17.0) | 0.56(14.2) | 1.49(37.8) | 0.99(25.1) | 2.40(61.0) | ||||
| 6A | 0.281 | 7.1 | 3.19 | 0.28 | 3/8" A- | 1.33(33.8) | 1.33(33.8) | ||||||||||
| 6Z | 3/8" - | ||||||||||||||||
| 8F | 0.281 | 7.1 | 3.19 | 0.28 | 1/2" Female NPT | 1.44(36.6) | 1.44(36.6) | ||||||||||
| 8M | 0.281 | 7.1 | 3.19 | 0.28 | 1/2" Male NPT | 1.32(33.5) | 1.32(33.5) | ||||||||||
| 8A | 0.281 | 7.1 | 3.19 | 0.28 | 1/2" A- | 1.44(36.6) | 1.44(36.6) | ||||||||||
| 8Z | 1/2" - | ||||||||||||||||
| M8A | 0.250 | 6.4 | 2.84 | 0.29 | 8mm A- | 1.30(33.0) | 1.30(33.0) | ||||||||||
| M8Z | 8mm - | ||||||||||||||||
| M10A | 0.281 | 7.1 | 3.19 | 0.28 | 10mm A- | 1.34(34.0) | 1.34(34.0) | ||||||||||
| M10Z | 10mm - | ||||||||||||||||
| M12A | 0.281 | 7.1 | 3.19 | 0.28 | 12mm A- | 1.47(37.3) | 1.47(37.3) | ||||||||||
| M12Z | 12mm - | ||||||||||||||||
Types Of Plug Valves
| Plug Valves Manufacturer | Plug Valves Supplier |
| Plug Valves Stock | Industrial Plug Relief Valves |
| Lubricant Plug Valve | Non-Lubricated Plug Valve |
| Lift-type plug valve | Eccentric Plug Valve |
| Expanding Plug Valve | Steel Safety Plug Valves |
| Alloy Steel Plug Valves | Aluminium Plug Valves |
| Brass Plug Valves | Bronze Plug Valves |
| Elastomer sleeved plug valve | Fully lined plug valve |
Call +91 9833263204 or Click here to send enquiry for Plug Valves
Other Material Grades of Plug Valves
| DESCRIPTION | UNS GRADE | FORGING | CASTING | BARSTOCK |
|---|---|---|---|---|
| Carbon Steel | K30504 | A105 | A216 WCB | A105 |
| Low Temp Carbon | K03011 | A350 LF2 | A352 LCB | A350 LF2 |
| High Yield Steel | K03014 | A694 F60 | - | A694 F60 |
| 3 1/2 Nickel Steel | K32025 | A350 LF3 | A352 LC3 | A350 LF3 |
| 5 Chrome, 1/2 Moly | K41545 | A182 F5 | A217 C5 | A182 F5 |
| 1 1/4 Chrome, 1/2 Moly | K11597 | A182 F11 | A217 WC6 | A182 F11 |
| 2 1/4 Chrome, 1 Moly | K21590 | A182 F22 | A217 WC9 | A182 F22 |
| 9 Chrome, 1 Moly | K90941 | A182 F9 | A217 WC6 | A182 F9 |
| 13 Chrome | S41000 | A182 F6A | A351 CA15 | A276 or A479 410 |
| 304 | S30400 | A182 F304 | A351 CF8 | A276 or A479 304 |
| 304L | S30403 | A182 F304L | A351 CF3 | A276 or A479 304L |
| 316 | S31600 | A182 F316 | A351 CF8M | A276 or A479 316 |
| 316L | S31603 | A182 F316L | A351 CF3M | A276 or A479 316L |
| 317L | S31703 | A182 F317L | A351 CG8M | A276 or A479 317L |
| 321 | S32100 | A182 F321 | - | A276 or A479 321 |
| 347 | S34700 | A182 F347 | A351 CF8C | A276 or A479 347 |
| 17-4PH | S17400 | A564 630 | - | - |
| Alloy 400 | N04400 | B564 N04400 | A494 M35-1 | B164 N04400 |
| Alloy K500 | N05500 | - | - | B865 N05500 |
| Alloy 800 | N08800 | B564 N08810 | - | B408 N08800 |
| Alloy 825 | N08825 | - | - | B425 N08825 |
| Alloy 600 | N06600 | B564 N06600 | A494 CY40 | B166 N06600 |
| Alloy 625 | N06625 | B564 N06625 | A494 CW 6MC | B446 N06625 |
| Alloy B2 | N10665 | B564 N10665 | A494 N 12MV | B335 N10665 |
| Alloy C | N10002 | - | A494 CW6M | - |
| Alloy C22 | N06022 | B574 N06022 | A494 CX2MW | B574 N06022 |
| Alloy C276 | N10276 | B564 N10276 | A494 CW12 MW | B574 N10276 |
| 22% Duplex | S31803 | A182 F51 | A890 Gr 4A | A276 or A479 S31803 |
| 25% Duplex | S32750 or 32760 | A182 F53 | A890 Gr 6A | A276 or A479 S32750 or 60 |
| 254SMO | S31254 | A182 F44 | A351 CK3MCuN | A182 F44 |
| 904L | N08904 | B625 N08904 | - | B649 N08904 |
| Titanium | R50400 | B381 F2 | B367 C2 | B348 Gr 2 |
Plug Valves Sizes
| Plug Valves size guide | Plug Valves size chart | Plug Valves size table |
| Plug Valves price | Plug Valves specifications | Plug Valves dimensions |
Plug Valves Price List
| Plug Valves price in india | Plug Valves price list | Plug Valves price |
| Plug Valves price per kg | Plug Valves rate |
Plug Valves Stock
| Plug Valves ready stock | Plug Valves stockist | Plug Valves standard list |
Plug Valves Application
| Off-Shore Oil Drilling Companies | Power Generation | Petrochemicals | Gas Processing |
| Specialty Chemicals | Pharmaceuticals | Pharmaceutical Equipment | Chemical Equipment |
| Sea Water Equipment | Heat Exchangers | Condensers | Pulp & Paper Industry |
Plug Valves Manufacturer & Supplier
| Plug Valves manufacturer in india | Plug Valves supplier in india | Plug Valves manufacturer in Mumbai |
Plug Valves Exporters & Suppliers
Exporting Plug Valves to Countries
We are exporting Plug Valves to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying Plug Valves to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
