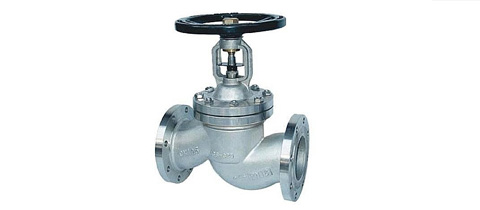

Globe Valve
Industrial Globe Valves, Globe Control Valve, Globe Steam Valves Manufacturers & Supplier in India
Stainless Steel Globe Valves, Carbon Steel Globe Valves, Alloy Steel Globe Valves, Brass Globe Valves Stockist & Dealer
A Globe valve generally consists of a moving element which regulates the fluid flow in a valve or pump system. Nakshatra Steel & Alloys is an eminent Globe Valves Manufacturer & Supplier. The distinguished properties of our Industrial Globe Valves make them world famous. We have all the goods available in our Globe Valves Stock, and are ready for shipment.
We fabricate a variety of Globe Valve Types which we offer at affordable market prices. Keeping the customer’s necessary globe valve specification in view, we finely finish our materials. We own a crew of professional clientele who always give positive feedback about our Flanged End Globe Valve and Screwed End Globe Valve.
For flawlessness and dimensional accuracy, we use modern machinery in the manufacturing process of Butt Weld End Globe Valves and Socket Weld End Globe Valves. Our Stainless Steel Globe Valves are easy to install and user friendly.
The raw material which is used to fabricate Alloy Steel Globe Valves is perfectly checked for purity, to ensure their restlessness. Customized Aluminium Globe Valves of various sizes are designed to make them suit the client’s requirement. Due to the exemplary properties, our Brass Globe Valves and Bronze Globe Valves are globally exported.
You can directly place your order from our web page. All prices of our goods and services are gracefully showcased. In case of any queries, feel free to get in touch with us. Hurry up!
Globe Valve Specifications:
| Type | : | Bolted Bonnet O.S. & Y Type Rising Stem |
| Size | : | 15mm to 1000 mm |
| Pressure Rating | : | ASA 125#, 150#, 300#, 600#, 900#, 1500#, 2500#, PN 16, PN 40, PN 64 |
| Design & Mfg. Standard | : | BS-1873, ND-16, ND-40 |
| Inspection & Testing Standard | : | API 598 / BS 6755 Part-1 |
| Body Material | : | CS, SS, AS, WCB, LCB, WC6, WC9, Cast Iron, CF8, CF8M, Alloy 20 |
| Trim Materials | : | 13% Cr. Stellited, AISI 304/316/Monel |
| End Connection | : | Screwed to BSP, BSPT, NPT, Socket Weld, Flanged Ends, Ring Type Joint(RTJ), Butt Welded as per ANSI B 16.5 / B 16.25 |
| Face to Face Dimension | : | ANSI B 16.10 |
| Operation | : | Manual, Gear and Electrical Actuated |
Dimensions of Globe Valve
Standards
Standards
| Parameter | Standard | ||
| Design | Gate Valves | ASME B16.34 | API 600 |
| Globe Valves | API 623 | ||
| Check Valves | API 594 | ||
| Ends | Face-to-face/ End-to-end Dimensions | ASME B16.10 | |
| End Flange Dimensions | ASME B16.5/ 16.47 | ||
| Butt-weld End Dimensions | ASME B16.25 | ||
| Forged Fittings, Socket welding & Threading Dimensions | ASME B16.11 | ||

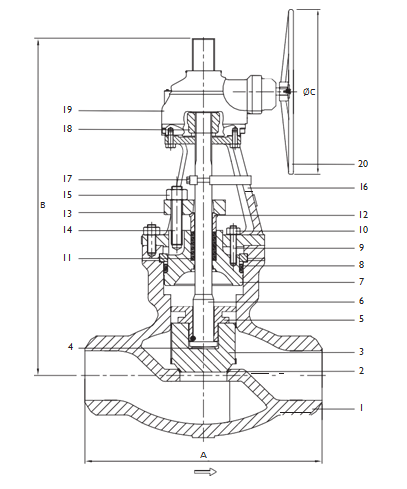

Globe Valves - T Pattern - Dimensions & Weights
Globe Valves - T Pattern - Dimensions & Weights
 | |||||||||||||||||
| Size | Class 600 | Class 900 | Class 1500 | Class 2500 | |||||||||||||
| NPS | DN | A | B | C | Wt. | A | B | C | Wt. | A | B | C | Wt. | A | B | C | Wt. |
| 2 | 50 | 292 | 425 | 228 | 40 | 216 | 575 | 406 | 65 | 216 | 550 | 406 | 85 | 279 | 750 | 508 | 155 |
| 3 | 80 | 356 | 540 | 305 | 65 | 305 | 590 | 406 | 75 | 305 | 690 | 500 | 170 | 368 | 712 | 486 | 240 |
| 4 | 100 | 432 | 610 | 457 | 165 | 356 | 675 | 630 | 130 | 406 | 710 | 630 | 280 | 457 | 800 | 710 | 340 |
| 6 | 150 | 559 | 805 | 710 | 270 | 508 | 795 | 710 | 350 | 559 | 920 | 900 | 530 | 610 | 1200 | 900 | 815 |
| 8 | 200 | 660 | 1135 | 900 | 645 | 660 | 1020 | 900 | 640 | 711 | 1280 | 710 | 915 | 762 | 1450 | 900 | 1400 |
| 10 | 250 | 914 | 1690 | 900 | 2150 | ||||||||||||
| 16 | 400 | 1397 | 2435 | 1000 | 5555 | ||||||||||||
| 18 450 1397 2645 1000 6900 | |||||||||||||||||

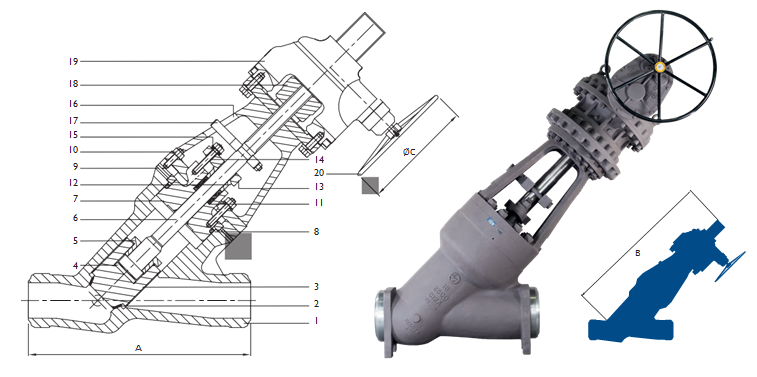

Globe Valves - Y Pattern- Dimensions & Weights
Globe Valves - Y Pattern- Dimensions & Weights
 | |||||||||||||||
| Size | Class 900 | Class 1500 | Class 2500 | ||||||||||||
| NPS | DN | A | B | C | Wt. | A | B | C | Wt. | A | B | C | Wt. | ||
| 2 | 50 | 368 | 620 | 406 | 60 | 368 | 620 | 406 | 60 | 451 | 620 | 406 | 110 | ||
| 3 | 80 | 381 | 630 | 508 | 80 | 470 | 710 | 400 | 110 | 578 | 875 | 630 | 185 | ||
| 4 | 100 | 457 | 865 | 500 | 170 | 546 | 875 | 630 | 170 | 673 | 920 | 710 | 330 | ||
| 6 | 150 | 610 | 1290 | 630 | 270 | 705 | 1200 | 900 | 410 | 914 | 1460 | 750 | 990 | ||
| 8 | 200 | 737 | 1710 | 710 | 610 | 832 | 1580 | 710 | 780 | 1022 | 1890 | 610 | 1900 | ||
| 10 | 250 | 838 | 1900 | 1000 | 830 | 991 | 1890 | 800 | 1375 | 1270 | 1960 | 900 | 2100 | ||
| 12 | 300 | 965 | 2080 | 1000 | 1300 | 1130 | 2040 | 900 | 2250 | 1041 | 2720 | 1000 | 3000 | ||
| 14 | 350 | 1029 | 2350 | 900 | 1550 | 1257 | 2390 | 1000 | 2570 | 1118 | 2760 | 710 | 4200 | ||
| 18 | 450 | 1219 | 2730 | 710 | 2800 | 1537 | 2900 | 1000 | 3500 | 1537 | 3020 | 1000 | 7150 | ||
All dimensions in mm and weights in kg
Types Of Globe Valves
| Globe Valves Supplier | Globe Valves Manufacturer |
| Globe Valves Stock | Industrial Globe Valves |
| Flanged End Globe Valve | Screwed End Globe Valve |
| Butt Weld End Globe Valve | Socket Weld End Globe Valve |
| Steel Globe Valves | Alloy Steel Globe Valves |
| Aluminium Globe Valves | Brass Globe Valves |
| Bronze Globe Valves |
Call +91 9833263204 or Click here to send enquiry for Globe Valve
Other Material Grades of Globe Valves
| DESCRIPTION | UNS GRADE | FORGING | CASTING | BARSTOCK |
|---|---|---|---|---|
| Carbon Steel | K30504 | A105 | A216 WCB | A105 |
| Low Temp Carbon | K03011 | A350 LF2 | A352 LCB | A350 LF2 |
| High Yield Steel | K03014 | A694 F60 | - | A694 F60 |
| 3 1/2 Nickel Steel | K32025 | A350 LF3 | A352 LC3 | A350 LF3 |
| 5 Chrome, 1/2 Moly | K41545 | A182 F5 | A217 C5 | A182 F5 |
| 1 1/4 Chrome, 1/2 Moly | K11597 | A182 F11 | A217 WC6 | A182 F11 |
| 2 1/4 Chrome, 1 Moly | K21590 | A182 F22 | A217 WC9 | A182 F22 |
| 9 Chrome, 1 Moly | K90941 | A182 F9 | A217 WC6 | A182 F9 |
| 13 Chrome | S41000 | A182 F6A | A351 CA15 | A276 or A479 410 |
| 304 | S30400 | A182 F304 | A351 CF8 | A276 or A479 304 |
| 304L | S30403 | A182 F304L | A351 CF3 | A276 or A479 304L |
| 316 | S31600 | A182 F316 | A351 CF8M | A276 or A479 316 |
| 316L | S31603 | A182 F316L | A351 CF3M | A276 or A479 316L |
| 317L | S31703 | A182 F317L | A351 CG8M | A276 or A479 317L |
| 321 | S32100 | A182 F321 | - | A276 or A479 321 |
| 347 | S34700 | A182 F347 | A351 CF8C | A276 or A479 347 |
| 17-4PH | S17400 | A564 630 | - | - |
| Alloy 400 | N04400 | B564 N04400 | A494 M35-1 | B164 N04400 |
| Alloy K500 | N05500 | - | - | B865 N05500 |
| Alloy 800 | N08800 | B564 N08810 | - | B408 N08800 |
| Alloy 825 | N08825 | - | - | B425 N08825 |
| Alloy 600 | N06600 | B564 N06600 | A494 CY40 | B166 N06600 |
| Alloy 625 | N06625 | B564 N06625 | A494 CW 6MC | B446 N06625 |
| Alloy B2 | N10665 | B564 N10665 | A494 N 12MV | B335 N10665 |
| Alloy C | N10002 | - | A494 CW6M | - |
| Alloy C22 | N06022 | B574 N06022 | A494 CX2MW | B574 N06022 |
| Alloy C276 | N10276 | B564 N10276 | A494 CW12 MW | B574 N10276 |
| 22% Duplex | S31803 | A182 F51 | A890 Gr 4A | A276 or A479 S31803 |
| 25% Duplex | S32750 or 32760 | A182 F53 | A890 Gr 6A | A276 or A479 S32750 or 60 |
| 254SMO | S31254 | A182 F44 | A351 CK3MCuN | A182 F44 |
| 904L | N08904 | B625 N08904 | - | B649 N08904 |
| Titanium | R50400 | B381 F2 | B367 C2 | B348 Gr 2 |
Globe Valves Sizes
| Globe Valves size guide | Globe Valves size chart | Globe Valves size table |
| Globe Valves price | Globe Valves specifications | Globe Valves dimensions |
Globe Valves Price List
| Globe Valves price in india | Globe Valves price list | Globe Valves price |
| Globe Valves price per kg | Globe Valves rate |
Globe Valves Stock
| Globe Valves ready stock | Globe Valves stockist | Globe Valves standard list |
Globe Valves Application
| Off-Shore Oil Drilling Companies | Power Generation | Petrochemicals | Gas Processing |
| Specialty Chemicals | Pharmaceuticals | Pharmaceutical Equipment | Chemical Equipment |
| Sea Water Equipment | Heat Exchangers | Condensers | Pulp & Paper Industry |
Globe Valves Manufacturer & Supplier
| Globe Valves manufacturer in india | Globe Valves supplier in india | Globe Valves manufacturer in Mumbai |
Globe Valve Exporters & Suppliers
Exporting Globe Valve to Countries
We are exporting Globe Valve to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying Globe Valve to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
