PFA Lined Valve
Stainless Steel PFA Lined Valves, PFA Lined Ball Valves, PFA Lined Plug Valves, PFA Lined Butterfly Valve, PFA Lined Check Valves Dealer & Wholesaler
Manufacturer & Supplier, Exporter of PFA Lined Valves in India
PFA Lined Valves are vital industrial requirements which are widely used in many applications. Among many PFA Lined Valves Supplier & Manufacturers in the contemporary market, Nakshatra Steel & Alloys is a renowned one. For the distinguished properties of our PFA lined valves types, they have a huge demand in the market. That is why we maintain sufficient quantity of PFA Lined Valves Stock in our warehouse.
We have an exemplary collection of PFA Lined Ball Valves and PFA Lined Plug Valves which are even exported to many countries across the world. We design our PFA Lined Diaphragm Valves in various grades, standards, and specifications. Our team finely finishes our PFA Lined Butterfly Valves and PFA Lined Check Valves keeping all the national and international standards in view.
Depending on the PFA Lined Valves Specification, all the dimensions of the mechanisms are precisely polished. We have a crew of professional clientele who are well satisfied with the quality of our Stainless Steel PFA Lined Valves and Alloy Steel PFA Lined Valves. We deploy modern and tested machinery, to give rise to flawless Aluminium PFA Lined Valves and Brass PFA Lined Valves. We train all of our employment personnel to use latest design techniques for fabricating Bronze PFA Lined Valves.
As soon as you place your order, our team swiftly delivers your goods to the door step. If you have any queries, feel free to communicate with us. Hurry up!
PFA Lined Valve Specifications:
| Size | : | 25mm to 200mm |
| Service | : | FEP/PFA (FEP) Max -160 C |
| Temp | : | FEP/PFA' (PFA) Max -205°C |
| Thickness | : | 3.0 to 3.5 mm Mini. Over all wetted parts |
| Material | : | Ductile Iron, CS |
| Standard | : | API-599, BS-5158, BS-5351, BS-5159, BS-5155 |
| Spark Test | : | 15 k.v. D.C |
| Type | : | Butterfly, Plug, Ball, Check & Diphragm Valves, FEP, PFA |
| Ends | : | Wafer & Lugged End Type for Butterfly & Flanged End |
Dimensions of PFA Lined Valve

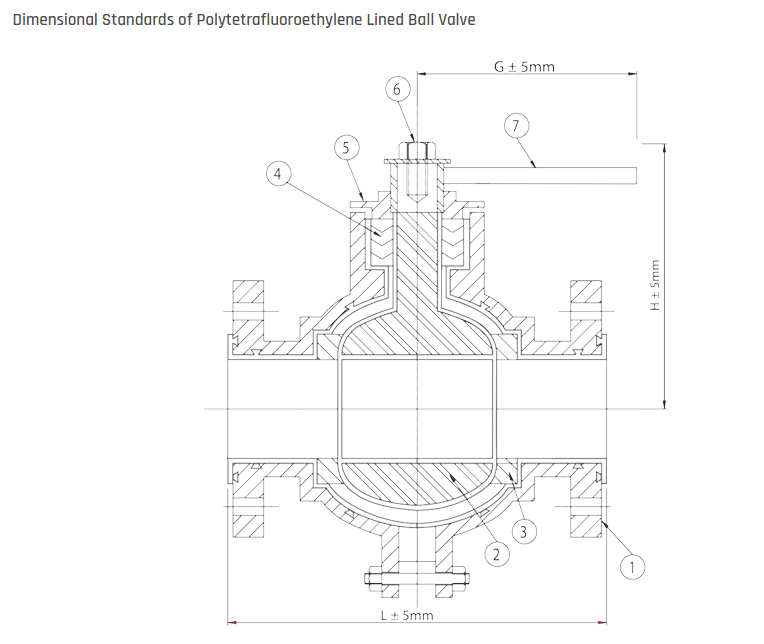

PFA Ball Valve
PFA Ball Valve
 |
||||
| SIZE | L | G | H | WEIGHT |
| 15 | 108 | 134 | 85 | 2.15 Kg |
| 20 | 117 | 133 | 85 | 3.10 Kg |
| 25 | 127 | 158 | 95 | 3.75 Kg |
| 40 | 165 | 228 | 120 | 6.75 Kg |
| 50 | 178 | 228 | 135 | 9.75 Kg |
| 80 | 203 | 325 | 165 | 19.50 Kg |
| 100 | 229 | 377 | 180 | 31.00 Kg |
| 150 | 267 | 548 | 250 | 56.00 Kg |

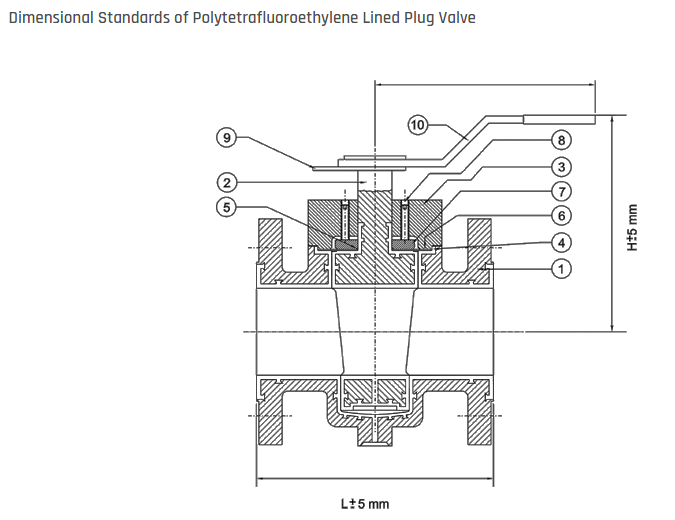

PFA Lined Plug Valve
PFA Lined Plug Valve
 |
|||
| SIZE | L | G | H |
| 15 | 108 | 158 | 95 |
| 20 | 117 | 228 | 100 |
| 25 | 127 | 228 | 105 |
| 40 | 165 | 325 | 130 |
| 50 | 178 | 325 | 140 |
| 80 | 203 | 548 | 170 |
| 100 | 228 | 548 | 217 |
| 150 | 268 | 575 | 300 |

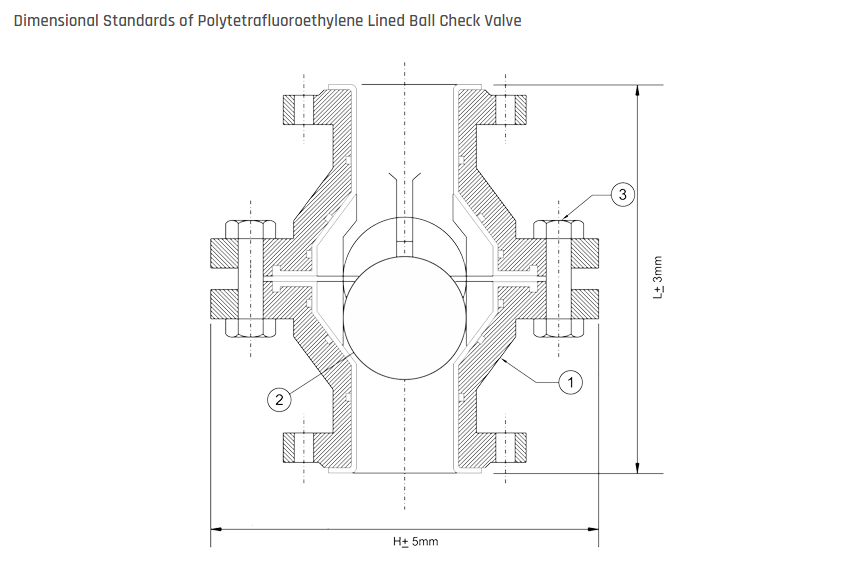

PFA Lined Ball Check Valve
PFA Lined Ball Check Valve
 |
||
| SIZE | L | H |
| 15 | 130 | 105 |
| 20 | 150 | 115 |
| 25 | 127 | 125 |
| 40 | 165 | 160 |
| 50 | 178 | 175 |
| 80 | 203 | 240 |
| 100 | 229 | 270 |
| 150 | 400 | 330 |
| 200 | 600 | 381 |

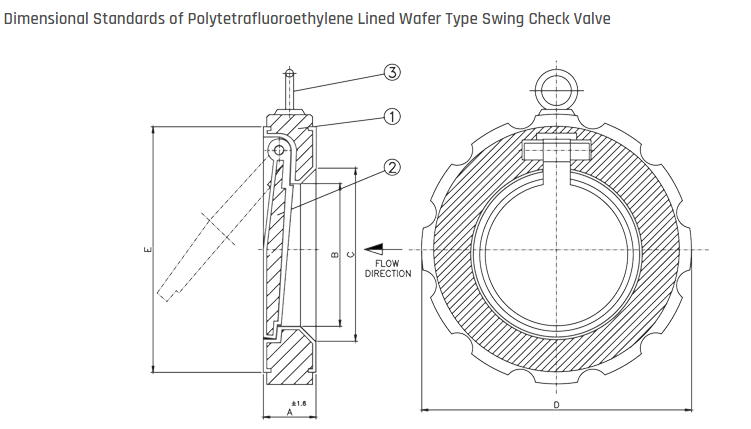

PFA Lined Wafer Type Swing Check Valve
PFA Lined WAFER TYPE SWING CHECK VALVE
 |
|||||
| NB | A | B | C | D | E |
| 40 | 30 | 20 | 35 | 95 | 70 |
| 50 | 35 | 30 | 52 | 110 | 90 |
| 80 | 46 | 42 | 64 | 142 | 124 |
| 100 | 52 | 65 | 80 | 180 | 152 |
| 150 | 56 | 111 | 128 | 233 | 207 |
| 200 | 60 | 133 | 175 | 295 | 260 |
| 250 | 68 | 184 | 224 | 348 | 317 |
| 300 | 78 | 232 | 272 | 398 | 367 |

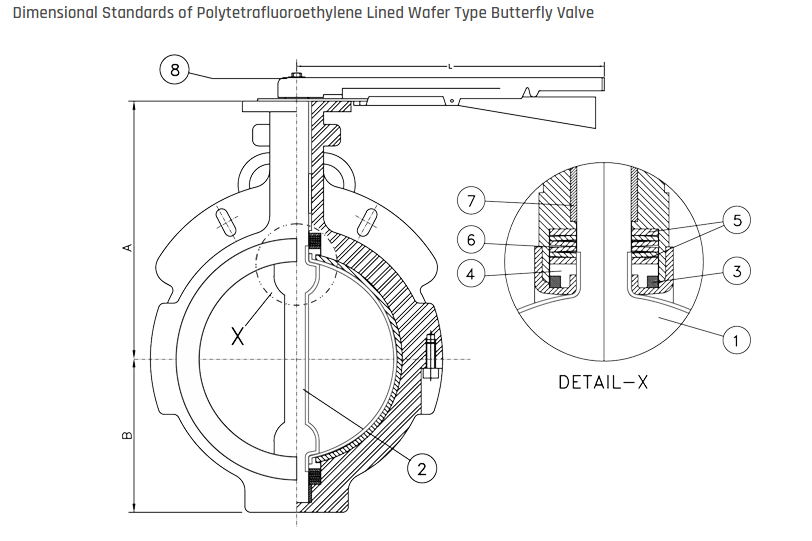

PFA Lined Wafer Type Butterfly Valve
PFA Lined Wafer Type Butterfly Valve
 |
||||
| SIZE | F/F | A | B | L |
| 50 | 43 | 100 | 70 | 265 |
| 65 | 46 | 114 | 70 | 265 |
| 80 | 46 | 120 | 80 | 265 |
| 100 | 52 | 158 | 110 | 350 |
| 125 | 56 | 175 | 125 | 350 |
| 150 | 56 | 190 | 130 | 430 |
| 200 | 60 | 220 | 160 | 430 |
| 250 | 68 | 250 | 185 | G.Box |
| 300 | 78 | 285 | 215 | G.Box |
| 350 | 78 | 325 | 285 | G.Box |

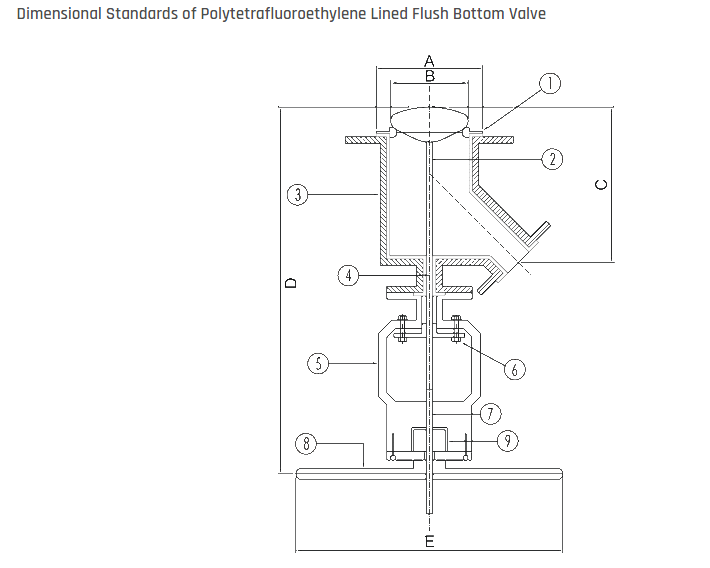

PFA Lined Flush Bottom Valve
PFA Lined Flush Bottom Valve
 |
|||||
| SIZE | A | B | C | E | E |
| 50 X 25 | 90 | 40 | 100 | 220 | 150 |
| 80 X 50 | 127 | 70 | 160 | 430 | 200 |
| 100 X 80 | 160 | 88 | 220 | 500 | 200 |
| 150 X 100 | 210 | 140 | 330 | 600 | 250 |

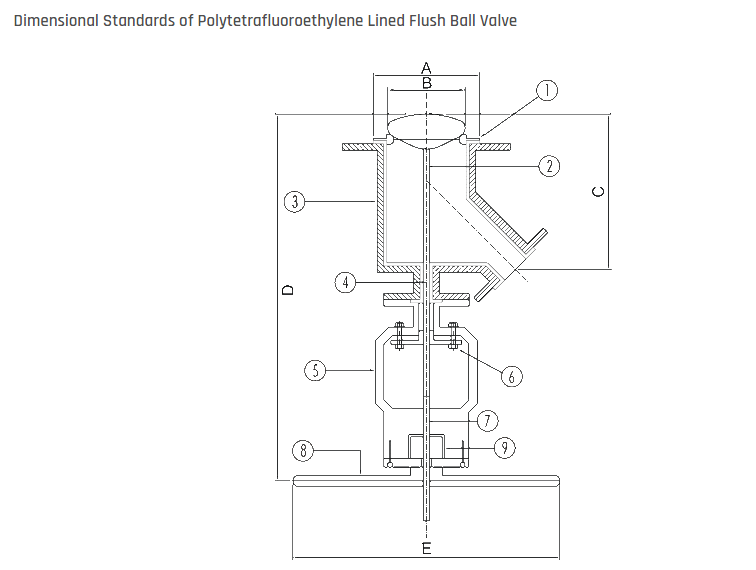

PFA Lined Flush Ball Valve
PFA Lined Flush Ball Valve
 |
|||||
| SIZE | A | B | C | E | E |
| 50 X 25 | 90 | 40 | 100 | 220 | 150 |
| 80 X 50 | 127 | 70 | 160 | 430 | 200 |
| 100 X 80 | 160 | 88 | 220 | 500 | 200 |
| 150 X 100 | 210 | 140 | 330 | 600 | 250 |
Types Of PFA Lined Valves
| PFA Lined Valves Supplier | PFA Lined Valves Manufacturer |
| PFA Lined Valves Stock | PFA Lined Ball Valve |
| PFA Lined Plug Valve | PFA Lined Diaphragm Valve |
| PFA Lined Butterfly Valve | PFA Lined Check Valve |
| Stainless Steel PFA Lined Valves | Alloy Steel PFA Lined Valves |
| Aluminium PFA Lined Valves | Brass PFA Lined Valves |
| Bronze PFA Lined Valves |
Call +91 9833263204 or Click here to send enquiry for PFA Lined Valve
Other Material Grades of PFA Lined Valves
| DESCRIPTION | UNS GRADE | FORGING | CASTING | BARSTOCK |
|---|---|---|---|---|
| Carbon Steel | K30504 | A105 | A216 WCB | A105 |
| Low Temp Carbon | K03011 | A350 LF2 | A352 LCB | A350 LF2 |
| High Yield Steel | K03014 | A694 F60 | - | A694 F60 |
| 3 1/2 Nickel Steel | K32025 | A350 LF3 | A352 LC3 | A350 LF3 |
| 5 Chrome, 1/2 Moly | K41545 | A182 F5 | A217 C5 | A182 F5 |
| 1 1/4 Chrome, 1/2 Moly | K11597 | A182 F11 | A217 WC6 | A182 F11 |
| 2 1/4 Chrome, 1 Moly | K21590 | A182 F22 | A217 WC9 | A182 F22 |
| 9 Chrome, 1 Moly | K90941 | A182 F9 | A217 WC6 | A182 F9 |
| 13 Chrome | S41000 | A182 F6A | A351 CA15 | A276 or A479 410 |
| 304 | S30400 | A182 F304 | A351 CF8 | A276 or A479 304 |
| 304L | S30403 | A182 F304L | A351 CF3 | A276 or A479 304L |
| 316 | S31600 | A182 F316 | A351 CF8M | A276 or A479 316 |
| 316L | S31603 | A182 F316L | A351 CF3M | A276 or A479 316L |
| 317L | S31703 | A182 F317L | A351 CG8M | A276 or A479 317L |
| 321 | S32100 | A182 F321 | - | A276 or A479 321 |
| 347 | S34700 | A182 F347 | A351 CF8C | A276 or A479 347 |
| 17-4PH | S17400 | A564 630 | - | - |
| Alloy 400 | N04400 | B564 N04400 | A494 M35-1 | B164 N04400 |
| Alloy K500 | N05500 | - | - | B865 N05500 |
| Alloy 800 | N08800 | B564 N08810 | - | B408 N08800 |
| Alloy 825 | N08825 | - | - | B425 N08825 |
| Alloy 600 | N06600 | B564 N06600 | A494 CY40 | B166 N06600 |
| Alloy 625 | N06625 | B564 N06625 | A494 CW 6MC | B446 N06625 |
| Alloy B2 | N10665 | B564 N10665 | A494 N 12MV | B335 N10665 |
| Alloy C | N10002 | - | A494 CW6M | - |
| Alloy C22 | N06022 | B574 N06022 | A494 CX2MW | B574 N06022 |
| Alloy C276 | N10276 | B564 N10276 | A494 CW12 MW | B574 N10276 |
| 22% Duplex | S31803 | A182 F51 | A890 Gr 4A | A276 or A479 S31803 |
| 25% Duplex | S32750 or 32760 | A182 F53 | A890 Gr 6A | A276 or A479 S32750 or 60 |
| 254SMO | S31254 | A182 F44 | A351 CK3MCuN | A182 F44 |
| 904L | N08904 | B625 N08904 | - | B649 N08904 |
| Titanium | R50400 | B381 F2 | B367 C2 | B348 Gr 2 |
PFA Lined Valves Sizes
| PFA Lined Valves size guide | PFA Lined Valves size chart | PFA Lined Valves size table |
| PFA Lined Valves price | PFA Lined Valves specifications | PFA Lined Valves dimensions |
PFA Lined Valves Price List
| PFA Lined Valves price in india | PFA Lined Valves price list | PFA Lined Valves price |
| PFA Lined Valves price per kg | PFA Lined Valves rate |
PFA Lined Valves Stock
| PFA Lined Valves ready stock | PFA Lined Valves stockist | PFA Lined Valves standard list |
PFA Lined Valves Application
| Off-Shore Oil Drilling Companies | Power Generation | Petrochemicals | Gas Processing |
| Specialty Chemicals | Pharmaceuticals | Pharmaceutical Equipment | Chemical Equipment |
| Sea Water Equipment | Heat Exchangers | Condensers | Pulp & Paper Industry |
PFA Lined Valves Manufacturer & Supplier
| PFA Lined Valves manufacturer in india | PFA Lined Valves supplier in india | PFA Lined Valves manufacturer in Mumbai |
PFA Lined Valves Exporters & Suppliers
Exporting PFA Lined Valves to Countries
We are exporting PFA Lined Valves to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying PFA Lined Valves to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
