Air Valves
Air Valves Manufacturers, Air Release Valves Suppliers, Air Relief Exporters in India
Stainless Steel Air Valves, Carbon Steel Air Release Valves, Alloy Steel Air Valves, Brass Air Valves, Aluminium Air Relief Valves Stockist & Exporter
Air Valves are the mechanisms which play key role in many industrial applications. Nakshatra Steel & Alloys is an acclaimed Air Valves Manufacturer & Supplier. We trade Air Release Valves and Air Relief Valves of customized sizes and shapes according to our client’s necessity. For the large demand of our products, we always maintain large quantity of air valves stock in our warehouse.
Our Air Release Valves Brand is globally famous, for which we export them to many countries across the world. The raw material which is used to fabricate Cast Iron Air Valve and Double Acting Air Valves is attained from genuine vendors of the market. We maintain friendly relations with all of our professional clientele who are well satisfied with the quality of our Kinetic Air Valves.
We contribute Single and Double Air Lock Valve at economical market prices. Keeping all the national and international standards in view, our Single / Double Orifice Air Valves are finely finished. Tamper Proof Air Valves of different grades and specifications are designed with extreme dimensional accuracy.
Our SS Air Release Valves and Alloy Steel Air Valves exhibit great corrosion and pitting resistance. On the other hand, our Aluminium Air Release Valves and Brass Air Release Valves have wide range of industrial applications.
As soon as you place your order, we deliver the product to your door step. We perfectly pack our goods in wooden boxes to ensure damage free transit. In case of any queries, do get in touch with us. Hurry up!
Air Valves Specifications:
| Size | : | 25 to 600 mm |
| Pressure Rating | : | ASA 125#, 150#, 300#, PN1.6, PN6, PN10, PN16, PN 20 |
| Specification | : | General manufacturing standard, IS: 14845/G&K/AWWA: C-512 |
| Application | : | Water, Stem Hot Water etc. |
| Material | : | CI/CS/SS/DI/GM etc. |
| End Connection | : | Screwed, Flanged End |
| Manufacturing Standard | : | MARK-016, IS 14845 |
| Type | : | Single Acting, Double Acting, Kinetic Type Isolating |
Dimensions of Air Valves
Air Valves for Water

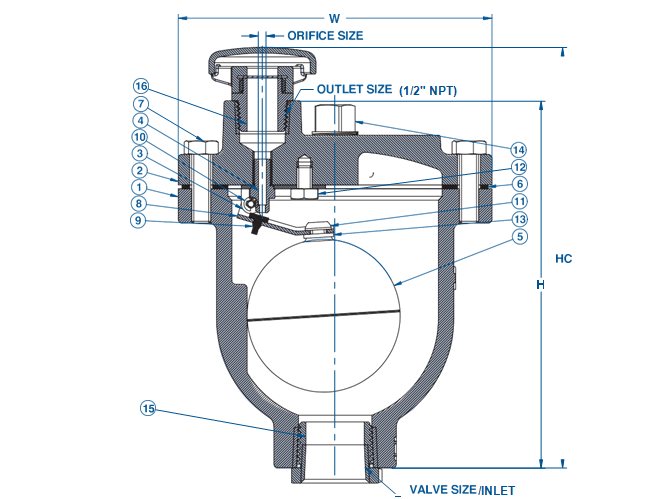

Series WAR Air Release Valves – Simple Lever
Series WAR Air Release Valves – Simple Lever
 |
|||||||
| Valve Size | Orifice Size | Max C.W.P. | Inlet Connection | W |
H |
HC |
Wt. (Lbs.) |
| 1/2"* | 1/16" | 175 | NPT | 4-3/4" | 5-1/4" | 6-1/8" | 6.3 |
| 3/4"* | 1/16" | 175 | NPT | 4-3/4" | 5-1/4" | 6-1/8" | 6.3 |
| 1"* | 1/16" | 175 | NPT | 4-3/4" | 5-1/4" | 6-1/8" | 6.3 |
| 1/2"* | 3/32" | 175 | NPT | 5-1/8" | 6" | 6-7/8" | 8.2 |
| 3/4"* | 3/32" | 175 | NPT | 5-1/8" | 6" | 6-7/8" | 8.2 |
| 1" | 3/32" | 175 | NPT | 5-1/8" | 6" | 6-7/8" | 8.2 |
| 1/2"* | 1/16" | 300 | NPT | 5-1/8" | 6" | 6-7/8" | 8.2 |
| 3/4"* | 1/16" | 300 | NPT | 5-1/8" | 6" | 6-7/8" | 8.2 |
| 1" | 1/16" | 300 | NPT | 5-1/8" | 6" | 6-7/8" | 8.2 |
| 3/4"* | 1/8" | 150 | NPT | 6-1/8" | 7" | 7-7/8" | 12.4 |
| 3/4"* | 3/32" | 300 | NPT | 6-1/8" | 7" | 7-7/8" | 12.4 |
| 1" | 1/8" | 150 | NPT | 6-1/8" | 7" | 7-7/8" | 12.4 |
| 1" | 3/32" | 300 | NPT | 6-1/8" | 7" | 7-7/8" | 12.4 |

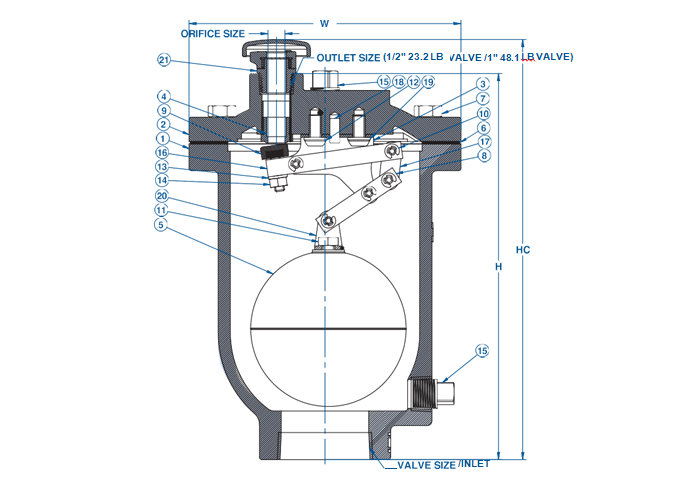

Series WAR Air Release Valves – Compound Lever
Series WAR Air Release Valves – Compound Lever
 |
|||||||
| Valve Size | Orifice Size | Max C.W.P. | Inlet Connection | W |
H |
HC |
Wt. (Lbs.) |
| 1" | 3/16" | 150 | NPT | 7" | 9-15/16" | 10-13/16" | 23.2 |
| 1" | 5/32" | 300 | NPT | 7" | 9-15/16" | 10-13/16" | 23.2 |
| 2" | 3/16" | 150 | NPT | 7" | 9-15/16" | 10-13/16" | 23.2 |
| 2" | 5/32" | 300 | NPT | 7" | 9-15/16" | 10-13/16" | 23.2 |
| 2" | 23/64" | 150 | NPT | 9-1/2" | 12-1/4" | 13-11/32" | 48.1 |
| 2" | 7/32" | 300 | NPT | 9-1/2" | 12-1/4" | 13-11/32" | 48.1 |
| 3" | 23/64" | 150 | NPT | 9-1/2" | 12-1/4" | 13-11/32" | 48.1 |
| 3" | 7/32" | 300 | NPT | 9-1/2" | 12-1/4" | 13-11/32" | 48.1 |
Series WAV-D Water Air/Vacuum Valve (Deep-well Service)

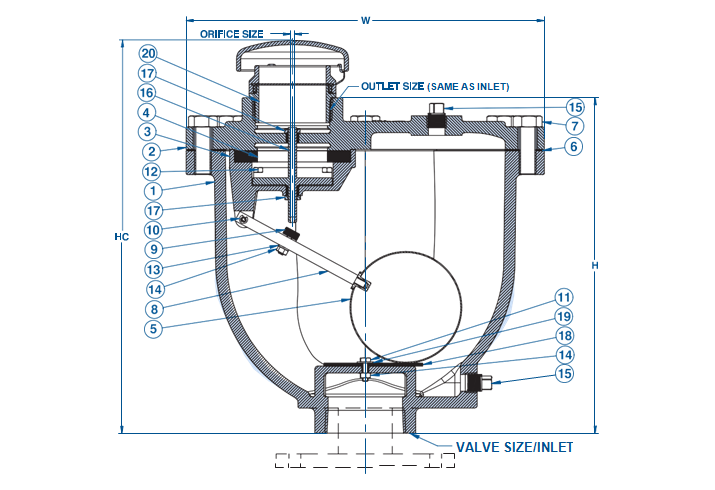

Series WCV Combination Air Valves
Series WCV Combination Air Valves
 |
|||||||
| Valve Size | Orifice Size | Max C.W.P. | Inlet Connection | W |
H |
HC |
Wt. (Lbs.) |
| 1" | 5/64" | 300 | NPT | 11-3/8" | 10-1/2" | 11-5/8" | 40.6 |
| 2" | 3/32" | 300 | NPT | 14" | 13" | 14-7/8" | 75.5 |
| 3" | 3/32" | 300 | NPT | 16" | 15" | 17-9/16" | 114 |
| 3" | 3/32" | 150 | #125 Flg | 16" | 17" | 19-9/16" | 114 |
| 3" | 3/32" | 300 | #250 Flg | 16" | 17-1/2" | 20-1/16" | 114 |
| 4" | 3/32" | 300 | NPT | 18-1/2" | 17" | 20" | 161.9 |
| 4" | 3/32" | 150 | #125 Flg | 18-1/2" | 19" | 22" | 161.9 |
| 4" | 3/32" | 300 | #250 Flg | 18-1/2" | 19-1/2" | 22-1/2" | 161.9 |
| 6" | 6" | 150 | #125 Flg | 21" | 18-3/4" | 20-1/2" | 231 |
| 6" | 6" | 300 | #250 Flg | 21" | 18-3/4" | 20-1/2" | 231 |
| 8" | 8" | 150 | #125 Flg | 25" | 21-11/16" | 23-11/16" | 373 |
| 8" | 8" | 300 | #250 Flg | 25" | 21-11/16" | 23-11/16" | 373 |

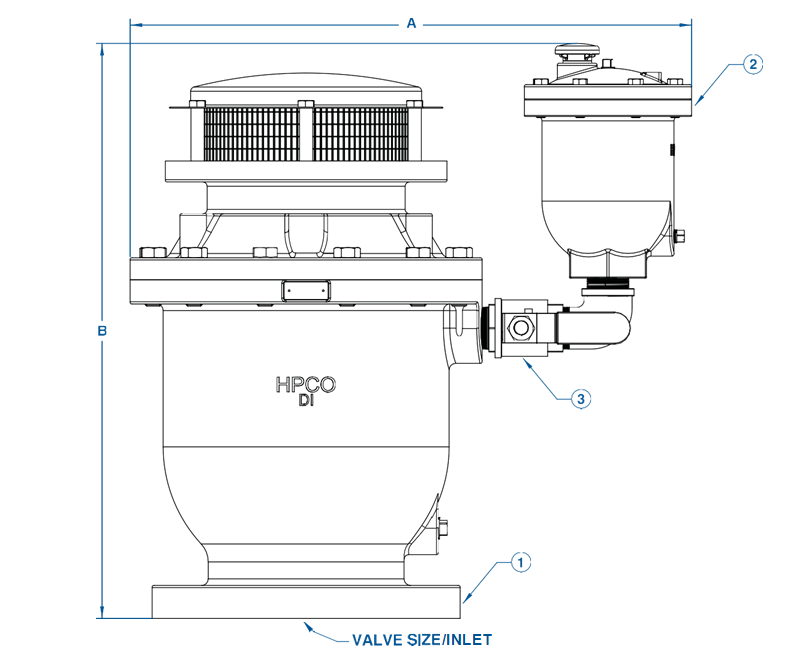

Series WCVD Combination Air Valves (Dual Body)
Series WCVD Combination Air Valves (Dual Body)
 |
||||||||
| Valve Size | Orifice Size | Max C.W.P. | Inlet Connection | Air Vacuum Valve | Air Release Valve |
A |
B |
Wt. (Lbs) |
| 1" | 1/16" | 300 psi | NPT | WAV10-300 | WAR101005-116-300 | 8" | 17" | 33 |
| 2" | 1/16" | 300 psi | NPT | WAV20-300 | WAR101005-116-300 | 10-1/2" | 19" | 60 |
| 3" | 1/16" | 300 psi | NPT | WAV30-300 | WAR101005-116-300 | 10-1/2" | 19" | 62 |
| 4" | 3/16" | 150 psi | 125# Flg | WAV40-150F | WAR101005-316-150 | 20" | 22-1/2" | 131 |
| 4" | 5/32" | 300 psi | 250# Flg | WAV40-300F | WAR101005-532-300 | 20" | 22-1/2" | 139 |
| 10" | 3/16" | 150 psi | 150# Flg | WAV100-150F | WAR101005-316-150 | 28" | 31" | 465 |
| 10" | 5/32" | 300 psi | 300# Flg | WAV100-300F | WAR101005-532-300 | 28" | 31" | 490 |
| 10" | 23/64" | 150 psi | 150# Flg | WAV100-150F | WAR202010-2364-150 | 32" | 32-1/2" | 495 |
| 10" | 7/32" | 300 psi | 300# Flg | WAV100-300F | WAR202010-732-300 | 32" | 32-1/2" | 520 |
| 12" | 3/16" | 150 psi | 150# Flg | WAV120-150F | WAR101005-316-150 | 32" | 35" | 715 |
| 12" | 5/32" | 300 psi | 300# Flg | WAV120-300F | WAR101005-532-300 | 32" | 35" | 740 |
| 12" | 23/64" | 150 psi | 150# Flg | WAV120-150F | WAR202010-2364-150 | 36" | 36" | 745 |
| 12" | 7/32" | 300 psi | 300# Flg | WAV120-300F | WAR202010-732-300 | 36" | 36" | 765 |
| 14" | 3/16" | 150 psi | 150# Flg | WAV140-150F | WAR101005-316-150 | 35" | 38" | 950 |
| 14" | 5/32" | 300 psi | 300# Flg | WAV140-300F | WAR101005-532-300 | 35" | 38" | 975 |
| 14" | 23/64" | 150 psi | 150# Flg | WAV140-150F | WAR202010-2364-150 | 39" | 38" | 975 |
| 14" | 7/32" | 300 psi | 300# Flg | WAV140-300F | WAR202010-732-300 | 39" | 38" | 1000 |
| 16" | 3/16" | 150 psi | 150# Flg | WAV160-150F | WAR101005-316-150 | 38-1/2" | 41" | 1280 |
| 16" | 5/32" | 300 psi | 300# Flg | WAV160-300F | WAR101005-532-300 | 38-1/2" | 41" | 1300 |
| 16" | 23/64" | 150 psi | 150# Flg | WAV160-150F | WAR202010-2364-150 | 42-1/2" | 41" | 1310 |
| 16" | 7/32" | 300 psi | 300# Flg | WAV160-300F | WAR202010-732-300 | 42-1/2" | 41" | 1330 |
Air Valves for WasteWaterWater

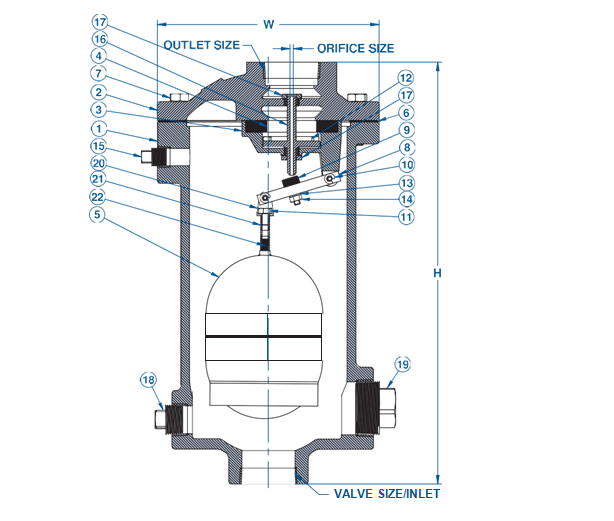

Series WWCV Wastewater Combination Air Valves
Series WWCV Wastewater Combination Air Valves
 |
|||||||
| Valve Size | Outlet Size | Orifice Size | Max C.W.P. | Inlet Connection | W |
H |
Wt. (Lbs.) |
| 2" | 1" | 1/8" | 150 | NPT | 7" | 14-15/16" | 40.57 |
| 2" | 2" | 9/64" | 150 | NPT | 9-1/2" | 18-1/16" | 67.35 |
| 3" | 3" | 11/64" | 150 | NPT | 11" | 23-1/4" | 112.6 |
| 4" | 4" | 11/64" | 150 | NPT | 11" | 23-1/4" | 113 |
Series WCVD Combination Air Valves (Dual Body)
Series WCVD Combination Air Valves (Dual Body)
 |
|||||||||
| Valve Size | Outlet Size | Orifice Size | Max C.W.P. | Air Vacuum Valve | Air Release Valve |
Pipe |
A |
B |
Wt. (Lbs.) |
| 2" x 1" | 1" | 3/16" | 150 | WWAV20-1-150 | WWAR202005-316-150 | 2" | 17-1/4" | 20-1/4" | 86 |
| 2" | 2" | 3/16" | 150 | WWAV20-150 | WWAR202005-316-150 | 2" | 18-1/2" | 20-1/4" | 112 |
| 2" | 2" | 7/16" | 150 | WWAV20-150 | WWAR202010-716-150 | 2" | 19-3/4" | 22-3/4" | 140 |
| 3" | 3" | 3/16" | 150 | WWAV30-150 | WWAR202005-316-150 | 2" | 18-1/2" | 22-3/4" | 112 |
| 3" | 3" | 7/16" | 150 | WWAV30-150 | WWAR202010-716-150 | 2" | 19-3/4" | 22-3/4" | 140 |
| 4" | 4" | 150 | WWAV40-150F | WWAR202005-316-150 | 2" | 21" | 36-1/2" | 220 | 220 |
| 4" | 4" | 150 | WWAV40-150F | WWAR202010-716-150 | 2" | 22-1/8" | 36-1/2" | 250 | 250 |
| 6" | 6" | 150 | WWAV60-150F | WWAR202005-316-150 | 2" | 23-5/8" | 36-1/2" | 294 | 294 |
| 6" | 6" | 150 | WWAV60-150F | WWAR202010-716-150 | 2" | 24-1/8" | 36-1/2" | 320 | 320 |
| 8" | 8" | 150 | WWAV80-150F | WWAR202005-316-150 | 2" | 26-3/4" | 41-1/4" | 468 | 468 |
| 8" | 8" | 150 | WWAV80-150F | WWAR202010-716-150 | 2" | 28" | 41-1/4" | 495 | 495 |
Types Of Air Valves
| Air Valves Manufacturer | Air Valves Supplier |
| Air Valves Stock | Air Release Valves |
| Air Relief valves | Air Release Valves Brand |
| Cast Iron Air Valve | Double Acting Air Valves |
| Kinetic Air Valve | Single Air Lock Valve |
| Double Air Lock Valve | Single Orifice Air Valve |
| Double Orifice Air Valve | Kinetic Air Valve |
| Tamper Proof Air Valve | SS Air Release Valves |
| Alloy Steel Air Valves | Aluminium Air Release Valves |
| Brass Air Release Valves |
Call +91 9833263204 or Click here to send enquiry for Air Valves
Other Material Grades of Air Valves
| DESCRIPTION | UNS GRADE | FORGING | CASTING | BARSTOCK |
|---|---|---|---|---|
| Carbon Steel | K30504 | A105 | A216 WCB | A105 |
| Low Temp Carbon | K03011 | A350 LF2 | A352 LCB | A350 LF2 |
| High Yield Steel | K03014 | A694 F60 | - | A694 F60 |
| 3 1/2 Nickel Steel | K32025 | A350 LF3 | A352 LC3 | A350 LF3 |
| 5 Chrome, 1/2 Moly | K41545 | A182 F5 | A217 C5 | A182 F5 |
| 1 1/4 Chrome, 1/2 Moly | K11597 | A182 F11 | A217 WC6 | A182 F11 |
| 2 1/4 Chrome, 1 Moly | K21590 | A182 F22 | A217 WC9 | A182 F22 |
| 9 Chrome, 1 Moly | K90941 | A182 F9 | A217 WC6 | A182 F9 |
| 13 Chrome | S41000 | A182 F6A | A351 CA15 | A276 or A479 410 |
| 304 | S30400 | A182 F304 | A351 CF8 | A276 or A479 304 |
| 304L | S30403 | A182 F304L | A351 CF3 | A276 or A479 304L |
| 316 | S31600 | A182 F316 | A351 CF8M | A276 or A479 316 |
| 316L | S31603 | A182 F316L | A351 CF3M | A276 or A479 316L |
| 317L | S31703 | A182 F317L | A351 CG8M | A276 or A479 317L |
| 321 | S32100 | A182 F321 | - | A276 or A479 321 |
| 347 | S34700 | A182 F347 | A351 CF8C | A276 or A479 347 |
| 17-4PH | S17400 | A564 630 | - | - |
| Alloy 400 | N04400 | B564 N04400 | A494 M35-1 | B164 N04400 |
| Alloy K500 | N05500 | - | - | B865 N05500 |
| Alloy 800 | N08800 | B564 N08810 | - | B408 N08800 |
| Alloy 825 | N08825 | - | - | B425 N08825 |
| Alloy 600 | N06600 | B564 N06600 | A494 CY40 | B166 N06600 |
| Alloy 625 | N06625 | B564 N06625 | A494 CW 6MC | B446 N06625 |
| Alloy B2 | N10665 | B564 N10665 | A494 N 12MV | B335 N10665 |
| Alloy C | N10002 | - | A494 CW6M | - |
| Alloy C22 | N06022 | B574 N06022 | A494 CX2MW | B574 N06022 |
| Alloy C276 | N10276 | B564 N10276 | A494 CW12 MW | B574 N10276 |
| 22% Duplex | S31803 | A182 F51 | A890 Gr 4A | A276 or A479 S31803 |
| 25% Duplex | S32750 or 32760 | A182 F53 | A890 Gr 6A | A276 or A479 S32750 or 60 |
| 254SMO | S31254 | A182 F44 | A351 CK3MCuN | A182 F44 |
| 904L | N08904 | B625 N08904 | - | B649 N08904 |
| Titanium | R50400 | B381 F2 | B367 C2 | B348 Gr 2 |
