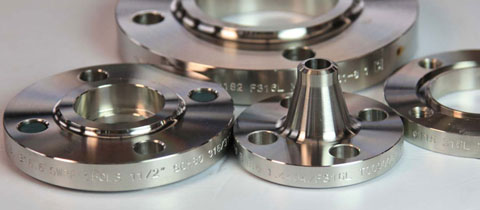

Lap Joint Flanges / LJ Flange
Raised Faced Lap Joint Flanges / LJRF Flanges Manufacturer & Supplier
Stainless Steel Lap Joint Flanges Supplier, Carbon Steel Lap Joint Flanges Stockiest, Alloy Steel Lap Joint Flanges Wholesaler, Nickel Alloy Lap Joint Pipe Flanges Dealer in India
ASME / ANSI B16.5, B16.47, ASTM A182, 105, 350 Industrial Lap Joint Pipe Flanges Exporter in India
Nakshatra Steel & Alloys is one of the renowned of Lap Joint Flanges manufacturers and supplier in India is. We contribute Flanges with different sizes, dimensions, and specifications according to the customer’s requirement.

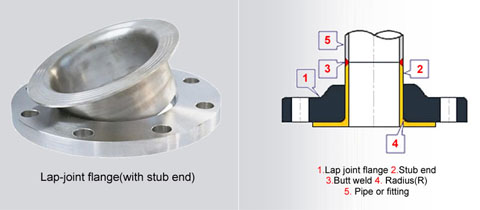

The difference between a typical Industrial Lap Joint Flanges and other types of flanges is the absence of a raised face. It consists of two components, a stub end, and a loose backing flange. The former one is butt welded to the pipe, and the latter one is left free to move over the pipe. Carbon steel is used to make the backing flange in order to reduce the costs incurred. Lap Joint Flange Dimensions is designed to be used where continuous dismantling is necessary.
Exceptional metals and alloys are used to yield Carbon Steel Lap Joint Flanges and Stainless Steel Lap Joint Flanges available for sale at best market prices. We offer these flanges in accordance with various international standards like ANSI Lap Joint Flanges, ASME Lap Joint Flanges, DIN Lap Joint Flanges, and Alloy Steel Lap Joint Flanges are some of their kinds which we manufacture. These flanges have many industrial applications which include power generation, petrochemical plants, shipbuilding, oil refineries, paper mills, wastewater treatment plants, and pharmaceutical plants. We take the necessary measures to ensure safe transit. Call us today!
Grade specifications of Lap Joint Flanges
| Stainless Steel Lap Joint Flanges | |
| Standard | ASTM A182 , A240 |
| Grades | F 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904L |
| Carbon Steel Lap Joint Flanges | |
| Standard | ASTM A105 |
| Grades | Gr. F42,46,52,56,60,65,70 |
| Alloy Steel Lap Joint Flanges | |
| Standard | ASTM A182 |
| Grades | F1,F5,F9,F11,F22,F91 |
| Nickel Alloy Steel Lap Joint Flanges | |
| Standard | ASTM SB564, SB160, SB472, SB162 |
| Grades | Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), |
| Copper Alloy Lap Joint Flanges | |
| Standard | ASTM SB 61 , SB62 , SB151 , SB152 |
| Grades | UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, |
| Duplex Steel Lap Joint Flanges | |
| Standard | ASTM A182, A240 |
| Grades | UNS F 44, F 45, F51, F 53, F 55, F 60, F 61 |
Blind Flange Dimensions – ANSI/ASME B16.5 Class 150 to Class 2500

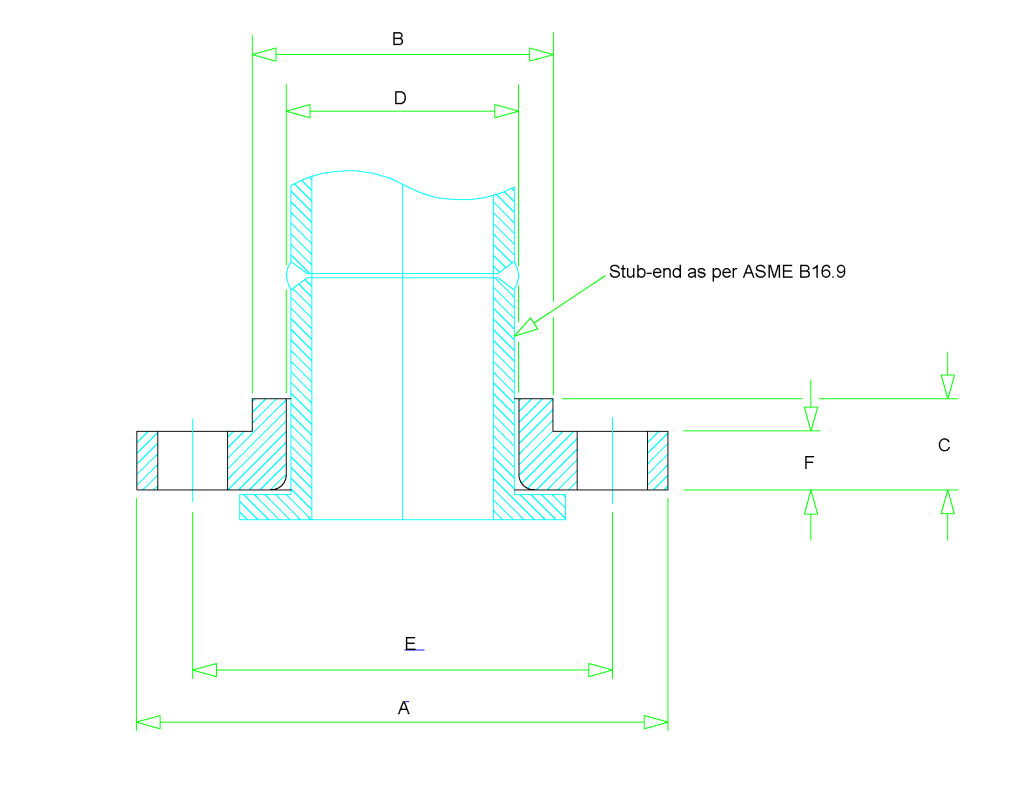

ANSI/ASME B16.5 Class 150 Lap Joint Flange Dimensions
ANSI/ASME B16.5 Class 150 Lap Joint Flange Dimensions
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | Machine Bolt Length | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | G | ||||||||||
| 1/2 | 15 | 90 | 30 | 16 | 22.9 | 60.3 | 11.2 | 3 | 4 | 1/2 | 50 | 55 | 5/8 | M14 | 0.8 |
| 3/4 | 20 | 100 | 38 | 16 | 28.2 | 69.9 | 12.7 | 3 | 4 | 1/2 | 50 | 65 | 5/8 | M14 | 0.9 |
| 1 | 25 | 110 | 49 | 17 | 34.9 | 79.4 | 14.3 | 3 | 4 | 1/2 | 55 | 65 | 5/8 | M14 | 0.9 |
| 1 1/4 | 32 | 115 | 59 | 21 | 43.7 | 88.9 | 15.9 | 5 | 4 | 1/2 | 55 | 70 | 5/8 | M14 | 1.4 |
| 1 1/2 | 40 | 125 | 65 | 22 | 50 | 98.4 | 17.5 | 6 | 4 | 1/2 | 65 | 70 | 5/8 | M14 | 1.4 |
| 2 | 50 | 150 | 78 | 25 | 62.5 | 120.7 | 19.1 | 8 | 4 | 5/8 | 70 | 85 | 3/4 | M16 | 2.3 |
| 2 1/2 | 65 | 180 | 90 | 29 | 75.4 | 139.7 | 22.3 | 8 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 3.2 |
| 3 | 80 | 190 | 108 | 30 | 91.4 | 152.4 | 23.9 | 10 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 3.7 |
| 3 1/2 | 90 | 215 | 122 | 32 | 104.1 | 177.8 | 23.9 | 11 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 5 |
| 4 | 100 | 230 | 135 | 33 | 116.8 | 190.5 | 23.9 | 11 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 5.9 |
| 5 | 125 | 255 | 164 | 36 | 144.4 | 215.9 | 23.9 | 11 | 8 | 3/4 | 85 | 95 | 7/8 | M20 | 6.8 |
| 6 | 150 | 280 | 192 | 40 | 171.4 | 241.3 | 25.4 | 13 | 8 | 3/4 | 85 | 100 | 7/8 | M20 | 8.6 |
| 8 | 200 | 345 | 246 | 44 | 222.2 | 298.5 | 28.6 | 13 | 8 | 3/4 | 90 | 110 | 7/8 | M20 | 13.7 |
| 10 | 250 | 405 | 305 | 49 | 277.4 | 362 | 30.2 | 13 | 12 | 7/8 | 100 | 115 | 1 | M24 | 19.5 |
| 12 | 300 | 485 | 365 | 56 | 328.2 | 431.8 | 31.8 | 13 | 12 | 7/8 | 100 | 120 | 1 | M24 | 29 |
| 14 | 350 | 535 | 400 | 79 | 360.2 | 476.3 | 35 | 13 | 12 | 1 | 115 | 135 | 1 1/8 | M27 | 41 |
| 16 | 400 | 595 | 457 | 87 | 411.2 | 539.8 | 36.6 | 13 | 16 | 1 | 115 | 135 | 1 1/8 | M27 | 54 |
| 18 | 450 | 635 | 505 | 97 | 462.3 | 577.9 | 39.7 | 13 | 16 | 1 1/8 | 125 | 145 | 1 1/4 | M30 | 59 |
| 20 | 500 | 700 | 559 | 103 | 514.4 | 635 | 42.9 | 13 | 20 | 1 1/8 | 140 | 160 | 1 1/4 | M30 | 75 |
| 24 | 600 | 815 | 663 | 111 | 616 | 749.3 | 47.9 | 13 | 20 | 1 1/4 | 150 | 170 | 1 3/8 | M33 | 100 |
ANSI/ASME B16.5 Class 300 Lap Joint Flange Dimensions
ANSI/ASME B16.5 Class 300 Lap Joint Flange Dimensions
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | Machine Bolt Length | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | G | ||||||||||
| 1/2 | 15 | 95 | 38 | 22 | 22.9 | 66.7 | 14.3 | 3 | 4 | 1/2 | 55 | 65 | 5/8 | M14 | 1.2 |
| 3/4 | 20 | 115 | 48 | 25 | 28.2 | 82.6 | 15.9 | 3 | 4 | 5/8 | 65 | 75 | 3/4 | M16 | 1.4 |
| 1 | 25 | 125 | 54 | 27 | 34.9 | 88.9 | 17.5 | 3 | 4 | 5/8 | 65 | 75 | 3/4 | M16 | 1.4 |
| 1 1/4 | 32 | 135 | 64 | 27 | 43.7 | 98.4 | 19.1 | 5 | 4 | 5/8 | 70 | 85 | 3/4 | M16 | 1.8 |
| 1 1/2 | 40 | 155 | 70 | 30 | 50 | 114.3 | 20.7 | 6 | 4 | 3/4 | 75 | 90 | 7/8 | M20 | 2.7 |
| 2 | 50 | 165 | 84 | 33 | 62.5 | 127 | 22.3 | 8 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 3.2 |
| 2 1/2 | 65 | 190 | 100 | 38 | 75.4 | 149.2 | 25.4 | 8 | 8 | 3/4 | 85 | 100 | 7/8 | M20 | 4.6 |
| 3 | 80 | 210 | 117 | 43 | 91.4 | 168.3 | 28.6 | 10 | 8 | 3/4 | 90 | 110 | 7/8 | M20 | 5.9 |
| 3 1/2 | 90 | 230 | 133 | 44 | 104.1 | 184.2 | 30.2 | 11 | 8 | 3/4 | 95 | 110 | 7/8 | M20 | 7.7 |
| 4 | 100 | 255 | 146 | 48 | 116.8 | 200 | 31.8 | 11 | 8 | 3/4 | 95 | 115 | 7/8 | M20 | 10 |
| 5 | 125 | 280 | 178 | 51 | 144.4 | 235 | 35 | 11 | 8 | 3/4 | 110 | 120 | 7/8 | M20 | 12.7 |
| 6 | 150 | 320 | 206 | 52 | 171.4 | 269.9 | 36.6 | 13 | 12 | 3/4 | 110 | 120 | 7/8 | M20 | 17.7 |
| 8 | 200 | 380 | 260 | 62 | 222.2 | 330.2 | 41.3 | 13 | 12 | 7/8 | 120 | 140 | 1 | M24 | 26 |
| 10 | 250 | 445 | 321 | 95 | 277.4 | 387.4 | 47.7 | 13 | 16 | 1 | 140 | 160 | 1 1/8 | M27 | 36 |
| 12 | 300 | 520 | 375 | 102 | 328.2 | 450.8 | 50.8 | 13 | 16 | 1 1/8 | 145 | 170 | 1 1/4 | M30 | 52 |
| 14 | 350 | 585 | 425 | 111 | 360.2 | 514.4 | 54 | 13 | 20 | 1 1/8 | 160 | 180 | 1 1/4 | M30 | 75 |
| 16 | 400 | 650 | 483 | 121 | 411.2 | 571.5 | 57.2 | 13 | 20 | 1 1/4 | 165 | 190 | 1 3/8 | M33 | 86 |
| 18 | 450 | 710 | 533 | 130 | 462.3 | 628.6 | 60.4 | 13 | 24 | 1 1/4 | 170 | 195 | 1 3/8 | M33 | 113 |
| 20 | 500 | 775 | 587 | 140 | 514.4 | 685.8 | 63.5 | 13 | 24 | 1 1/4 | 185 | 205 | 1 3/8 | M33 | 143 |
| 24 | 600 | 915 | 702 | 153 | 616 | 812.8 | 69.9 | 13 | 24 | 1 1/2 | 205 | 230 | 1 5/8 | M39 | 216 |
ANSI/ASME B16.5 Class 400 Lap Joint Flange Dimensions
ANSI/ASME B16.5 Class 400 Lap Joint Flange Dimensions
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | G | |||||||||
| 1/2 | 15 | 95 | 38 | 22 | 22.9 | 66.7 | 14.3 | 3 | 4 | 1/2 | 75 | 5/8 | M14 | 1.3 |
| 3/4 | 20 | 115 | 48 | 25 | 28.2 | 82.6 | 15.9 | 3 | 4 | 5/8 | 90 | 3/4 | M16 | 1.5 |
| 1 | 25 | 125 | 54 | 27 | 34.9 | 88.9 | 17.5 | 3 | 4 | 5/8 | 90 | 3/4 | M16 | 1.8 |
| 1 1/4 | 32 | 135 | 64 | 29 | 43.7 | 98.4 | 20.7 | 5 | 4 | 5/8 | 95 | 3/4 | M16 | 2.3 |
| 1 1/2 | 40 | 155 | 70 | 32 | 50 | 114.3 | 22.3 | 6 | 4 | 3/4 | 110 | 7/8 | M20 | 3.2 |
| 2 | 50 | 165 | 84 | 37 | 62.5 | 127 | 25.4 | 8 | 8 | 5/8 | 110 | 3/4 | M16 | 4.1 |
| 2 1/2 | 65 | 190 | 100 | 41 | 75.4 | 149.2 | 28.6 | 8 | 8 | 3/4 | 120 | 7/8 | M20 | 5.9 |
| 3 | 80 | 210 | 117 | 46 | 91.4 | 168.3 | 31.8 | 10 | 8 | 3/4 | 125 | 7/8 | M20 | 7.3 |
| 3 1/2 | 90 | 230 | 133 | 49 | 104.1 | 184.2 | 35 | 10 | 8 | 7/8 | 140 | 1 | M24 | 9.6 |
| 4 | 100 | 255 | 146 | 51 | 116.8 | 200 | 35 | 11 | 8 | 7/8 | 140 | 1 | M24 | 11.8 |
| 5 | 125 | 280 | 178 | 54 | 144.5 | 235 | 38.1 | 11 | 8 | 7/8 | 145 | 1 | M24 | 14.1 |
| 6 | 150 | 320 | 206 | 57 | 171.4 | 269.9 | 41.3 | 13 | 12 | 7/8 | 150 | 1 | M24 | 20 |
| 8 | 200 | 380 | 260 | 68 | 222.2 | 330 | 47.7 | 13 | 12 | 1 | 170 | 1 1/8 | M27 | 31 |
| 10 | 250 | 445 | 321 | 102 | 277.4 | 387.4 | 54 | 13 | 16 | 1 1/8 | 190 | 1 1/4 | M30 | 42 |
| 12 | 300 | 520 | 375 | 108 | 328.2 | 450.8 | 57.2 | 13 | 16 | 1 1/4 | 205 | 1 3/8 | M33 | 59 |
| 14 | 350 | 585 | 425 | 117 | 360.2 | 514.4 | 60.4 | 13 | 20 | 1 1/4 | 210 | 1 3/8 | M33 | 82 |
| 16 | 400 | 650 | 483 | 127 | 411.2 | 571.5 | 63.5 | 13 | 20 | 1 3/8 | 220 | 1 1/2 | M36 | 107 |
| 18 | 450 | 710 | 533 | 137 | 462.3 | 628.6 | 66.7 | 13 | 24 | 1 3/8 | 230 | 1 1/2 | M36 | 130 |
| 20 | 500 | 775 | 587 | 146 | 514.4 | 685.8 | 69.9 | 13 | 24 | 1 1/2 | 240 | 1 3/4 | M39 | 157 |
| 24 | 600 | 915 | 702 | 159 | 616 | 812.8 | 76.2 | 13 | 24 | 1 3/4 | 265 | 1 7/8 | M45 | 232 |
ANSI/ASME B16.5 Class 600 Lap Joint Flange Dimensions
ANSI/ASME B16.5 Class 600 Lap Joint Flange Dimensions
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | G | |||||||||
| 1/2 | 15 | 95 | 38 | 22 | 22.9 | 66.7 | 14.3 | 3 | 4 | 1/2 | 75 | 5/8 | M14 | 1.3 |
| 3/4 | 20 | 115 | 48 | 25 | 28.2 | 82.6 | 15.9 | 3 | 4 | 5/8 | 90 | 3/4 | M16 | 1.4 |
| 1 | 25 | 125 | 54 | 27 | 34.9 | 88.9 | 17.5 | 3 | 4 | 5/8 | 90 | 3/4 | M16 | 1.8 |
| 1 1/4 | 32 | 135 | 64 | 29 | 43.7 | 98.4 | 20.7 | 5 | 4 | 5/8 | 95 | 3/4 | M16 | 2.3 |
| 1 1/2 | 40 | 155 | 70 | 32 | 50 | 114.3 | 22.3 | 6 | 4 | 3/4 | 110 | 7/8 | M20 | 3.2 |
| 2 | 50 | 165 | 84 | 37 | 62.5 | 127 | 25.4 | 8 | 8 | 5/8 | 110 | 3/4 | M16 | 4.1 |
| 2 1/2 | 65 | 190 | 100 | 41 | 75.4 | 149.2 | 28.6 | 8 | 8 | 3/4 | 120 | 7/8 | M20 | 5.9 |
| 3 | 80 | 210 | 117 | 46 | 91.4 | 168.3 | 31.8 | 10 | 8 | 3/4 | 125 | 7/8 | M20 | 7.3 |
| 3 1/2 | 90 | 230 | 133 | 49 | 104.1 | 184.2 | 35 | 11 | 8 | 7/8 | 140 | 1 | M24 | 9.6 |
| 4 | 100 | 275 | 152 | 54 | 116.8 | 215.9 | 38.1 | 11 | 8 | 7/8 | 145 | 1 | M24 | 16.8 |
| 5 | 125 | 330 | 189 | 60 | 144.4 | 266.7 | 44.5 | 11 | 8 | 1 | 165 | 1 1/8 | M27 | 29 |
| 6 | 150 | 355 | 222 | 67 | 171.4 | 292.1 | 47.7 | 13 | 12 | 1 | 170 | 1 1/8 | M27 | 36 |
| 8 | 200 | 420 | 273 | 76 | 222.2 | 349.2 | 55.6 | 13 | 12 | 1 1/8 | 190 | 1 1/4 | M30 | 52 |
| 10 | 250 | 510 | 343 | 111 | 277.4 | 431.8 | 63.5 | 13 | 16 | 1 1/4 | 215 | 1 3/8 | M33 | 77 |
| 12 | 300 | 560 | 400 | 117 | 328.2 | 489 | 66.7 | 13 | 20 | 1 1/4 | 220 | 1 3/8 | M33 | 91 |
| 14 | 350 | 605 | 432 | 127 | 360.2 | 527 | 69.9 | 13 | 20 | 1 3/8 | 235 | 1 1/2 | M36 | 105 |
| 16 | 400 | 685 | 495 | 140 | 411.2 | 603.2 | 76.2 | 13 | 20 | 1 1/2 | 255 | 1 5/8 | M39 | 150 |
| 18 | 450 | 745 | 546 | 152 | 462.3 | 654 | 82.6 | 13 | 20 | 1 5/8 | 275 | 1 3/4 | M42 | 182 |
| 20 | 500 | 815 | 610 | 165 | 514.4 | 723.9 | 88.9 | 13 | 24 | 1 5/8 | 285 | 1 3/4 | M42 | 232 |
| 24 | 600 | 940 | 718 | 184 | 616 | 838.2 | 101.6 | 13 | 24 | 1 7/8 | 330 | 2 | M48 | 332 |
ANSI/ASME B16.5 Class 900 Lap Joint Flange Dimensions
ANSI/ASME B16.5 Class 900 Lap Joint Flange Dimensions
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | G | |||||||||
| 1/2 | 15 | 120 | 38 | 32 | 22.9 | 82.6 | 22.3 | 3 | 4 | 3/4 | 110 | 7/8 | M20 | 1.8 |
| 3/4 | 20 | 130 | 44 | 35 | 28.2 | 88.9 | 25.4 | 3 | 4 | 3/4 | 115 | 7/8 | M20 | 2.3 |
| 1 | 25 | 150 | 52 | 41 | 34.9 | 101.6 | 28.6 | 3 | 4 | 7/8 | 125 | 1 | M24 | 3.6 |
| 1 1/4 | 32 | 160 | 64 | 41 | 43.7 | 111.1 | 28.6 | 5 | 4 | 7/8 | 125 | 1 | M24 | 4.1 |
| 1 1/2 | 40 | 180 | 70 | 44 | 50 | 123.8 | 31.8 | 6 | 4 | 1 | 140 | 1 1/8 | M27 | 5.5 |
| 2 | 50 | 215 | 105 | 57 | 62.5 | 165.1 | 38.1 | 8 | 8 | 7/8 | 145 | 1 | M24 | 11.5 |
| 2 1/2 | 65 | 245 | 124 | 64 | 75.4 | 190.5 | 41.3 | 8 | 8 | 1 | 160 | 1 1/8 | M27 | 16.5 |
| 3 | 80 | 240 | 127 | 54 | 91.4 | 190.5 | 38.1 | 10 | 8 | 7/8 | 145 | 1 | M24 | 12 |
| 4 | 100 | 290 | 159 | 70 | 116.8 | 235 | 44.5 | 11 | 8 | 1 1/8 | 170 | 1 1/4 | M30 | 24 |
| 5 | 125 | 350 | 190 | 79 | 144.4 | 279.4 | 50.8 | 11 | 8 | 1 1/4 | 190 | 1 3/8 | M33 | 38 |
| 6 | 150 | 380 | 235 | 86 | 171.4 | 317.5 | 55.6 | 13 | 12 | 1 1/8 | 190 | 1 1/4 | M30 | 50 |
| 8 | 200 | 470 | 298 | 114 | 222.2 | 393.7 | 63.5 | 13 | 12 | 1 3/8 | 220 | 1 1/2 | M36 | 78 |
| 10 | 250 | 545 | 368 | 127 | 277.4 | 469.9 | 69.9 | 13 | 16 | 1 3/8 | 235 | 1 1/2 | M36 | 112 |
| 12 | 300 | 610 | 419 | 143 | 328.2 | 533.4 | 79.4 | 13 | 20 | 1 3/8 | 255 | 1 1/2 | M36 | 148 |
| 14 | 350 | 640 | 451 | 156 | 360.2 | 558.8 | 85.8 | 13 | 20 | 1 1/2 | 275 | 1 5/8 | M39 | 182 |
| 16 | 400 | 705 | 508 | 165 | 411.2 | 616 | 88.9 | 13 | 20 | 1 5/8 | 285 | 1 3/4 | M42 | 193 |
| 18 | 450 | 785 | 565 | 190 | 462.3 | 685.8 | 101.6 | 13 | 20 | 1 7/8 | 325 | 2 | M48 | 258 |
| 20 | 500 | 855 | 622 | 210 | 514.4 | 749.3 | 108 | 13 | 20 | 2 | 350 | 2 1/8 | M52 | 317 |
| 24 | 600 | 1040 | 749 | 267 | 616 | 901.7 | 139.7 | 13 | 20 | 2 1/2 | 440 | 2 5/8 | M64 | 608 |
ANSI/ASME B16.5 Class 1500 Lap Joint Flange Dimensions
ANSI/ASME B16.5 Class 1500 Lap Joint Flange Dimensions
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | G | |||||||||
| 1/2 | 15 | 120 | 38 | 32 | 22.9 | 82.6 | 22.3 | 3 | 4 | 3/4 | 110 | 7/8 | M20 | 1.8 |
| 3/4 | 20 | 130 | 44 | 35 | 28.2 | 88.9 | 25.4 | 3 | 4 | 3/4 | 115 | 7/8 | M20 | 2.3 |
| 1 | 25 | 150 | 52 | 41 | 34.9 | 101.6 | 28.6 | 3 | 4 | 7/8 | 125 | 1 | M24 | 3.7 |
| 1 1/4 | 32 | 160 | 64 | 41 | 43.7 | 111.1 | 28.6 | 5 | 4 | 7/8 | 125 | 1 | M24 | 4.1 |
| 1 1/2 | 40 | 180 | 70 | 44 | 50 | 123.8 | 31.8 | 6 | 4 | 1 | 140 | 1 1/8 | M27 | 5.5 |
| 2 | 50 | 215 | 105 | 57 | 62.5 | 165.1 | 38.1 | 8 | 8 | 7/8 | 145 | 1 | M24 | 9.8 |
| 2 1/2 | 65 | 245 | 124 | 64 | 75.4 | 190.5 | 41.3 | 8 | 8 | 1 | 160 | 1 1/8 | M27 | 16.4 |
| 3 | 80 | 265 | 133 | 73 | 91.4 | 203.2 | 47.7 | 10 | 8 | 1 1/8 | 180 | 1 1/4 | M30 | 21.8 |
| 4 | 100 | 310 | 162 | 90 | 116.8 | 241.3 | 54 | 11 | 8 | 1 1/4 | 195 | 1 3/8 | M33 | 33 |
| 5 | 125 | 375 | 197 | 105 | 144.4 | 292.1 | 73.1 | 11 | 8 | 1 1/2 | 250 | 1 5/8 | M39 | 59 |
| 6 | 150 | 395 | 229 | 119 | 171.4 | 317.5 | 82.6 | 13 | 12 | 1 3/8 | 260 | 1 1/2 | M36 | 75 |
| 8 | 200 | 485 | 292 | 143 | 222.2 | 393.7 | 92.1 | 13 | 12 | 1 5/8 | 290 | 1 3/4 | M42 | 118 |
| 10 | 250 | 585 | 368 | 178 | 277.4 | 482.6 | 108 | 13 | 12 | 1 7/8 | 335 | 2 | M48 | 198 |
| 12 | 300 | 675 | 451 | 219 | 328.2 | 571.5 | 123.9 | 13 | 16 | 2 | 375 | 2 1/8 | M52 | 264 |
| 14 | 350 | 750 | 495 | 241 | 360.2 | 635 | 133.4 | 13 | 16 | 2 1/4 | 405 | 2 3/8 | M56 | 341 |
| 16 | 400 | 825 | 552 | 260 | 411.2 | 704.8 | 146.1 | 13 | 16 | 2 1/2 | 445 | 2 5/8 | M64 | 454 |
| 18 | 450 | 915 | 597 | 276 | 462.3 | 774.7 | 162 | 13 | 16 | 2 3/4 | 495 | 2 7/8 | M72 | 590 |
| 20 | 500 | 985 | 641 | 292 | 514.4 | 831.8 | 177.8 | 13 | 16 | 3 | 540 | 3 1/8 | M76 | 792 |
| 24 | 600 | 1170 | 762 | 330 | 616 | 990.6 | 203.2 | 13 | 16 | 3 1/2 | 615 | 3 5/8 | M90 | 1248 |
ANSI/ASME B16.5 Class 2500 Lap Joint Flange Dimensions
ANSI/ASME B16.5 Class 2500 Lap Joint Flange Dimensions
| Size in Inch | Size in mm | Outer Dia. | Flange Thick. | Lapped Thick. | Lapped ID | PCD | Lapped Thick. | Lapped Radius | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | G | |||||||||
| 1/2 | 15 | 135 | 43 | 40 | 22.9 | 88.9 | 30.2 | 3 | 4 | 3/4 | 120 | 7/8 | M20 | 3.2 |
| 3/4 | 20 | 140 | 51 | 43 | 28.2 | 95.2 | 31.8 | 3 | 4 | 3/4 | 125 | 7/8 | M20 | 3.7 |
| 1 | 25 | 160 | 57 | 48 | 34.9 | 108 | 35 | 3 | 4 | 7/8 | 140 | 1 | M24 | 5 |
| 1 1/4 | 32 | 185 | 73 | 52 | 43.7 | 130.2 | 38.1 | 5 | 4 | 1 | 150 | 1 1/8 | M27 | 7.5 |
| 1 1/2 | 40 | 205 | 79 | 60 | 50 | 146 | 44.5 | 6 | 4 | 1 1/8 | 170 | 1 1/4 | M30 | 10 |
| 2 | 50 | 235 | 95 | 70 | 62.5 | 171.4 | 50.9 | 8 | 8 | 1 | 180 | 1 1/8 | M27 | 17.5 |
| 2 1/2 | 65 | 265 | 114 | 79 | 75.4 | 196.8 | 57.2 | 8 | 8 | 1 1/8 | 195 | 1 1/4 | M30 | 23 |
| 3 | 80 | 305 | 133 | 92 | 91.4 | 228.6 | 66.7 | 10 | 8 | 1 1/4 | 220 | 1 3/8 | M33 | 37.8 |
| 4 | 100 | 355 | 165 | 108 | 116.8 | 273 | 76.2 | 11 | 8 | 1 1/2 | 255 | 1 5/8 | M39 | 57 |
| 5 | 125 | 420 | 203 | 130 | 144.4 | 323.8 | 92.1 | 11 | 8 | 1 3/4 | 300 | 1 7/8 | M45 | 95 |
| 6 | 150 | 485 | 235 | 152 | 171.4 | 368.3 | 108 | 13 | 8 | 2 | 345 | 2 1/8 | M52 | 148 |
| 8 | 200 | 550 | 305 | 178 | 222.2 | 438.2 | 127 | 13 | 12 | 2 | 380 | 2 1/8 | M52 | 221 |
| 10 | 250 | 675 | 375 | 229 | 277.4 | 539.8 | 165.1 | 13 | 12 | 2 1/2 | 490 | 2 5/8 | M64 | 425 |
| 12 | 300 | 760 | 441 | 254 | 328.2 | 619.1 | 184.2 | 13 | 12 | 2 3/4 | 540 | 2 7/8 | M72 | 500 |
Types of Lap Joint Flanges
| ANSI B16.5 Lap Joint Flanges | ANSI B16.5 Class 150 Lap Joint Flanges |
| ANSI B16.5 Class 300 Lap Joint Flanges | ANSI B16.5 Class 400 Lap Joint Flanges |
| ANSI B16.5 Class 600 Lap Joint Flanges | ANSI B16.5 Class 900 Lap Joint Flanges |
| ANSI B16.5 Class 1500 Lap Joint Flanges | ANSI B16.5 Class 2500 Lap Joint Flanges |
| Industry Standard Class 75 Lap Joint Flanges | Industry Standard Class 125 Light-weight Lap Joint Flanges |
| Industry Standard Class 125/150 Lap Joint Flanges | Industry Standard Class 150 Lap Joint Flanges |
| Industry Standard Class 175 Lap Joint Flanges | Industry Standard Class 250 Lap Joint Flanges |
| Industry Standard Class 300 Lap Joint Flanges | Industry Standard Class 350 Lap Joint Flanges |
| Plate Lap Joint Flanges | Ring Type Joint Lap Joint Flanges |
| Drawing Lap Joint Flanges | Square Lap Joint Flanges |
| Nipo Lap Joint Flanges | Reducing Lap Joint Flanges |
| Forged Lap Joint Flanges | ASME B16.47 Series A Lap Joint Flanges |
| ASME B16.47 Series B Lap Joint Flanges | ANSI B16.36 Orifice Lap Joint Flanges |
| 150Lbs Lap Joint Flanges | 300Lbs Lap Joint Flanges |
| 600Lbs Lap Joint Flanges | 900Lbs Lap Joint Flanges |
| 1500Lbs Lap Joint Flanges | 2500Lbs Lap Joint Flanges |
| DIN Lap Joint Flanges PN6-PN40 | Stainless Steel Lap Joint Flanges |
Call +91 9833263204 or Click here to send enquiry for Lap Joint Flanges
Lap Joint Flanges Exporters & Suppliers
Exporting Lap Joint Flanges to Countries
We are exporting Lap Joint Flanges to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying Lap Joint Flanges to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
