Blind Flanges
Raised Faced Blind Flanges / BLRF Flanges Manufacturer & Supplier
Stainless Steel Blind Flanges Supplier, Carbon Steel Blind Flanges Stockiest, Alloy Steel Blind Flanges Wholesaler, Nickel Alloy Blind Pipe Flanges Dealer in India
ASME / ANSI B16.5, B16.47 Blind Pipe Flanges Manufacturer & Exporter in India

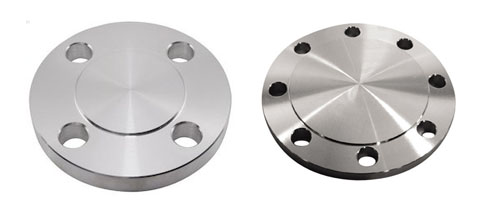

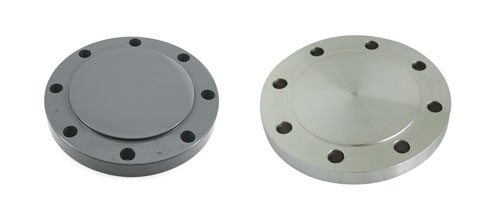

Blind Flanges are generally employed to fasten the ends of pressure vessel systems and piping systems. They avert the continuous flow of any gases and liquids. These flanges offered by having an exceptional quality. Nakshatra Steel & Alloys is regarded as one of the leading Blind Flanges Suppliers in India.
Nakshatra Steel & Alloys offers various types of flanges made in various materials like Stainless Steel, Carbon Steel, Alloy Steel, Nickel Alloy etc. These flanges are supplied to various industries like Paper mills, Pharmaceutical plants, shipbuilding, power generation, oil refineries, wastewater treatment plants etc.
If work is to be performed inside the line, one can use BLRF Flanges also referred as Raised Face Blind Flanges. They are also used for examining the flow of gases and liquids inside a vessel. These flanges are frequently deployed in high-pressure applications and complex piping system.
Depending upon the blind flange dimensions, there are different varieties like Class 150, Class 300, and Class 600. These flanges are also named as blanking flanges which also available in various standards like ASME, ANSI, DIN etc.
Prompt delivery of flanges is reassured by Nakshatra Steel & Alloys. During the transfer of goods, essential measures are taken to avoid damage. Call us today for a quick quote!
Blind Flanges Specifications:
| Size | : | ½" (15 NB) to 48" (1200NB) |
| Class | : | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| Standards | : | ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 |
| DIN | : | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 |
| B.S | : | BS4504 , BS4504, BS1560, BS10 |
| Flange Face Type | : | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Coating/Surface Treatment | : | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
Grade specifications of Blind Flanges
| Stainless Steel Blind Raised Face Flanges | |
| Standard | ASTM A182, A240 |
| Grades | F 304, 304L, 304H, 316, 316Ti, 316H, 316L, 316LN, 309S, 309H, 310S, 310H,317, 317L, 321, 321H, 347, 347H, 201, 202, 904L |
| Carbon Steel Blind Raised Face Flanges | |
| Standard | ASTM A105 |
| Grades | Gr. F42,46,52,56,60,65,70 |
| Alloy Steel Blind Raised Face Flanges | |
| Standard | ASTM A182 |
| Grades | F1,F5,F9,F11,F22,F91 |
| Nickel Alloy Steel Blind Raised Face Flanges | |
| Standard | ASTM SB564, SB160, SB472, SB162 |
| Grades | Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), |
| Copper Alloy Blind Raised Face Flanges | |
| Standard | ASTM SB 61 , SB62 , SB151 , SB152 |
| Grades | UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200, |
| Duplex Steel Blind Raised Face Flanges | |
| Standard | ASTM A182, A240 |
| Grades | UNS F 44, F 45, F51, F 53, F 55, F 60, F 61 |

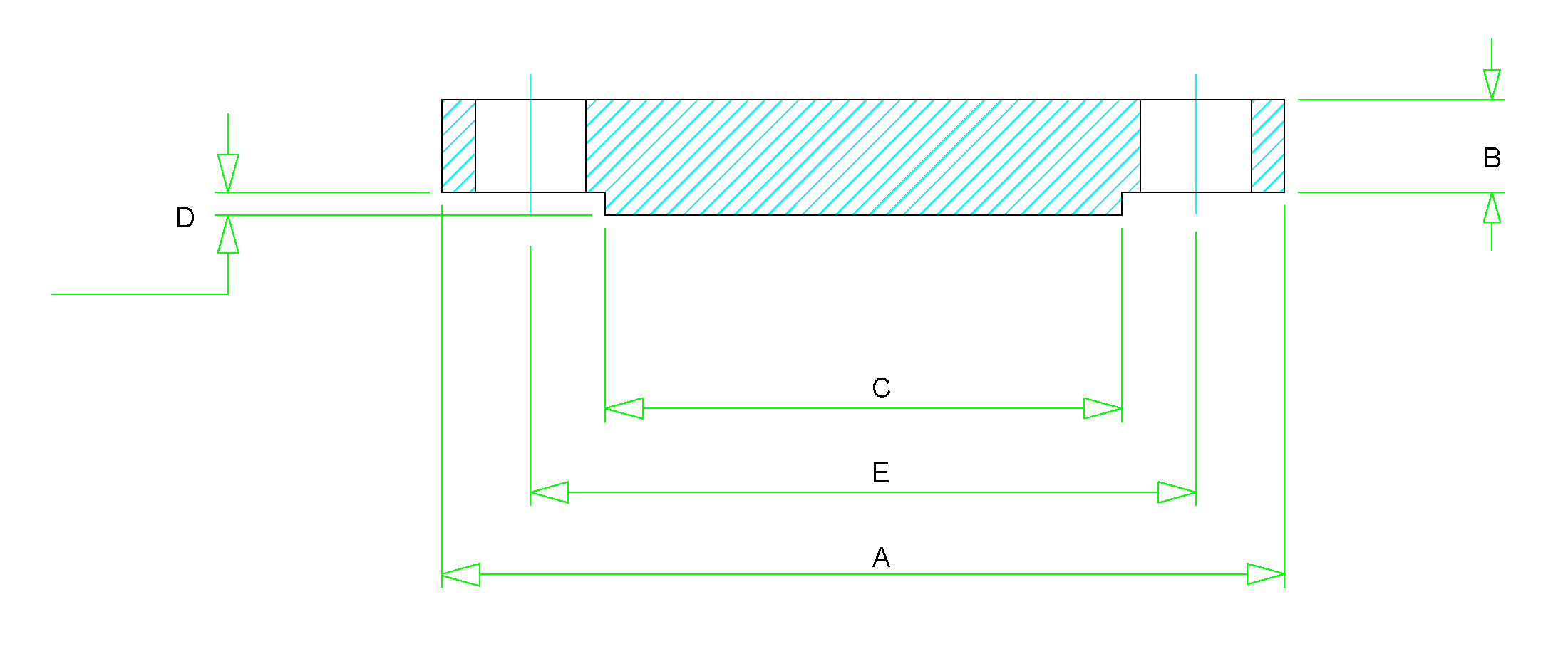

Blind Flange Dimensions – ANSI/ASME B16.5 Class 150 to Class 2500
ANSI/ASME B16.5 Class 150 Blind Flange Dimensions
ANSI/ASME B16.5 Class 150 Blind Flange Dimensions
| Size in Inch | Size in mm | Outer Dia. | Flange Thickness | RF Dia. | RF Height | PCD | No of Bolts | Bolt Size UNC | Machine Bolt Length | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | |||||||||
| 1/2 | 15 | 90 | 9.6 | 34.9 | 2 | 60.3 | 4 | 1/2 | 50 | 55 | 5/8 | M14 | 0.9 |
| 3/4 | 20 | 100 | 11.2 | 42.9 | 2 | 69.9 | 4 | 1/2 | 50 | 65 | 5/8 | M14 | 0.9 |
| 1 | 25 | 110 | 12.7 | 50.8 | 2 | 79.4 | 4 | 1/2 | 55 | 65 | 5/8 | M14 | 0.9 |
| 1 1/4 | 32 | 115 | 14.3 | 63.5 | 2 | 88.9 | 4 | 1/2 | 55 | 70 | 5/8 | M14 | 1.4 |
| 1 1/2 | 40 | 125 | 15.9 | 73 | 2 | 98.4 | 4 | 1/2 | 65 | 70 | 5/8 | M14 | 1.8 |
| 2 | 50 | 150 | 17.5 | 92.1 | 2 | 120.7 | 4 | 5/8 | 70 | 85 | 3/4 | M16 | 2.3 |
| 2 1/2 | 65 | 180 | 20.7 | 104.8 | 2 | 139.7 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 3.2 |
| 3 | 80 | 190 | 22.3 | 127 | 2 | 152.4 | 4 | 5/8 | 75 | 90 | 3/4 | M16 | 4.1 |
| 3 1/2 | 90 | 215 | 22.3 | 139.7 | 2 | 177.8 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 5.9 |
| 4 | 100 | 230 | 22.3 | 157.2 | 2 | 190.5 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 7.7 |
| 5 | 125 | 255 | 22.3 | 185.7 | 2 | 215.9 | 8 | 3/4 | 85 | 95 | 7/8 | M20 | 9.1 |
| 6 | 150 | 280 | 23.9 | 215.9 | 2 | 241.3 | 8 | 3/4 | 85 | 100 | 7/8 | M20 | 11.8 |
| 8 | 200 | 345 | 27 | 269.9 | 2 | 298.5 | 8 | 3/4 | 90 | 110 | 7/8 | M20 | 20.5 |
| 10 | 250 | 405 | 28.6 | 323.8 | 2 | 362 | 12 | 7/8 | 100 | 115 | 1 | M24 | 32 |
| 12 | 300 | 485 | 30.2 | 381 | 2 | 431.8 | 12 | 7/8 | 100 | 120 | 1 | M24 | 50 |
| 14 | 350 | 535 | 33.4 | 412.8 | 2 | 476.3 | 12 | 1 | 115 | 135 | 1 1/8 | M27 | 64 |
| 16 | 400 | 595 | 35 | 469.9 | 2 | 539.8 | 16 | 1 | 115 | 135 | 1 1/8 | M27 | 82 |
| 18 | 450 | 635 | 38.1 | 533.4 | 2 | 577.9 | 16 | 1 1/8 | 125 | 145 | 1 1/4 | M30 | 100 |
| 20 | 500 | 700 | 41.3 | 584.2 | 2 | 635 | 20 | 1 1/8 | 140 | 160 | 1 1/4 | M30 | 130 |
| 24 | 600 | 815 | 46.1 | 692.2 | 2 | 749.3 | 20 | 1 1/4 | 150 | 170 | 1 3/8 | M33 | 196 |
ANSI/ASME B16.5 Class 300 Blind Flange Dimensions
ANSI/ASME B16.5 Class 300 Blind Flange Dimensions
| Size in Inch | Size in mm | Outer Dia. | Flange Thickness | RF Dia. | RF Height | PCD | No of Bolts | Bolt Size UNC | Machine Bolt Length | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | |||||||||
| 1/2 | 15 | 95 | 12.7 | 34.9 | 2 | 66.7 | 4 | 1/2 | 55 | 65 | 5/8 | M14 | 1.4 |
| 3/4 | 20 | 115 | 14.3 | 42.9 | 2 | 82.6 | 4 | 5/8 | 65 | 75 | 3/4 | M16 | 1.4 |
| 1 | 25 | 125 | 15.9 | 50.8 | 2 | 88.9 | 4 | 5/8 | 65 | 75 | 3/4 | M16 | 1.4 |
| 1 1/4 | 32 | 135 | 17.5 | 63.5 | 2 | 98.4 | 4 | 5/8 | 70 | 85 | 3/4 | M16 | 1.8 |
| 1 1/2 | 40 | 155 | 19.1 | 73 | 2 | 114.3 | 4 | 3/4 | 75 | 90 | 7/8 | M20 | 2.7 |
| 2 | 50 | 165 | 20.7 | 92.1 | 2 | 127 | 8 | 5/8 | 75 | 90 | 3/4 | M16 | 3.7 |
| 2 1/2 | 65 | 190 | 23.9 | 104.8 | 2 | 149.2 | 8 | 3/4 | 85 | 100 | 7/8 | M20 | 5.5 |
| 3 | 80 | 210 | 27 | 127 | 2 | 168.3 | 8 | 3/4 | 90 | 110 | 7/8 | M20 | 7.3 |
| 3 1/2 | 90 | 230 | 28.6 | 139.7 | 2 | 184.2 | 8 | 3/4 | 95 | 110 | 7/8 | M20 | 9.6 |
| 4 | 100 | 255 | 30.2 | 157.2 | 2 | 200 | 8 | 3/4 | 95 | 115 | 7/8 | M20 | 12.3 |
| 5 | 125 | 280 | 33.4 | 185.7 | 2 | 235 | 8 | 3/4 | 110 | 120 | 7/8 | M20 | 15.9 |
| 6 | 150 | 320 | 35 | 215.9 | 2 | 269.9 | 12 | 3/4 | 110 | 120 | 7/8 | M20 | 22.7 |
| 8 | 200 | 380 | 39.7 | 269.9 | 2 | 330.2 | 12 | 7/8 | 120 | 140 | 1 | M24 | 36 |
| 10 | 250 | 445 | 46.1 | 323.8 | 2 | 387.4 | 16 | 1 | 140 | 160 | 1 1/8 | M27 | 57 |
| 12 | 300 | 520 | 49.3 | 381 | 2 | 450.8 | 16 | 1 1/8 | 145 | 170 | 1 1/4 | M30 | 84 |
| 14 | 350 | 585 | 52.4 | 412.8 | 2 | 514.4 | 20 | 1 1/8 | 160 | 180 | 1 1/4 | M30 | 113 |
| 16 | 400 | 650 | 55.6 | 469.9 | 2 | 571.5 | 20 | 1 1/4 | 165 | 190 | 1 3/8 | M33 | 134 |
| 18 | 450 | 710 | 58.8 | 533.4 | 2 | 628.6 | 24 | 1 1/4 | 170 | 195 | 1 3/8 | M33 | 181 |
| 20 | 500 | 775 | 62 | 584.2 | 2 | 685.8 | 24 | 1 1/4 | 185 | 205 | 1 3/8 | M33 | 230 |
| 24 | 600 | 915 | 68.3 | 692.2 | 2 | 812.8 | 24 | 1 1/2 | 205 | 230 | 1 5/8 | M39 | 359 |
ANSI/ASME B16.5 Class 400 Blind Flange Dimensions
ANSI/ASME B16.5 Class 400 Blind Flange Dimensions
| Size in Inch | Size in mm | Outer Dia. | Flange Thickness | RF Dia. | RF Height | PCD | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | ||||||||
| 1/2 | 15 | 95 | 14.3 | 34.9 | 7 | 66.7 | 4 | 1/2 | 75 | 5/8 | M14 | 1.5 |
| 3/4 | 20 | 115 | 15.9 | 42.9 | 7 | 82.6 | 4 | 5/8 | 90 | 3/4 | M16 | 1.5 |
| 1 | 25 | 125 | 17.5 | 50.8 | 7 | 88.9 | 4 | 5/8 | 90 | 3/4 | M16 | 1.8 |
| 1 1/4 | 32 | 135 | 20.7 | 63.5 | 7 | 98.4 | 4 | 5/8 | 95 | 3/4 | M16 | 2.3 |
| 1 1/2 | 40 | 155 | 22.3 | 73 | 7 | 114.3 | 4 | 3/4 | 110 | 7/8 | M20 | 3.7 |
| 2 | 50 | 165 | 25.4 | 92.1 | 7 | 127 | 8 | 5/8 | 110 | 3/4 | M16 | 4.6 |
| 2 1/2 | 65 | 190 | 28.6 | 104.8 | 7 | 149.2 | 8 | 3/4 | 120 | 7/8 | M20 | 6.8 |
| 3 | 80 | 210 | 31.8 | 127 | 7 | 168.3 | 8 | 3/4 | 125 | 7/8 | M20 | 9.1 |
| 3 1/2 | 90 | 230 | 35 | N/A | 7 | 184.2 | 8 | 7/8 | 140 | 1 | M24 | 13.2 |
| 4 | 100 | 255 | 35 | 157.2 | 7 | 200 | 8 | 7/8 | 140 | 1 | M24 | 15 |
| 5 | 125 | 280 | 38.1 | 185.7 | 7 | 235 | 8 | 7/8 | 145 | 1 | M24 | 20 |
| 6 | 150 | 320 | 41.3 | 215.9 | 7 | 269.9 | 12 | 7/8 | 150 | 1 | M24 | 28 |
| 8 | 200 | 380 | 47.7 | 269.9 | 7 | 330 | 12 | 1 | 170 | 1 1/8 | M27 | 46 |
| 10 | 250 | 445 | 54 | 323.8 | 7 | 387.4 | 16 | 1 1/8 | 190 | 1 1/4 | M30 | 71 |
| 12 | 300 | 520 | 57.2 | 381 | 7 | 450.8 | 16 | 1 1/4 | 205 | 1 3/8 | M33 | 102 |
| 14 | 350 | 585 | 60.4 | 412.8 | 7 | 514.4 | 20 | 1 1/4 | 210 | 1 3/8 | M33 | 132 |
| 16 | 400 | 650 | 63.5 | 469.9 | 7 | 571.5 | 20 | 1 3/8 | 220 | 1 1/2 | M36 | 168 |
| 18 | 450 | 710 | 66.7 | 533.4 | 7 | 628.6 | 24 | 1 3/8 | 230 | 1 1/2 | M36 | 207 |
| 20 | 500 | 775 | 69.9 | 584.2 | 7 | 685.8 | 24 | 1 1/2 | 240 | 1 3/4 | M39 | 266 |
| 24 | 600 | 915 | 76.2 | 692.2 | 7 | 812.8 | 24 | 1 3/4 | 265 | 1 7/8 | M45 | 405 |
ANSI/ASME B16.5 Class 600 Blind Flange Dimensions
ANSI/ASME B16.5 Class 600 Blind Flange Dimensions
| Size in Inch | Size in mm | Outer Dia. | Flange Thickness | RF Dia. | RF Height | PCD | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | ||||||||
| 1/2 | 15 | 95 | 14.3 | 34.9 | 7 | 66.7 | 4 | 1/2 | 75 | 5/8 | M14 | 1.4 |
| 3/4 | 20 | 115 | 15.9 | 42.9 | 7 | 82.6 | 4 | 5/8 | 90 | 3/4 | M16 | 1.4 |
| 1 | 25 | 125 | 17.5 | 50.8 | 7 | 88.9 | 4 | 5/8 | 90 | 3/4 | M16 | 1.8 |
| 1 1/4 | 32 | 135 | 20.7 | 63.5 | 7 | 98.4 | 4 | 5/8 | 95 | 3/4 | M16 | 2.3 |
| 1 1/2 | 40 | 155 | 22.3 | 73 | 7 | 114.3 | 4 | 3/4 | 110 | 7/8 | M20 | 3.7 |
| 2 | 50 | 165 | 25.4 | 92.1 | 7 | 127 | 8 | 5/8 | 110 | 3/4 | M16 | 4.6 |
| 2 1/2 | 65 | 190 | 28.6 | 104.8 | 7 | 149.2 | 8 | 3/4 | 120 | 7/8 | M20 | 6.8 |
| 3 | 80 | 210 | 31.8 | 127 | 7 | 168.3 | 8 | 3/4 | 125 | 7/8 | M20 | 9.1 |
| 3 1/2 | 90 | 230 | 35 | N/A | 7 | 184.2 | 8 | 7/8 | 140 | 1 | M24 | 13.2 |
| 4 | 100 | 275 | 38.1 | 157.2 | 7 | 215.9 | 8 | 7/8 | 145 | 1 | M24 | 18.7 |
| 5 | 125 | 330 | 44.5 | 185.7 | 7 | 266.7 | 8 | 1 | 165 | 1 1/8 | M27 | 31 |
| 6 | 150 | 355 | 47.7 | 215.9 | 7 | 292.1 | 12 | 1 | 170 | 1 1/8 | M27 | 39 |
| 8 | 200 | 420 | 55.6 | 269.9 | 7 | 349.2 | 12 | 1 1/8 | 190 | 1 1/4 | M30 | 64 |
| 10 | 250 | 510 | 63.5 | 323.8 | 7 | 431.8 | 16 | 1 1/4 | 215 | 1 3/8 | M33 | 105 |
| 12 | 300 | 560 | 66.7 | 381 | 7 | 489 | 20 | 1 1/4 | 220 | 1 3/8 | M33 | 134 |
| 14 | 350 | 605 | 69.9 | 412.8 | 7 | 527 | 20 | 1 3/8 | 235 | 1 1/2 | M36 | 161 |
| 16 | 400 | 685 | 76.2 | 469.9 | 7 | 603.2 | 20 | 1 1/2 | 255 | 1 5/8 | M39 | 225 |
| 18 | 450 | 745 | 82.6 | 533.4 | 7 | 654 | 20 | 1 5/8 | 275 | 1 3/4 | M42 | 286 |
| 20 | 500 | 815 | 88.9 | 584.2 | 7 | 723.9 | 24 | 1 5/8 | 285 | 1 3/4 | M42 | 368 |
| 24 | 600 | 940 | 101.6 | 692.2 | 7 | 838.2 | 24 | 1 7/8 | 330 | 2 | M48 | 568 |
ANSI/ASME B16.5 Class 900 Blind Flange Dimensions
ANSI/ASME B16.5 Class 900 Blind Flange Dimensions
| Size in Inch | Size in mm | Outer Dia. | Flange Thickness | RF Dia. | RF Height | PCD | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | ||||||||
| 1/2 | 15 | 120 | 22.3 | 34.9 | 7 | 82.6 | 4 | 3/4 | 110 | 7/8 | M20 | 1.8 |
| 3/4 | 20 | 130 | 25.4 | 42.9 | 7 | 88.9 | 4 | 3/4 | 115 | 7/8 | M20 | 2.7 |
| 1 | 25 | 150 | 28.6 | 50.8 | 7 | 101.6 | 4 | 7/8 | 125 | 1 | M24 | 3.6 |
| 1 1/4 | 32 | 160 | 28.6 | 63.5 | 7 | 111.1 | 4 | 7/8 | 125 | 1 | M24 | 4.1 |
| 1 1/2 | 40 | 180 | 31.8 | 73 | 7 | 123.8 | 4 | 1 | 140 | 1 1/8 | M27 | 5.9 |
| 2 | 50 | 215 | 38.1 | 92.1 | 7 | 165.1 | 8 | 7/8 | 145 | 1 | M24 | 10.1 |
| 2 1/2 | 65 | 245 | 41.3 | 104.8 | 7 | 190.5 | 8 | 1 | 160 | 1 1/8 | M27 | 16 |
| 3 | 80 | 240 | 38.1 | 127 | 7 | 190.5 | 8 | 7/8 | 145 | 1 | M24 | 13 |
| 4 | 100 | 290 | 44.5 | 157.2 | 7 | 235 | 8 | 1 1/8 | 170 | 1 1/4 | M30 | 24.5 |
| 5 | 125 | 350 | 50.8 | 185.7 | 7 | 279.4 | 8 | 1 1/4 | 190 | 1 3/8 | M33 | 39.5 |
| 6 | 150 | 380 | 55.6 | 215.9 | 7 | 317.5 | 12 | 1 1/8 | 190 | 1 1/4 | M30 | 53 |
| 8 | 200 | 470 | 63.5 | 269.9 | 7 | 393.7 | 12 | 1 3/8 | 220 | 1 1/2 | M36 | 91 |
| 10 | 250 | 545 | 69.9 | 323.8 | 7 | 469.9 | 16 | 1 3/8 | 235 | 1 1/2 | M36 | 132 |
| 12 | 300 | 610 | 79.4 | 381 | 7 | 533.4 | 20 | 1 3/8 | 255 | 1 1/2 | M36 | 189 |
| 14 | 350 | 640 | 85.8 | 412.8 | 7 | 558.8 | 20 | 1 1/2 | 275 | 1 5/8 | M39 | 237 |
| 16 | 400 | 705 | 88.9 | 469.9 | 7 | 616 | 20 | 1 5/8 | 285 | 1 3/4 | M42 | 273 |
| 18 | 450 | 785 | 101.6 | 533.4 | 7 | 685.8 | 20 | 1 7/8 | 325 | 2 | M48 | 367 |
| 20 | 500 | 855 | 108 | 584.2 | 7 | 749.3 | 20 | 2 | 350 | 2 1/8 | M52 | 463 |
| 24 | 600 | 1040 | 139.7 | 692.2 | 7 | 901.7 | 20 | 2 1/2 | 440 | 2 5/8 | M64 | 875 |
ANSI/ASME B16.5 Class 1500 Blind Flange Dimensions
ANSI/ASME B16.5 Class 1500 Blind Flange Dimensions
| Size in Inch | Size in mm | Outer Dia. | Flange Thickness | RF Dia. | RF Height | PCD | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | ||||||||
| 1/2 | 15 | 120 | 22.3 | 34.9 | 7 | 82.6 | 4 | 3/4 | 110 | 7/8 | M20 | 1.8 |
| 3/4 | 20 | 130 | 25.4 | 42.9 | 7 | 88.9 | 4 | 3/4 | 115 | 7/8 | M20 | 2.7 |
| 1 | 25 | 150 | 28.6 | 50.8 | 7 | 101.6 | 4 | 7/8 | 125 | 1 | M24 | 3.7 |
| 1 1/4 | 32 | 160 | 28.6 | 63.5 | 7 | 111.1 | 4 | 7/8 | 125 | 1 | M24 | 4.1 |
| 1 1/2 | 40 | 180 | 31.8 | 73 | 7 | 123.8 | 4 | 1 | 140 | 1 1/8 | M27 | 5.9 |
| 2 | 50 | 215 | 38.1 | 92.1 | 7 | 165.1 | 8 | 7/8 | 145 | 1 | M24 | 10.1 |
| 2 1/2 | 65 | 245 | 41.3 | 104.8 | 7 | 190.5 | 8 | 1 | 160 | 1 1/8 | M27 | 15.9 |
| 3 | 80 | 265 | 47.7 | 127 | 7 | 203.2 | 8 | 1 1/8 | 180 | 1 1/4 | M30 | 21.8 |
| 4 | 100 | 310 | 54 | 157.2 | 7 | 241.3 | 8 | 1 1/4 | 195 | 1 3/8 | M33 | 33 |
| 5 | 125 | 375 | 73.1 | 185.7 | 7 | 292.1 | 8 | 1 1/2 | 250 | 1 5/8 | M39 | 64 |
| 6 | 150 | 395 | 82.6 | 215.9 | 7 | 317.5 | 12 | 1 3/8 | 260 | 1 1/2 | M36 | 75 |
| 8 | 200 | 485 | 92.1 | 269.9 | 7 | 393.7 | 12 | 1 5/8 | 290 | 1 3/4 | M42 | 136 |
| 10 | 250 | 585 | 108 | 323.8 | 7 | 482.6 | 12 | 1 7/8 | 335 | 2 | M48 | 232 |
| 12 | 300 | 675 | 123.9 | 381 | 7 | 571.5 | 16 | 2 | 375 | 2 1/8 | M52 | 314 |
| 14 | 350 | 750 | 133.4 | 412.8 | 7 | 635 | 16 | 2 1/4 | 405 | 2 3/8 | M56 | 443 |
| 16 | 400 | 825 | 146.1 | 469.9 | 7 | 704.8 | 16 | 2 1/2 | 445 | 2 5/8 | M64 | 591 |
| 18 | 450 | 915 | 162 | 533.4 | 7 | 774.7 | 16 | 2 3/4 | 495 | 2 7/8 | M72 | 795 |
| 20 | 500 | 985 | 177.8 | 584.2 | 7 | 831.8 | 16 | 3 | 540 | 3 1/8 | M76 | 1022 |
| 24 | 600 | 1170 | 203.2 | 692.2 | 7 | 990.6 | 16 | 3 1/2 | 615 | 3 5/8 | M90 | 1648 |
ANSI/ASME B16.5 Class 2500 Blind Flange Dimensions
ANSI/ASME B16.5 Class 2500 Blind Flange Dimensions
| Size in Inch | Size in mm | Outer Dia. | Flange Thickness | RF Dia. | RF Height | PCD | No of Bolts | Bolt Size UNC | RF Stud Length | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | ||||||||
| 1/2 | 15 | 135 | 30.2 | 34.9 | 7 | 88.9 | 4 | 3/4 | 120 | 7/8 | M20 | 3.2 |
| 3/4 | 20 | 140 | 31.8 | 42.9 | 7 | 95.2 | 4 | 3/4 | 125 | 7/8 | M20 | 3.7 |
| 1 | 25 | 160 | 35 | 50.8 | 7 | 108 | 4 | 7/8 | 140 | 1 | M24 | 5 |
| 1 1/4 | 32 | 185 | 38.1 | 63.5 | 7 | 130.2 | 4 | 1 | 150 | 1 1/8 | M27 | 7.8 |
| 1 1/2 | 40 | 205 | 44.5 | 73 | 7 | 146 | 4 | 1 1/8 | 170 | 1 1/4 | M30 | 10.5 |
| 2 | 50 | 235 | 50.9 | 92.1 | 7 | 171.4 | 8 | 1 | 180 | 1 1/8 | M27 | 18 |
| 2 1/2 | 65 | 265 | 57.2 | 104.8 | 7 | 196.8 | 8 | 1 1/8 | 195 | 1 1/4 | M30 | 25.5 |
| 3 | 80 | 305 | 66.7 | 127 | 7 | 228.6 | 8 | 1 1/4 | 220 | 1 3/8 | M33 | 39 |
| 4 | 100 | 355 | 76.2 | 157.2 | 7 | 273 | 8 | 1 1/2 | 255 | 1 5/8 | M39 | 61.5 |
| 5 | 125 | 420 | 92.1 | 185.7 | 7 | 323.8 | 8 | 1 3/4 | 300 | 1 7/8 | M45 | 102 |
| 6 | 150 | 485 | 108 | 215.9 | 7 | 368.3 | 8 | 2 | 345 | 2 1/8 | M52 | 157 |
| 8 | 200 | 550 | 127 | 269.9 | 7 | 438.2 | 12 | 2 | 380 | 2 1/8 | M52 | 241 |
| 10 | 250 | 675 | 165.1 | 323.8 | 7 | 539.8 | 12 | 2 1/2 | 490 | 2 5/8 | M64 | 470 |
| 12 | 300 | 760 | 184.2 | 381 | 7 | 619.1 | 12 | 2 3/4 | 540 | 2 7/8 | M72 | 575 |
Types of Blind Flanges
| ANSI B16.5 Blind Flanges | ANSI B16.5 Class 150 Blind Flanges |
| ANSI B16.5 Class 300 Blind Flanges | ANSI B16.5 Class 400 Blind Flanges |
| ANSI B16.5 Class 600 Blind Flanges | ANSI B16.5 Class 900 Blind Flanges |
| ANSI B16.5 Class 1500 Blind Flanges | ANSI B16.5 Class 2500 Blind Flanges |
| Industry Standard Class 75 Blind Flanges | Industry Standard Class 125 Light-weight Blind Flanges |
| Industry Standard Class 125/150 Blind Flanges | Industry Standard Class 150 Blind Flanges |
| Industry Standard Class 175 Blind Flanges | Industry Standard Class 250 Blind Flanges |
| Industry Standard Class 300 Blind Flanges | Industry Standard Class 350 Blind Flanges |
| Plate Blind Flanges | Ring Type Joint Blind Flanges |
| Drawing Blind Flanges | Square Blind Flanges |
| Nipo Blind Flanges | Reducing Blind Flanges |
| Forged Blind Flanges | ASME B16.47 Series A Blind Flanges |
| ASME B16.47 Series B Blind Flanges | ANSI B16.36 Orifice Blind Flanges |
| 150Lbs Blind Flanges | 300Lbs Blind Flanges |
| 600Lbs Blind Flanges | 900Lbs Blind Flanges |
| 1500Lbs Blind Flanges | 2500Lbs Blind Flanges |
| DIN Blind Flanges PN6-PN40 | Stainless Steel Blind Flanges |
Call +91 9833263204 or Click here to send enquiry for Blind Flanges
Blind Flanges Exporters & Suppliers
Exporting Blind Flanges to Countries
We are exporting Blind Flanges to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying Blind Flanges to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
