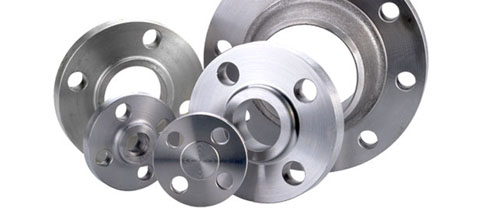

Industry Standard Flanges

Industry Standard Flanges

India’s Top Leading Industry Standard Flanges Manufacturer & Supplier

ASTM / ANSI/ ASME / DIN Industry Standard Flanges Exporter & Dealer in India

Industry Standard Slip on Flanges, Industry Standard Socket Welded Flanges, Industry Standard Threaded Flanges & Industry Standard Welding Neck Flanges Stockiest

Nakshatra Steel & Alloys has a magnificent collection of a wide variety of Industry Standard Flanges. These flanges are generally employed to connect complex mechanical pipe systems. Industry Standard Pipe Flanges seal and reinforce many industrial network systems.

There are many varieties based upon Industry standard flange sizes and Industry standard flange dimensions. Our Industry Standard Slip on Flanges are generally connected to the pipes or valves rigidly. They are slipped over the pipes, hence they are named so. Stress transfer is comprehensively facilitated by our Industry Standard Weld Neck Flanges. That is why they are deployed in high pressure applications.

To completely seal or stall the flow of liquid or gas to a vessel, Industry Standard Blind Flanges can be used with ease. Our Industry Standard Lap Joint Flanges are loose and can be easily rotated. By using them, one can easily connect or disconnect a pumping system. Industry Standard Threaded Flanges are extrinsic pipe fittings that do not require any sort of welding.

Here at Nakshatra Steel, we are regarded as an Industry Standard Flanges manufacturer, suppliers and stockists producing a wide variety of ASME Standard Flanges, ANSI Standard Flanges, BS Standard Flanges, API Standard Flanges, and DIN Standard Flanges. Please contact us today to request a free estimate on all types of industry standard flanges!

Stainless Steel Flanges
Industry Standard Flanges

Industry Standard Flanges

Class 125 - Welding Neck Flanges

Class 125

Nominal Size NPS Outside Diameter of Flange Thickness of Flange Length thru Hub Diameter of Hub at Base Diameter of Raised Face Diameter of Bolt Circle No. of Bolt Holes Diameter of Bolt Holes
A O C Y X R
26 in. 34.25 2.00 5.00 28.50 29.50 31.75 24 1.38
mm. 870.0 50.8 127.0 723.9 749.3 806.5 35.1
28 in. 36.50 2.06 5.06 30.75 31.50 34.00 28 1.38
  mm. 927.1 52.3 128.5 781.1 800.1 863.6 35.1
30 in. 38.75 2.13 5.13 32.75 33.75 36.00 28 1.38
mm. 984.3 54.1 130.3 831.9 857.3 814.4 35.1
32 in. 41.75 2.25 5.25 35.00 36.00 38.50 28 1.63
  mm. 1060.5 57.2 133.4 889.0 914.4 977.9 41.4
34 in. 43.75 2.31 5.31 37.00 38.00 34.25 32 1.63
mm.. 111.3 58.7 134.9 939.8 965.2 870.0 41.4
36 in. 46.00 2.38 5.38 39.25 40.25 42.75 32 1.63
  mm. 1168.4 60.5 136.7 997.0 1022.4 1085.9 41.4
38 in. 48.75 2.38 5.38 41.75 42.25 45.25 32 1.63
mm.. 1238.3 60.5 136.7 1060.5 1073.2 1149.4 41.4
40 in. 50.75 2050 5.50 43.75 44.25 47.25 36 1.63
  mm. 1289.1 63.5 139.7 1111.3 1124.0 1200.2 41.4
42 in. 53.00 2.63 5.63 46.00 47.00 49.50 36 1.63
mm.. 1346.2 66.8 143.0 1168.4 1193.8 1257.3 41.4
44 in. 55.25 2.63 5.63 48.00 49.00 51.75 40 1.63
  mm. 1403.4 66.8 143.0 1219.2 1244.6 1314.5 41.4
46 in. 57.25 2.68 5.68 50.00 51.00 53.75 40 1.63
  mm. 1454.2 68.1 144.3 1270.0 1295.4 1365.3 41.4
48 in. 59.50 2.75 5.75 52.25 53.50 56.00 44 1.63
  mm. 1511.3 69.9 146.1 1327.2 1358.9 1422.4 41.4
50 in. 61.75 2.75 5.75 54.25 55.50 58.25 44 1.88
  mm. 1568.5 69.9 146.1 1378.0 1409.7 1479.6 47.8
52 in. 64.00 2.88 5.88 56.50 57.50 60.50 44 1.88
  mm. 1625.6 73.2 149.4 1435.1 1460.5 1536.7 47.8
54 in. 66.25 3.00 6.00 58.75 59.75 62.75 44 1.88
  mm. 1682.8 76.2 152.4 1492.3 1517.7 1593.9 47.8
60 in. 73.00 3.13 6.13 65.25 66.00 69.25 52 1.88
  mm. 1854.2 79.5 155.7 1657.4 1676.4 1759.0 47.8

Class 125 - Slip-on & Blind Flanges

Class 125

Nominal Size NPS Outside Diameter of Flange Thickness of Flange Length thru Hub Diameter of Hub at Base Diameter of Raised Face Diameter of Bore Diameter of Bolt Circle Number of Bolt Holes Diameter of Bolt Holes
SOF BLIND
O C C Y X R B
26 in. 34.25 2.00 2.00 3.38 28.50 29.50 26.25 31.75 24 1.38
mm. 870.0 50.8 50.8 85.9 723.9 749.3 666.8 806.5 35.1
28 in. 36.50 2.06 2.12 3.44 30.75 31.50 28.25 34.00 28 1.38
mm. 927.1 52.3 53.8 87.4 781.1 800.1 717.6 863.6 35.1
30 in. 38.75 2.13 2.12 3.50 32.75 33.75 30.25 36.00 28 1.38
mm. 984.3 54.1 53.8 88.9 831.9 857.3 768.4 914.4 35.1
32 in. 41.75 2.25 2.25 3.63 35.00 36.00 32.25 38.50 28 1.63
mm. 1060.5 57.2 57.2 92.2 889.0 914.4 819.2 977.9 41.4
34 in. 43.75 2.31 2.31 3.68 37.00 38.00 34.25 40.50 32 1.63
mm. 1111.3 58.7 58.7 93.5 939.8 965.2 870.0 1028.7 41.4
36 in. 46.00 2.38 2.38 3.75 39.25 40.25 36.25 42.75 32 1.63
mm. 1168.4 60.5 60.5 95.3 997.0 1022.4 920.8 1085.9 41.4
38 in. 48.75 2.38 2.38 3.75 41.75 42.25 38.25 45.25 32 1.63
mm. 1238.3 60.5 60.5 95.3 1060.5 1073.2 971.6 1149.4 41.4
40 in. 50.75 2.50 2.50 3.88 43.75 44.25 40.25 47.25 36 1.63
mm. 1289.1 63.5 63.5 98.6 1111.3 1124.0 1022.4 1200.2 41.4
42 in. 53.00 2.63 2.62 4.00 46.00 47.00 42.25 49.50 36 1.63
mm. 1346.2 66.8 66.5 101.6 1168.4 1193.8 1073.2 1257.3 41.4
44 in. 55.25 2.63 2.62 4.00 48.00 49.00 44.25 51.75 40 1.63
mm. 1403.4 66.8 66.5 101.6 1219.2 1244.6 1124.0 1314.5 41.4
46 in. 57.25 2.68 2.69 4.06 50.00 51.00 46.25 53.75 40 1.63
mm. 1454.2 68.1 68.3 103.1 1270.0 1295.4 1174.8 1365.3 41.4
48 in. 59.50 2.75 2.75 4.13 52.25 53.50 48.25 56.00 44 1.63
mm. 1511.3 69.9 69.9 104.9 1327.2 1358.9 1225.6 1422.4 41.4
50 in. 61.75 2.75 2.75 4.13 54.25 55.50 50.25 58.25 44 1.88
mm. 1568.5 69.9 69.9 104.9 1378.0 1409.7 1276.4 1479.6 47.8
52 in. 64.00 2.88 2.88 4.25 56.50 57.50 52.25 60.50 44 1.88
mm. 1625.6 73.2 73.2 108.0 1435.1 1460.5 1327.2 1536.7 47.8
54 in. 66.25 3.00 3.00 4.38 58.75 59.75 54.25 62.75 44 1.88
mm. 1682.8 76.2 76.2 111.3 1492.3 1517.7 1378.0 1593.9 47.8
60 in. 73.00 3.13 3.12 4.50 65.25 66.00 60.25 69.25 52 1.88
mm. 1854.2 79.5 79.2 114.3 1657.4 1676.4 1530.4 1759.0 47.8
66 in. 80.00 3.38 3.38 4.88 71.50 73.00 66.25 76.00 52 1.88
mm. 2032.0 85.9 85.9 124.0 1816.1 1854.2 1682.8 1930.4 47.8
72 in. 86.50 3.50 3.50 5.00 78.50 79.50 72.25 82.50 60 1.88
mm. 2197.1 88.9 88.9 127.0 1993.9 2019.3 1835.2 2095.5 47.8
84 in. 99.75 3.88 4.06 5.38 90.50 92.50 84.25 95.50 64 2.13
mm. 2533.7 98.6 103.1 136.7 2298.7 2349.5 2140.0 2525.7 54.1
96 in. 113.25 4.25 4.56 5.75 102.75 105.50 96.25 108.50 68 2.38
mm. 2876.6 108.0 115.8 146.1 2609.9 2679.7 2444.8 2755.9 60.5

Class 175 - Welding Neck & Blind Flanges

Class 175

Nominal Size NPS Outside Diameter of Flange Thickness of Flange Length thru Hub Diameter of Hub at Base Diameter of Raised Face Diameter of Bolt Circle No. of Bolt Holes Diameter of Bolt Holes
WNF BLIND
A O C C Y X R
26 in. 31.50 1.38 1.81 3.38 27.63 29.00 29.88 28 0.88
mm. 800.1 35.1 46.0 85.9 701.8 736.6 759.0 22.4
28 in. 33.50 1.38 1.88 3.38 29.63 31.00 31.88 28 0.88
mm. 850.9 35.1 47.8 85.9 752.6 787.4 809.8 22.4
30 in. 35.75 1.38 2.00 3.63 31.88 33.25 34.13 36 0.88
mm. 908.0 35.1 50.8 92.2 809.8 844.5 866.9 22.4
32 in. 37.75 1.38 2.12 3.63 33.88 35.25 36.13 36 0.88
mm. 958.8 35.1 53.8 92.2 860.6 895.3 917.7 22.4
34 in. 40.25 1.50 2.25 3.75 35.88 38.38 38.38 36 1.00
mm. 1022.3 38.1 57.1 95.3 911.4 949.5 974.9 25.4
36 in. 42.25 1.50 2.38 3.75 37.88 39.38 40.38 36 1.00
mm. 1073.1 38.1 60.5 95.3 962.2 1000.3 1025.7 25.4
38 in. 44.25 1.75 2.50 4.13 39.88 41.38 42.38 36 1.00
mm. 1124.0 44.4 63.5 104.9 1013.0 1051.1 1076.5 25.4
40 in. 46.25 1.75 2.62 4.13 41.88 43.38 44.38 40 1.00
mm. 1174.8 44.4 66.5 104.9 1063.8 1101.9 1127.3 25.4
42 in. 49.00 2.00 2.75 4.50 44.13 45.75 46.88 40 1.13
mm. 1244.6 50.8 69.8 114.3 1120.9 1162.1 1190.8 28.7
44 in. 51.00 2.00 2.88 4.50 46.13 47.75 48.88 40 1.13
mm. 1295.4 50.8 73.2 114.3 1171.7 1212.8 1241.6 28.7
46 in. 53.00 2.00 3.00 4.50 48.13 49.75 50.88 40 1.13
mm. 1346.2 50.8 76.2 114.3 1222.5 1263.6 1292.4 28.7
48 in. 55.0 2.25 3.12 4.88 50.13 51.75 52.88 44 1.13
mm. 1397.0 57.1 79.2 124.0 1273.3 1314.4 1343.2 28.7
50 in. 57.00 2.25 3.25 4.88 52.13 53.75 54.88 44 1.13
mm. 1447.8 57.1 82.5 124.0 1324.1 1365.3 1394.3 28.7
52 in. 59.50 2.63 3.38 5.38 54.25 56.00 57.25 44 1.25
mm. 1511.3 66.8 85.9 136.7 1377.9 1422.4 1454.1 31.8
54 in. 61.5 2.63 3.50 5.38 56.25 58.00 59.25 44 1.25
mm. 1562.1 66.8 88.9 136.7 1428.8 1473.2 1504.9 31.8
60 in. 67.50 2.75 3.88 5.75 62.25 61.00 65.25 48 1.25
mm. 1714.5 69.8 98.6 146.0 1581.1 1625.6 1657.3 31.8
66 in. 73.50 3.13 4.25 6.13 68.50 70.00 71.25 56 1.25
mm. 1866.9 79.5 107.9 155.7 1739.9 1778.0 1809.8 31.8
72 in. 80.00 3.63 4.50 6.63 74.50 76.50 77.75 64 1.25
mm. 2032.0 92.2 114.3 168.4 1892.3 1943.1 1974.8 31.8

Class 175 - Slip-on & Blind Flanges

Class 175

Nominal Size NPS Outside diameter of Flange Diameter of Hub at Base Outside Diameter of Flange Diameter of Hub at Base Thickness of Flange Length thru Hub Diameter of Raised Face Diameter of Bolt Circle No. Of Bolt Holes Diameter of Bolt Holes
SOF BLIND
O X O X C C C Y R
I.D VESSELS O.D. VESSELS   I.D. VESS. O.D. VESS.     I.D. VESS. O.D. VESS.
26 in. 32.00 28.25 31.50 27.62 1.38 1.81 1.88 2.75 29.00 30.50 29.88 28 0.88
mm. 812.8 717.5 800.1 701.5 35.1 46.0 47.8 69.8 736.6 774.7 759.0 22.4
28 in. 34.00 30.25 33.50 29.62 1.38 1.94 2.00 2.75 31.00 32.50 31.88 28 0.88
mm. 863.6 768.3 850.9 752.3 35.1 49.3 50.8 69.8 787.4 825.5 809.8 22.4
30 in. 36.50 32.75 35.75 31.88 1.38 2.12 2.12 2.75 32.25 35.00 34.12 36 0.88
mm. 927.1 831.8 908.0 809.8 35.1 53.8 53.8 69.8 844.5 889.0 866.6 22.4
32 in. 38.50 34.75 37.75 33.88 1.38 2.25 2.25 2.75 35.25 37.00 36.12 36 0.88
mm. 977.9 882.6 958.8 860.6 35.1 57.1 57.1 69.8 895.3 939.8 817.4 22.4
34 in. 41.00 36.75 40.25 35.88 1.75 2.38 2.38 3.38 37.38 39.25 38.38 36 1.00
mm. 1041.4 933.4 1022.3 911.4 44.4 60.5 60.5 85.9 949.5 996.9 974.9 25.4
36 in. 43.00 38.75 42.25 37.88 1.75 2.50 2.50 3.38 39.38 41.25 40.38 36 1.00
mm. 1092.2 984.3 1073.1 962.2 44.4 63.5 63.5 85.9 1000.3 1047.8 1025.7 25.4
38 in. 45.25 41.00 44.25 39.88 2.00 2.62 2.62 3.75 41.38 43.50 42.38 36 1.00
mm. 1149.3 1041.4 1124.0 1013.0 50.8 66.5 66.5 95.3 1051.1 1104.9 1076.5 25.4
40 in. 47.25 43.00 46.25 41.88 2.00 2.75 2.75 4.00 43.38 45.50 44.38 40 1.00
mm. 1200.1 1092.2 1174.8 1063.8 50.8 69.8 69.8 101.6 1101.9 1155.7 1127.3 25.4
42 in. 49.75 45.00 49.00 44.12 2.38 2.88 2.88 4.38 45.75 47.75 46.88 40 1.12
mm. 1263.6 1143.0 1244.6 1120.6 60.5 73.2 73.2 111.3 1162.1 1212.8 1190.8 28.4
44 in. 51.75 47.00 51.00 46.12 2.38 3.00 3.00 4.38 47.75 49.75 48.88 40 1.12
mm. 1314.4 1193.8 1295.4 1171.4 60.5 76.2 76.2 111.3 1212.8 1263.6 1241.6 28.4
46 in. 54.00 49.25 53.00 48.12 2.38 3.12 3.12 4.62 49.75 52.00 50.88 40 1.12
mm. 1371.6 1250.9 1346.2 1222.2 60.5 79.2 79.2 117.3 1263.6 1320.8 1292.4 28.4
48 in. 56.00 51.25 55.00 50.12 2.62 3.25 3.38 4.88 51.75 54.00 52.88 44 1.12
mm. 1422.4 1301.8 1397.0 1273.0 66.5 82.5 85.9 124.0 1314.4 1371.6 1343.2 28.4
50 in. 58.25 53.50 57.00 52.12 2.62 3.38 3.38 4.88 53.75 56.50 54.88 44 1.12
mm. 1479.6 1358.9 1447.8 1323.8 66.5 85.9 85.9 124.0 1365.3 1435.1 1394.0 28.4
52 in. 60.75 55.50 59.50 54.25 3.00 3.50 3.62 5.38 56.00 58.50 57.25 44 1.25
mm. 1543.1 1409.7 1511.3 1377.9 76.2 88.9 91.9 136.7 1422.4 1485.9 1254.1 31.8
54 in. 63.00 57.75 61.50 56.25 3.00 3.62 3.62 5.38 58.00 60.75 59.25 44 1.25
mm. 1600.2 1466.8 1562.1 1428.8 76.2 91.9 91.9 136.7 1473.2 1543.1 1504.9 31.8
60 in. 69.00 63.75 67.50 62.25 3.12 4.00 4.00 5.88 64.00 66.75 65.25 48 1.25
mm. 1752.6 1619.3 1714.5 1581.1 79.2 101.6 101.6 149.4 1625.6 1695.4 1657.3 31.8
66 in. 75.00 69.75 73.50 68.50 4.00 4.38 4.38 6.88 70.00 72.75 71.25 56 1.25
mm. 1905.0 1771.6 1866.9 1739.9 101.6 111.3 111.3 174.8 1778.0 1847.8 1809.8 31.8
72 in. 81.00 75.75 80.00 74.50 5.00 5.00 5.00 8.00 76.50 78.75 77.75 64 1.25
mm. 2057.4 1924.1 2032.0 1892.3 127.0 127.0 127.0 203.2 1943.1 2000.3 1974.8 31.8

Class 350 - Welding Neck & Blind Flanges

Class 350

Nominal Size NPS Outside Diameter of Flange Thickness of Flange Length thru Hub Diameter of Hub at Base Diameter of Raised Face Diameter of Bolt Circle No. of Bolt Holes Diameter of Bolt Holes
WNF BLIND
A O C C Y X R
26 in. 32.75 2.50 2.50 5.00 27.88 29.50 30.62 28 1.12
mm. 831.8 63.5 63.5 127.0 708.2 749.3 777.7 28.4
28 in. 34.75 2.50 2.62 5.00 29.88 31.50 32.62 28 1.12
mm. 882.6 63.5 66.5 127.0 759.0 800.1 828.5 28.4
30 in. 37.00 2.62 2.88 5.25 32.12 33.75 34.88 32 1.12
mm. 939.8 66.5 73.2 133.3 815.8 857.3 886.0 28.4
32 in. 39.00 2.75 3.00 5.50 34.12 35.75 36.88 36 1.12
mm. 990.6 69.8 76.2 139.7 866.6 908.0 936.8 28.4
34 in. 41.00 2.88 3.12 5.75 36.12 37.75 38.88 40 1.12
mm. 1041.4 73.2 79.2 146.00 917.4 958.8 987.6 28.4
36 in. 43.75 3.12 3.38 6.12 38.50 40.25 41.50 40 1.25
mm. 1111.3 79.2 85.9 155.4 977.9 1022.3 1054.1 31.8
38 in. 45.75 3.12 3.50 6.12 40.50 42.25 43.50 40 1.25
mm. 1162.1 79.2 88.9 155.4 1028.7 1073.1 1104.9 31.8
40 in. 47.75 3.25 3.69 6.25 42.50 44.25 45.50 44 1.25
mm. 1212.8 82.5 93.7 158.8 1079.5 1124.0 1155.7 31.8
42 in. 50.00 3.50 3.88 6.50 44.75 46.50 47.75 48 1.25
mm. 1270.0 88.9 98.6 165.1 1136.6 1181.1 1212.8 31.8
44 in. 52.75 3.75 4.00 6.75 46.75 48.88 50.25 44 1.38
mm. 1339.8 95.3 101.6 171.4 1187.5 1241.6 1276.3 35.1
46 in. 54.75 4.25 4.25 7.25 48.75 50.88 52.25 48 1.38
mm. 1390.6 107.9 107.9 184.1 1238.3 1292.4 1327.1 35.1
48 in. 56.75 4.25 4.38 7.25 50.75 52.88 54.25 48 1.38
mm. 1441.4 107.9 111.3 184.1 1289.1 1343.2 1377.9 3.51

Class 350 - Slip-on & Blind Flanges

Class 350

Nominal Size NPS Outside Diameter of Flange Diameter of Hub at Base Outside Diameter of Flange Diameter of Hub at Base Thickness of Flange Length thru Hub Diameter of Raised Face Diameter of Bolt Circle Number of Bolt Holes Diameter of Bolt Holes
SOF BLIND
O X O X C C C Y R
  I.D. VESSELS O.D. VESSELS   I.D. VESS. O.D. VESS.     I.D. VESSEL O.D. VESSEL
26 in. 33.50 28.75 32.75 27.88 2.50 2.50 2.75 4.50 29.5 31.50 30.62 28 1.12
mm. 850.9 730.3 831.8 708.2 63.5 63.5 69.8 114.3 749.3 800.1 777.7 28.4
28 in. 35.50 30.75 34.75 29.88 2.50 2.62 2.88 4.50 31.50 33.50 32.62 28 1.12
mm. 901.7 781.0 882.6 759.0 63.5 66.5 73.2 114.3 800.1 850.9 828.5 28.4
30 in. 37.75 33.00 37.00 32.12 2.62 2.88 3.00 4.75 33.75 35.75 34.88 32 1.12
mm. 958.8 838.2 939.8 815.8 66.5 73.2 76.2 120.6 857.3 908.0 886.0 28.4
32 in. 39.75 35.00 39.00 34.12 2.75 3.00 3.25 5.00 35.75 37.75 36.88 36 1.12
mm. 1009.7 889.0 990.6 866.6 69.8 76.2 82.5 127.0 908.0 958.8 936.8 28.4
34 in. 42.25 37.50 41.00 36.12 2.88 3.12 3.38 5.12 37.75 40.25 38.88 40 1.12
mm. 1073.1 952.5 1041.4 917.4 73.2 79.2 85.9 130.0 958.8 1022.3 987.6 28.4
36 in. 44.75 39.50 43.75 38.50 3.12 3.38 3.62 5.62 40.25 42.50 41.50 40 1.12
mm. 1136.6 1003.3 1111.3 977.9 79.2 85.9 91.9 142.7 1022.3 1079.5 1054.1 28.4
38 in. 46.75 41.50 45.75 40.50 3.12 3.50 3.75 5.62 42.25 44.50 43.50 40 1.25
mm. 1187.5 1054.1 1162.1 1028.7 79.2 88.9 95.3 142.7 1073.1 1130.3 1104.9 31.8
40 in. 48.75 43.50 47.75 42.50 3.25 3.69 4.00 5.88 44.25 46.50 45.50 44 1.25
mm. 1238.3 1104.9 1212.8 1079.5 82.5 93.7 101.6 149.4 1124.0 1181.1 1155.7 31.8
42 in. 51.25 46.00 50.00 44.75 3.50 3.88 4.12 6.12 46.50 49.00 47.75 48 1.25
mm. 1301.8 1168.4 1270.0 1136.6 88.9 98.6 104.6 155.4 1181.1 1244.6 1212.8 31.8
44 in. 54.00 48.00 52.75 46.75 3.75 4.00 4.38 6.75 48.88 51.50 50.25 48 1.38
mm. 1371.6 1219.2 1339.8 1187.5 95.3 101.6 111.3 171.4 1241.6 1308.1 1276.3 35.1
46 in. 56.00 50.00 54.75 48.75 4.25 4.25 4.75 7.25 50.88 53.50 52.25 48 1.38
mm. 1422.4 1270.0 1390.6 1238.3 107.9 107.9 120.6 184.1 1292.4 1358.9 1327.1 35.1
48 in. 58.25 52.25 56.75 50.75 4.25 4.38 4.75 7.25 52.88 55.75 54.25 48 1.38
mm. 1479.6 1327.1 1441.4 1289.1 107.9 111.3 120.6 184.1 1343.2 1416.1 1377.9 35.1

Types Of Industry Standard Flanges

Industry Standard Pipe Flanges Industry Standard Slip on Flanges
Industry Standard Weld Neck Flanges Industry Standard Blind Flanges
Industry Standard Socket Weld Flanges Industry Standard Threaded Flanges
Industry Standard Lap Joint Flanges Industry Standard Orifice Flanges
Industry Standard Spectacle Blind Industry Standard Reducing Flanges
Industry Standard Forged Flanges Industry Standard Flanges Manufacturer
Industry Standard Flange Dimensions Industry Standard Flange Sizes
ASTM Standard Flanges API Industry Standard Flanges
DIN Industry Standard Flanges ASME / ANSI Standard Flanges

Call +91 9833263204 or Click here to send enquiry for Industry Standard Flanges

Industry Standard Flanges Exporters & Suppliers

Exporting Industry Standard Flanges to Countries

We are exporting Industry Standard Flanges to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.

Industries We Serve

We are supplying Industry Standard Flanges to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
