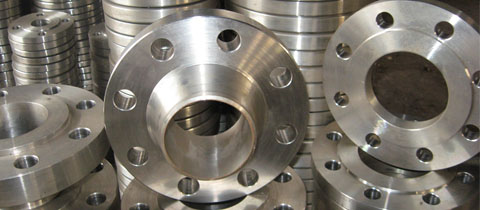

EN 1092-1 Flanges
EN 1092-1 Pipe Flanges, EN 1092-1 Raised Face Flanges, EN 1092-1 Weld Neck Flanges, EN 1092-1 Loose Flanges, EN 1092-1 Plate Flanges, EN 1092-1 Blind Flanges Manufacturer & Supplier
Stainless Steel EN 1092-1 Flanges, SS EN 1092-1 Flanges, Alloy Steel EN 1092-1 Flanges Manufacturer & Exporter
Nakshatra Steel & Alloys is an illustrious manufacturer and trader of EN 1092-1 Pipe Flanges. These devices are generally used to block or seal valves in mechanical devices. We being an eminent EN 1092-1 Flanges Manufacturer reassure exceptional quality. Flanges with variety of dimensions and shapes are mass produced in large quantities.
Our EN 1092-1 Slip on Flanges are slipped over a pipeline and then welded. These flanges are preferred to the weld neck flanges. EN 1092-1 Blind Flanges are deployed to seal a valve or vessel opening. EN 1092-1 Weld Neck Flanges comprise of a long neck and are used in high pressure applications.
The design of typical EN 1092-1 Threaded Flanges is same as the slip on flanges. But the only difference is, they can be attached to a pipe without welding. Our EN 1092-1 Socket Weld Flanges have huge number of utilizations in steam lines and hydraulics. To permanently isolate two pumping systems, using our EN 1092-1 Spectacle Blind Flanges is a better method.
When one needs to inspect or examine section of a pipe, our EN 1092-1 Lap Joint Flanges helps the work done with ease. Our EN 1092-1 Orifice Flanges are fixed between two flanges to become an Orifice Union. Excellent raw material is used to design our EN 1092-1 Alloy Steel Flanges and EN 1092-1 Nickel Alloy Flanges. Our team utilizes specialized techniques to accomplish EN 1092-1 Carbon Steel Flanges and EN 1092-1 Stainless Steel Flanges.
Depending upon EN 1092-1 Flange Dimensions and EN 1092-1 Flange sizes special care is taken while the transit.
EN 1092-1 Flanges Specifications:
| Size | : | DN15 - DN2000 |
| Process | : | Forged, Stamped |
| Dimension | : | EN 1092 |
| Type | : | Weld Neck Flanges(Raised Face), Threaded flanges, Loose Flanges, Plate Flanges, Blind Flanges |
| Pressure grade | : | PN6, PN10, PN16, PN25, PN40 |
Dimensions of EN 1092-1 Flanges:
| EN 1092-1 TYPE 01 PN6 PLATE FLANGE | |||||||||
| Rated Diameter |
Pipe | Flange | Screws | Weight (7,85 Kg/dm3) |
|||||
| d1 | k | D | b | d2 | Thread | Bolt holes | KG | ||
| 15 | 21,3 | 22,0 | 55 | 80 | 12 | 11 | M10 | 4 | 0,401 |
| 20 | 26,9 | 27,5 | 65 | 90 | 14 | 11 | M10 | 4 | 0,590 |
| 25 | 33,7 | 34,5 | 75 | 100 | 14 | 11 | M10 | 4 | 0,716 |
| 32 | 42,4 | 43,5 | 90 | 120 | 16 | 14 | M12 | 4 | 1,153 |
| 40 | 48,3 | 49,5 | 100 | 130 | 16 | 14 | M12 | 4 | 1,344 |
| 50 | 60,3 | 61,5 | 110 | 140 | 16 | 14 | M12 | 4 | 1,478 |
| 65 | 76,1 | 77,5 | 130 | 160 | 16 | 14 | M12 | 4 | 1,850 |
| 80 | 88,9 | 90,5 | 150 | 190 | 18 | 18 | M16 | 4 | 2,944 |
| 100 | 114,3 | 116,0 | 170 | 210 | 18 | 18 | M16 | 4 | 3,247 |
| 125 | 139,7 | 141,5 | 200 | 240 | 20 | 18 | M16 | 8 | 4,301 |
| 150 | 168,3 | 170,5 | 225 | 265 | 20 | 18 | M16 | 8 | 4,741 |
| 200 | 219,1 | 221,5 | 280 | 320 | 22 | 18 | M16 | 8 | 6,862 |
| 250 | 273,0 | 276,5 | 335 | 375 | 24 | 18 | M16 | 12 | 8,893 |
| 300 | 323,9 | 327,5 | 395 | 440 | 24 | 22 | M20 | 12 | 11,880 |
| 350 | 355,6 | 359,5 | 445 | 490 | 26 | 22 | M20 | 12 | 16,788 |
| 400 | 406,4 | 411,0 | 495 | 540 | 28 | 22 | M20 | 16 | 19,781 |
| 450 | 457,0 | 462,0 | 550 | 595 | 30 | 22 | M20 | 16 | 24,495 |
| 500 | 508,0 | 513,5 | 600 | 645 | 30 | 22 | M20 | 20 | 26,307 |
| 600 | 610,0 | 616,5 | 705 | 755 | 32 | 26 | M24 | 20 | 34,702 |
| 700 | 711,0 | 714,2 | 810 | 860 | 40 | 26 | M24 | 24 | 52,441 |
| 800 | 813,0 | 815,8 | 920 | 975 | 44 | 30 | M27 | 24 | 71,262 |
| 900 | 914,0 | 917,4 | 1020 | 1075 | 48 | 30 | M27 | 24 | 86,269 |
| 1000 | 1016,0 | 1019,0 | 1120 | 1175 | 52 | 30 | M27 | 28 | 101,340 |
| 1200 | 1220,0 | 1224,0 | 1340 | 1405 | 60 | 33 | M30 | 32 | 162,638 |
| 1400 | 1420,0 | 1424,0 | 1560 | 1630 | 72 | 36 | M33 | 36 | 257,772 |
| 1600 | 1620,0 | 1624,0 | 1760 | 1830 | 80 | 36 | M33 | 40 | 324,382 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 01 A / DN100 / PN6 / P245GH / HEAT NUMBER |
|||||||||
| EN 1092-1 TYPE 01 PN10 PLATE FLANGE | |||||||||
| Rated Diameter |
Pipe | Flange | Screws | Weight (7,85 Kg/dm3) |
|||||
| d1 | k | D | b | d2 | Thread | Bolt holes | KG | ||
| 15 | 21,3 | 22,0 | 55 | 80 | 12 | 11 | M10 | 4 | 0,401 |
| 20 | 26,9 | 27,5 | 65 | 90 | 14 | 11 | M10 | 4 | 0,590 |
| 25 | 33,7 | 34,5 | 75 | 100 | 14 | 11 | M10 | 4 | 0,716 |
| 32 | 42,4 | 43,5 | 90 | 120 | 16 | 14 | M12 | 4 | 1,153 |
| 40 | 48,3 | 49,5 | 100 | 130 | 16 | 14 | M12 | 4 | 1,344 |
| 50 | 60,3 | 61,5 | 110 | 140 | 16 | 14 | M12 | 4 | 1,478 |
| 65 | 76,1 | 77,5 | 130 | 160 | 16 | 14 | M12 | 4 | 1,850 |
| 80 | 88,9 | 90,5 | 150 | 190 | 18 | 18 | M16 | 4 | 2,944 |
| 100 | 114,3 | 116,0 | 170 | 210 | 18 | 18 | M16 | 4 | 3,247 |
| 125 | 139,7 | 141,5 | 200 | 240 | 20 | 18 | M16 | 8 | 4,301 |
| 150 | 168,3 | 170,5 | 225 | 265 | 20 | 18 | M16 | 8 | 4,741 |
| 200 | 219,1 | 221,5 | 295 | 340 | 24 | 22 | M20 | 8 | 9,244 |
| 250 | 273,0 | 276,5 | 350 | 395 | 26 | 22 | M20 | 12 | 11,788 |
| 300 | 323,9 | 327,5 | 400 | 445 | 26 | 22 | M20 | 12 | 13,578 |
| 350 | 355,6 | 359,5 | 460 | 505 | 30 | 22 | M20 | 16 | 21,766 |
| 400 | 406,4 | 411,0 | 515 | 565 | 32 | 26 | M24 | 16 | 27,436 |
| 450 | 457,2 | 462,0 | 565 | 615 | 36 | 26 | M24 | 20 | 33,470 |
| 500 | 508,0 | 513,5 | 620 | 670 | 38 | 26 | M24 | 20 | 40,103 |
| 600 | 610,0 | 616,5 | 725 | 780 | 42 | 30 | M27 | 20 | 54,297 |
| 700 | 711,0 | 714,2 | 840 | 895 | 50 | 30 | M27 | 24 | 82,777 |
| 800 | 813,0 | 815,8 | 950 | 1015 | 56 | 33 | M30 | 24 | 116,534 |
| 900 | 914,0 | 917,4 | 1050 | 1115 | 62 | 33 | M30 | 28 | 141,425 |
| 1000 | 1016,0 | 1019,0 | 1160 | 1230 | 70 | 36 | M33 | 28 | 188,561 |
| 1200 | 1219,0 | 1224,0 | 1380 | 1455 | 83 | 39 | M36 | 32 | 290,884 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 01 A / DN100 / PN10 / P245GH / HEAT NUMBER |
|||||||||
| EN 1092-1 TYPE 01 PN16 PLATE FLANGE | |||||||||
| Rated Diameter |
Pipe | Flange | Screws | Weight (7,85 Kg/dm3) |
|||||
| d1 | k | D | b | d2 | Thread | Bolt holes | KG | ||
| 10 | 17,2 | 18,0 | 60 | 90 | 14 | 14 | M12 | 4 | 0,602 |
| 15 | 21,3 | 22,0 | 65 | 95 | 14 | 14 | M12 | 4 | 0,668 |
| 20 | 26,9 | 27,5 | 75 | 105 | 16 | 14 | M12 | 4 | 0,933 |
| 25 | 33,7 | 34,5 | 85 | 115 | 16 | 14 | M12 | 4 | 1,106 |
| 32 | 42,4 | 43,5 | 100 | 140 | 18 | 18 | M16 | 4 | 1,816 |
| 40 | 48,3 | 49,5 | 110 | 150 | 18 | 18 | M16 | 4 | 2,075 |
| 50 | 60,3 | 61,5 | 125 | 165 | 20 | 18 | M16 | 4 | 2,723 |
| 65 | 76,1 | 77,5 | 145 | 185 | 20 | 18 | M16 | 4 | 3,310 |
| 80 | 88,9 | 90,5 | 160 | 200 | 20 | 18 | M16 | 8 | 3,592 |
| 100 | 114,3 | 116,0 | 180 | 220 | 22 | 18 | M16 | 8 | 4,375 |
| 125 | 139,7 | 141,5 | 210 | 250 | 22 | 18 | M16 | 8 | 5,394 |
| 150 | 168,3 | 170,5 | 240 | 285 | 24 | 22 | M20 | 8 | 7,123 |
| 200 | 219,1 | 221,5 | 295 | 340 | 26 | 22 | M20 | 12 | 9,705 |
| 250 | 273,0 | 276,5 | 355 | 405 | 29 | 26 | M24 | 12 | 14,164 |
| 300 | 323,9 | 327,5 | 410 | 460 | 32 | 26 | M24 | 12 | 18,928 |
| 350 | 355,6 | 359,0 | 470 | 520 | 35 | 26 | M24 | 16 | 28,118 |
| 400 | 406,4 | 411,0 | 525 | 580 | 38 | 30 | M27 | 16 | 35,754 |
| 450 | 457,0 | 462,0 | 585 | 640 | 42 | 30 | M27 | 20 | 45,992 |
| 500 | 508,0 | 513,5 | 650 | 715 | 46 | 33 | M30 | 20 | 63,832 |
| 600 | 610,0 | 616,5 | 770 | 840 | 55 | 36 | M33 | 20 | 101,285 |
| 700 | 711,0 | 714,2 | 840 | 910 | 63 | 36 | M33 | 24 | 111,103 |
| 800 | 813,0 | 815,8 | 950 | 1025 | 74 | 39 | M36 | 24 | 158,555 |
| 900 | 914,0 | 917,4 | 1050 | 1125 | 82 | 39 | M36 | 28 | 192,239 |
| 1000 | 1016,0 | 1019,0 | 1170 | 1255 | 90 | 42 | M39 | 28 | 269,554 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 01 A / DN100 / PN16 / P245GH / HEAT NUMBER |
|||||||||
| EN 1092-1 TYPE 01 PN25 PLATE FLANGE | |||||||||
| Rated Diameter |
Pipe | Flange | Screws | Weight (7,85 Kg/dm3) |
|||||
| d1 | k | D | b | d2 | Thread | Bolt holes | KG | ||
| 15 | 21,3 | 22,0 | 65 | 95 | 14 | 14 | M12 | 4 | 0,668 |
| 20 | 26,9 | 27,5 | 75 | 105 | 16 | 14 | M12 | 4 | 0,933 |
| 25 | 33,7 | 34,5 | 85 | 115 | 16 | 14 | M12 | 4 | 1,106 |
| 32 | 42,4 | 43,5 | 100 | 140 | 18 | 18 | M16 | 4 | 1,816 |
| 40 | 48,3 | 49,5 | 110 | 150 | 18 | 18 | M16 | 4 | 2,075 |
| 50 | 60,3 | 61,5 | 125 | 165 | 20 | 18 | M16 | 4 | 2,723 |
| 65 | 76,1 | 77,5 | 145 | 185 | 22 | 18 | M16 | 8 | 3,465 |
| 80 | 88,9 | 90,5 | 160 | 200 | 24 | 18 | M16 | 8 | 4,310 |
| 100 | 114,3 | 116,0 | 190 | 235 | 26 | 22 | M20 | 8 | 6,056 |
| 125 | 139,7 | 141,5 | 220 | 270 | 28 | 26 | M24 | 8 | 8,170 |
| 150 | 168,3 | 170,5 | 250 | 300 | 30 | 26 | M24 | 8 | 10,238 |
| 200 | 219,1 | 221,5 | 310 | 360 | 32 | 26 | M24 | 12 | 14,245 |
| 250 | 273,0 | 276,5 | 370 | 425 | 35 | 30 | M27 | 12 | 20,087 |
| 300 | 323,9 | 327,5 | 430 | 485 | 38 | 30 | M27 | 16 | 26,526 |
| 350 | 355,6 | 359,5 | 490 | 555 | 42 | 33 | M30 | 16 | 41,656 |
| 400 | 406,4 | 411,0 | 550 | 620 | 48 | 36 | M33 | 16 | 57,456 |
| 450 | 457,0 | 462,0 | 600 | 670 | 54 | 36 | M33 | 20 | 69,548 |
| 500 | 508,0 | 513,5 | 660 | 730 | 58 | 36 | M33 | 20 | 86,736 |
| 600 | 610,0 | 616,5 | 770 | 845 | 68 | 39 | M36 | 20 | 126,866 |
| 700 | 711,2 | 714,0 | 875 | 960 | 85 | 42 | M39 | 24 | 193,031 |
| 800 | 812,8 | 816,0 | 990 | 1085 | 95 | 48 | M45 | 24 | 266,311 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 01 A / DN100 / PN25 / P245GH / HEAT NUMBER |
|||||||||
| EN 1092-1 TYPE 01 PN40 PLATE FLANGE | |||||||||
| Rated Diameter |
Pipe | Flange | Screws | Weight (7,85 Kg/dm3) |
|||||
| d1 | k | D | b | d2 | Thread | Bolt holes | KG | ||
| 15 | 21,3 | 22,0 | 65 | 95 | 14 | 14 | M12 | 4 | 0,668 |
| 20 | 26,9 | 27,5 | 75 | 105 | 16 | 14 | M12 | 4 | 0,933 |
| 25 | 33,7 | 34,5 | 85 | 115 | 16 | 14 | M12 | 4 | 1,106 |
| 32 | 42,4 | 43,5 | 100 | 140 | 18 | 18 | M16 | 4 | 1,816 |
| 40 | 48,3 | 49,5 | 110 | 150 | 18 | 18 | M16 | 4 | 2,075 |
| 50 | 60,3 | 61,5 | 125 | 165 | 20 | 18 | M16 | 4 | 2,723 |
| 65 | 76,1 | 77,5 | 145 | 185 | 22 | 18 | M16 | 8 | 3,465 |
| 80 | 88,9 | 90,5 | 160 | 200 | 24 | 18 | M16 | 8 | 4,310 |
| 100 | 114,3 | 116,0 | 190 | 235 | 26 | 22 | M20 | 8 | 6,056 |
| 125 | 139,7 | 141,5 | 220 | 270 | 28 | 26 | M24 | 8 | 8,170 |
| 150 | 168,3 | 170,5 | 250 | 300 | 30 | 26 | M24 | 8 | 10,238 |
| 200 | 219,1 | 221,5 | 320 | 375 | 36 | 30 | M27 | 12 | 17,871 |
| 250 | 273,0 | 276,5 | 385 | 450 | 42 | 33 | M30 | 12 | 29,166 |
| 300 | 323,9 | 327,5 | 450 | 515 | 52 | 33 | M30 | 16 | 44,921 |
| 350 | 355,6 | 359,5 | 510 | 580 | 58 | 36 | M33 | 16 | 66,460 |
| 400 | 406,4 | 411,0 | 585 | 660 | 65 | 39 | M36 | 16 | 96,822 |
1. SURFACE FINISH FACING TYPES A, B1, B2 etc |
|||||||||
2. FLANGE MARKING: LOGO EN 1092-1 / 01 A / DN100 / PN40 / P245GH / HEAT NUMBER |
|||||||||

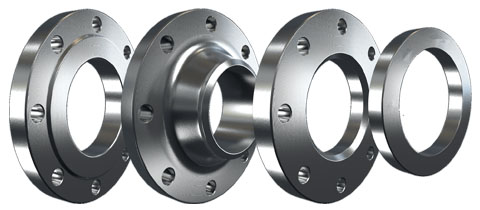

Types of EN-1092-1 Flanges
| EN1092-1 Forged Flanges | EN1092-1 High Hub Blinds Flanges |
| EN1092-1 Blind Flanges | EN1092-1 Spectacle Blinds Flanges |
| EN1092-1 Reducing Flanges | EN1092-1 Loose Flanges |
| EN1092-1 Orifice Flanges | EN1092-1 RTJ Flanges |
| EN1092-1 Socket Weld Flanges | EN1092-1 Screwed Flanges |
| EN1092-1 Slip On Flanges | EN1092-1 Weld Neck Flanges |
| EN1092-1 Flat Flanges | EN1092-1 Flange Facing Type & Finish |
| EN1092-1 Lapped Joint Flanges | EN1092-1 SORF Flanges |
| EN1092-1 SWRF Flanges | EN1092-1 Groove & Tongue Flanges |
| EN1092-1 Square Flanges | EN1092-1 Long Neck Weld Flanges |
| EN1092-1 Threaded Flanges | EN1092-1 Spades Ring Spacers Flanges |
| EN1092-1 Weld Neck Flanges Series A or B | EN1092-1 Ring Type Joint Flanges |
| EN1092-1 WNRF Flanges | EN1092-1 Weldo / Nipo Flanges |
| EN 1092-1 Flange | EN 1092-1 Face Flanges |
| ANSI B16.5 EN 1092-1 Flanges | EN 1092-1 Flange Dimensions |
| EN 1092-1 EN 1092-1 Flanges | ANSI B16.5 Class 150 EN 1092-1 Flanges |
| Stainless Steel EN 1092-1 Flanges Suppliers | SS EN 1092-1 Flange |
| EN 1092-1 Flanges Dealer | ASME B16.47 Series A and B EN 1092-1 Flanges Exporter |
| ANSI B16.5 class 150 EN 1092-1 Flange Stockholder | ANSI 150 EN 1092-1 Flange Distributors |
| Carbon Steel EN 1092-1 Flange | High Quality EN 1092-1 Flanges Manufacturer |
| ASTM A182 Stainless Steel EN 1092-1 Flange | Duplex Steel EN 1092-1 Flange |
| Super Duplex Steel EN 1092-1 Flange | Copper Nickel EN 1092-1 Pipe Flanges |
| High Nickel Alloy EN 1092-1 Flanges | Hastelloy EN 1092-1 Flanges Stockist |
| Titanium ASME B16.47 Series A and B EN 1092-1 Flanges | Inconel EN 1092-1 Flanges |
| EN1092-1 Expander Flanges |
Call +91 9833263204 or Click here to send enquiry for EN 1092-1 Flanges
EN 1092-1 Flanges Exporters & Suppliers
Exporting EN 1092-1 Flanges to Countries
We are exporting EN 1092-1 Flanges to Kuwait, Yemen, Slovakia, Iran, Angola, Portugal, Romania, Serbia, China, Saudi Arabia, Afghanistan, Croatia, Lithuania, Poland, Zimbabwe, Peru, Macau, Japan, Philippines, Singapore, Mexico, Mongolia, Hong Kong, Norway, Israel, Bangladesh, Bhutan, Kenya, South Korea, Switzerland, Thailand, Gabon, Italy, Mexico, Sri Lanka, Netherlands, Turkey, Czech Republic, Tibet, Australia, Morocco, Nepal, Denmark, Iran, United Arab Emirates, Jordan, Belarus, Russia, Chile, Ukraine, Oman, Kazakhstan, Taiwan, Argentina, Finland, Chile, Ghana, Azerbaijan, Brazil, Ireland, Nigeria, Indonesia, Ecuador, Lebanon, Gambia, Sweden, Bulgaria, Hungary, India, United Kingdom, Vietnam, Greece, United States, France, Spain, Libya, Pakistan, Canada, Namibia, Poland, Bahrain, Bolivia, Venezuela, Qatar, Iraq, Austria, Belgium, Nigeria, Germany, South Africa, Malaysia, Egypt, Algeria, Costa Rica, Estonia, Trinidad & Tobago,Tunisia, Puerto Rico, New Zealand, Colombia. We can export almost to any country.
Industries We Serve
We are supplying EN 1092-1 Flanges to Chemicals, Petrochemicals, Oil & Natural Gas Organization, Fats, Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Automation, Paints, Steel Industries, etc.
