Socket Weld 45 Degree Elbow

Socket Weld 45 Degree Elbow

ASME B 16.11 / ANSI B16.9 Socket Weld 45 Degree Elbow, MSS SP-43 Forged Socket Weld 45 Degree Elbow, BS3799 Threaded Socket Weld 45 Degree Elbow Manufacturer & Supplier in Mumbai, India

45 Degree Socket Weld Elbow Exporter, ASTM A182 High Pressure Socket Weld 45 Degree Elbow, Socket Weld 45 Deg. Short Radius Elbow, 45 Deg. Socket Weld Long Radius Elbow Dealers & Exporters

At Nakshatra Steel, we are one of the top Manufacturer, Stockists & Supplier of quality of Socket Weld 45 Degree Elbow to the consumers. We offer Socket Weld 45 Degree Elbows come in two types; short radius elbow and long radius elbow. These Socket Weld 45 Degree Elbows can be installed in the recessed area of a valve, fitting or flange.

Nakshatra Steel is an ISO certified company, having more than 20 years of experience in producing and delivering optimum quality Forged Socket Weld 45 Degree Elbow fittings available in customized sizes and specifications to our esteemed clients.

Our ANSI B16.11 45° Socket Weld Elbow is being manufactured from highest quality raw material in compliance with international quality standards and measures. These Threaded Socket Weld 45° Elbow features corrosion resistance, sturdy and durable available in customized size, specifications and dimensions to meet all the expectation of our esteemed clients.

Our offered range of ASME B16.11 Socket Weld 45 Degree Elbow is available in all materials Stainless Steel Socket Weld 45 Deg Elbow, Carbon Steel / Alloy Steel Socket Weld 45 Degree Elbow & High Nickel Alloys Socket Weld 45 Degree Elbow to cater to growing demands. Call us now to request a free quote, we are here to help you!

ASTM A182 Stainless Steel Socket Weld 45 Degree Elbow, Alloy Steel Socket Weld 45 Degree Elbow, Carbon Steel 45 Degree Elbow, Nickel Alloy 45 Degree Elbow Dealer & Wholesaler in India.

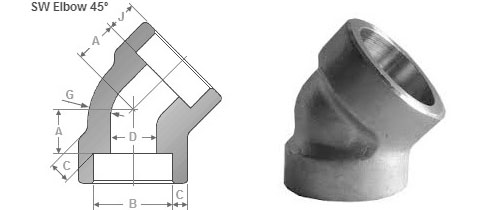

Socket Weld 45 Degree Elbow

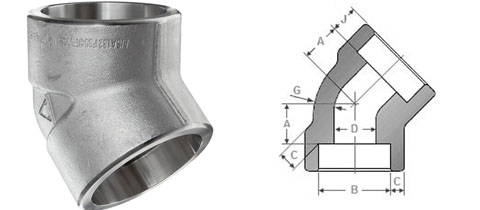

Socket Weld 45 Degree

Specifications for Socket Weld 45 Degree Elbow

Specifications : ASTM A182, ASTM SA182
Dimension : ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799
Size : 1/8" NB TO 4" NB
Class : 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Form : 45 Deg Elbow, 90 Deg Elbow, Any required deg.
Type : Socket Weld (S/W) & Screwed (SCRD)
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Material & Grades of Socket Weld 45 Degree Elbow

Stainless Steel 45 Degree Elbow Socket Weld Fittings
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L
Carbon Steel 45 Degree Elbow Socket Weld Fittings
ASTM / ASME A 234 WPB, WPC. ASTM / ASME A 860 WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Alloy Steel 45 Degree Elbow Socket Weld Fittings
ASTM / ASME A 182, ASTM / ASME A 335 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Nickel Alloy 45 Degree Elbow Socket Weld Fittings
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
Duplex & Super Duplex Steel 45 Degree Elbow Socket Weld Fittings
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Copper Alloy Steel 45 Degree Elbow Socket Weld Fittings
ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

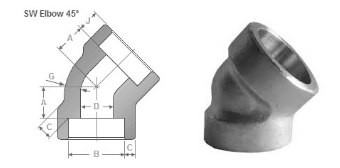

ANSI 16.9 Socket Weld 45 Degree Elbow Dimensions

Socket Weld 45 Degree Elbow Dimensions
NPS SocketBore DepthSocket Borediameter Socketwall thickness Bodywall thickness Center to bottomof socketA
B J D C G 45°
1/2 21.95
21.70		 10 16.6
15		 4.65
4.10		 3.75 11.5
3/4 27.30
27.05		 13 21.7
20.2		 4.90
4.25		 3.90 12.5
1 34.05
33.80		 13 27.4
25.9		 5.70
5.00		 4.55 14
1¼ 42.80
42.55		 13 35.8
34.3		 6.05
5.30		 4.85 17
1½ 48.90
48.65		 13 41.7
40.1		 6.35
5.55		 5.10 21
2 61.35
61.10		 16 53.5
51.7		 6.95
6.05		 5.55 25
2½ 74.20
73.80		 16 64.2
61.2		 8.75
7.65		 7.00 29
3 90.15
89.80		 16 79.5
46.4		 9.50
8.30		 7.60 31.5
4 115.80
115.45		 19 103.8
100.7		 10.70
9.35		 8.55 41.5

Dimensions Socket Weld Elbows - NPS 1/2 to 2 - 45 Degree - 6000 LBS - ASME B16.11

NPS SocketBore DepthSocket Borediameter Socketwall thickness Bodywall thickness Center to bottomof socketA
B J D C G 45°
1/2 21.95
21.70		 10 12.5
11		 5.95
5.20		 4.80 12.5
3/4 27.30
27.05		 13 16.3
14.8		 6.95
6.05		 5.55 14.5
1 34.05
33.80		 13 21.5
19.9		 7.90
6.95		 6.35 17
1¼ 42.80
42.55		 13 30.2
28.7		 7.90
6.95		 6.35 21
1½ 48.90
48.65		 13 34.7
33.2		 8.90
7.80		 7.15 25
2 61.35
61.10		 16 43.6
42.1		 10.90
9.50		 8.75 29

Types of Socket Weld 45 Degree Elbow

Forged Socket weld Elbow 45 Degree Forged Socket weld Long Radius 45 Degree Elbows
150 lb. Socket Weld Fittings Pipe Elbow Socket weld 45 Degree Short Radius Elbow
ASME B16.11 45 deg Socket weld Elbow 45 Degree Elbow 3000LB Socket Weld
Stainless Steel 45 Degree Pipe Elbow Suppliers SS 45 Deg. Forged Elbows
ANSI B16.11 45 Degree Forged Elbow Dealer BS 3799 Forged 45 Degree Elbow Exporter
Forged Socket weld 45 Deg Elbow Stockholder Socket weld 45 Degree Pipe Elbow Distributors
Carbon Steel Socket weld 45 Degree Elbow High Quality Socket weld 45 Deg Elbow Manufacturer
ASTM A182 Socket weld Stainless Steel 45 Deg Elbows Duplex Steel 45 Degree Socket weld Pipe Elbow
Super Duplex Steel 45 Deg Elbow Copper Nickel Socket weld 45 Deg Elbow
High Nickel Alloy 45 Degree Forged Socket weld Elbow Hastelloy Socket weld 45 Degree Pipe Elbow Stockist
Titanium 45 Degree Socket weld Elbow Inconel Socket weld 45 Degree Pipe Elbow
